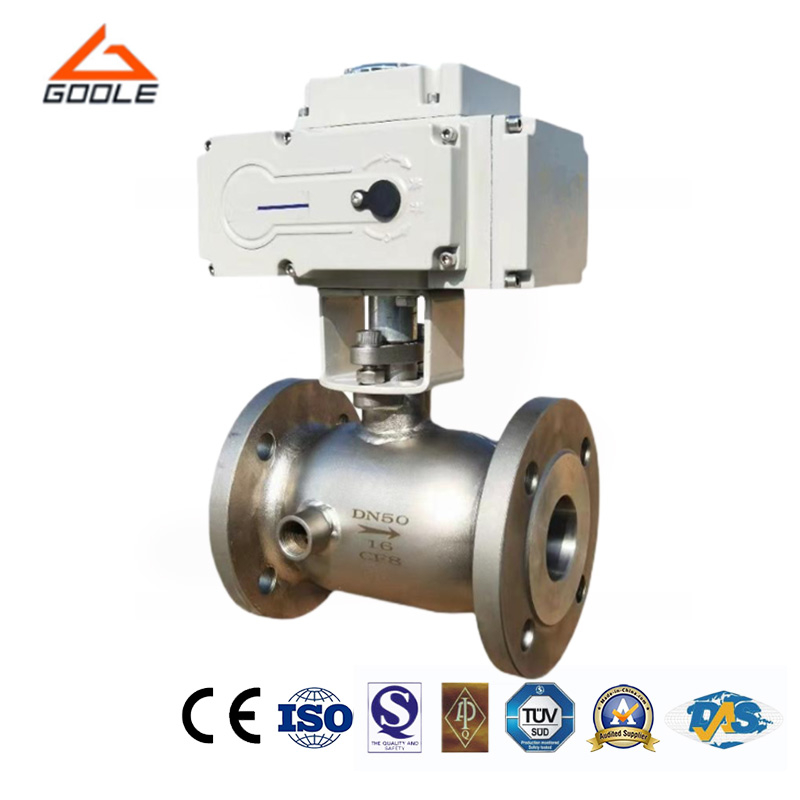

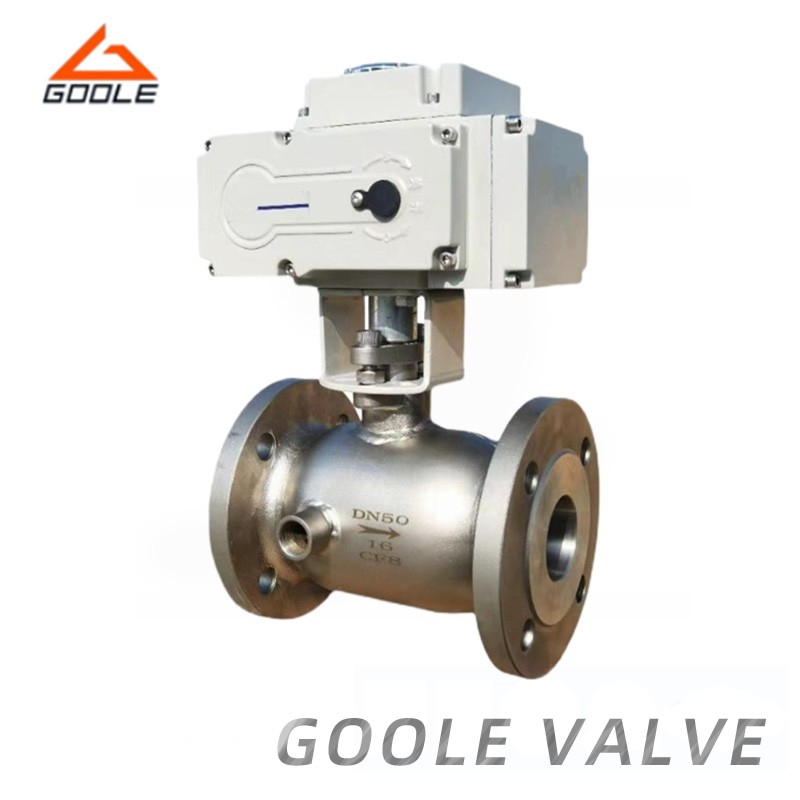

Electrically integrated flange-insulated sleeve ball valve is a special type of insulated ball valve, belonging to the same category as flanged gate valves. The difference lies in its closing part, which is a sphere that rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used for cutting off, distributing, and changing the direction of media flow in pipelines. Double-piece and triple-piece ball valves are new types of valves that have been widely used in recent years. These valves should typically be installed horizontally in pipelines.
● Small Fluid Resistance: The fluid resistance is low, and its resistance coefficient is equal to that of the same length pipe section.
●Tight and Reliable: At present, plastic is widely used as the sealing surface material of ball valve, with good sealing performance, and also widely used in vacuum system.
● Easy Operation: Quick open and close, from fully open to fully closed only need to rotate 90 degrees, convenient for remote control.
● Easy Maintenance: The ball valve structure is simple, the sealing ring can be moved, easy to disassemble and install.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
Electric actuators drive the ball to rotate, thereby achieving the flow or cutoff of the medium. Upon receiving a signal, the internal piston or diaphragm generates thrust, driving the ball to rotate within a 90-degree range. When the ball rotates perpendicular to the pipeline axis, the valve closes, and the medium is cut off; when the ball rotates parallel to the pipeline axis, the valve opens, allowing the medium to flow. Additionally, the thermal insulation sleeve design effectively prevents the medium from freezing or vaporizing due to temperature changes, ensuring stable valve operation.
Our electric integrated insulated sleeve ball valve is made from high-quality materials, ensuring its excellent durability and reliability. Its unique design allows the valve to maintain stable performance even under extreme temperature conditions, effectively preventing the medium from solidifying or vaporizing due to temperature changes, thus ensuring smooth operation of the production line. The valve is equipped with an integrated electric actuator, making it easy and quick to operate, significantly improving work efficiency. Both manual and automatic control can be easily achieved to meet the needs of different users. By choosing our electric integrated insulated sleeve ball valve, you will obtain an ideal valve product with superior performance, simple operation, and energy-saving environmental protection.
