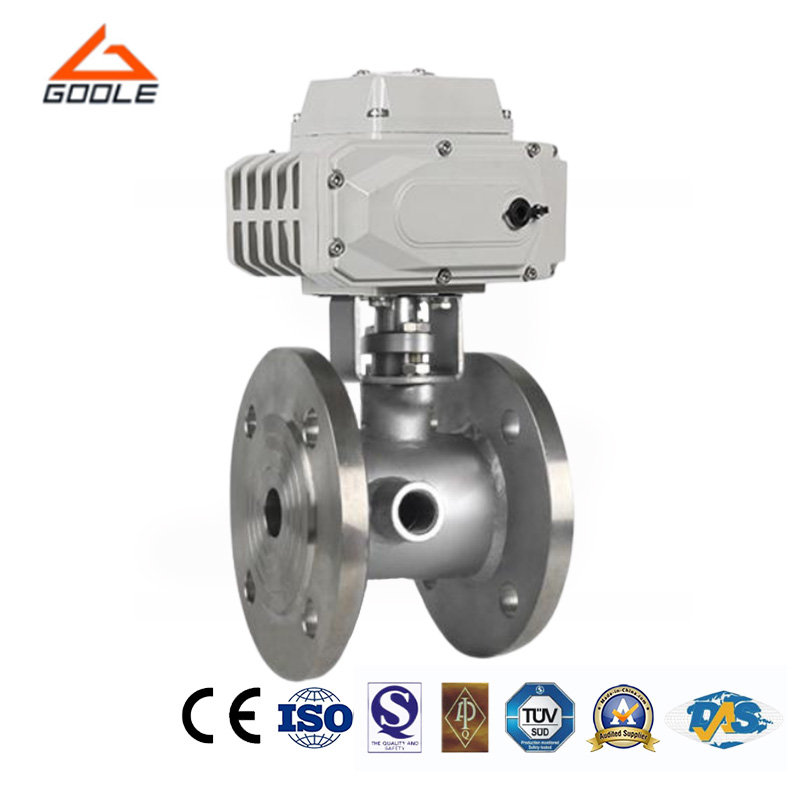

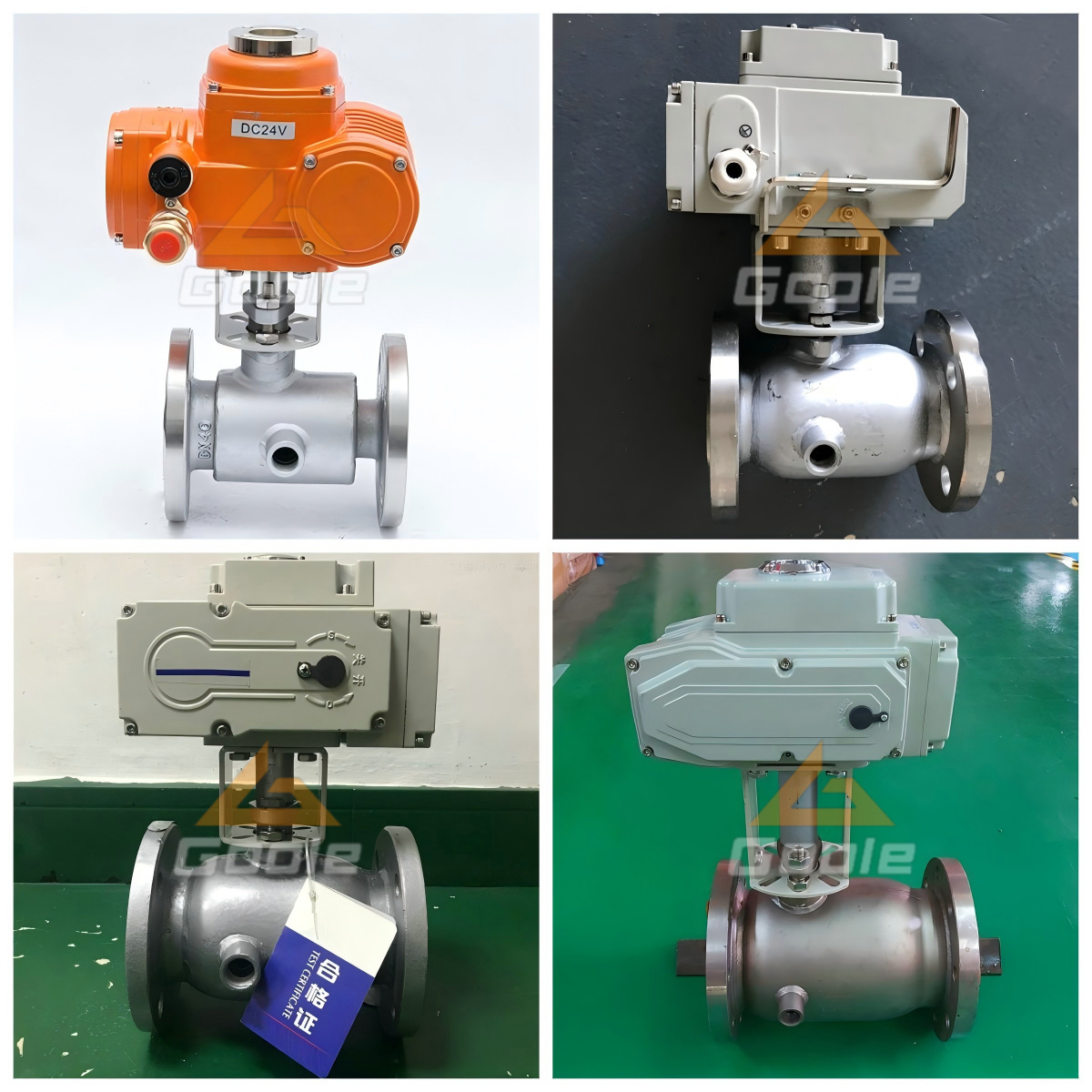

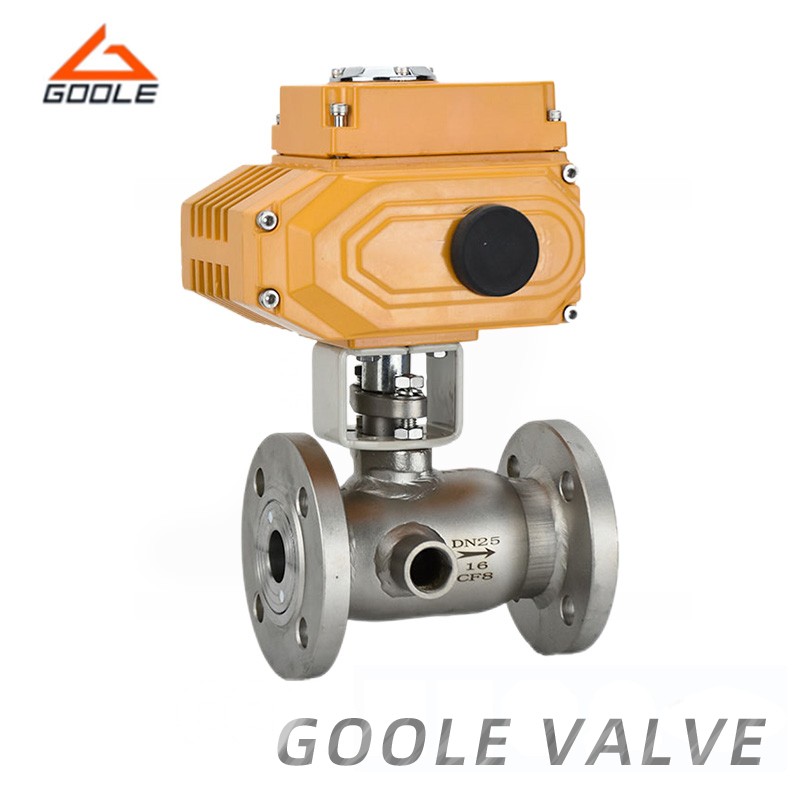

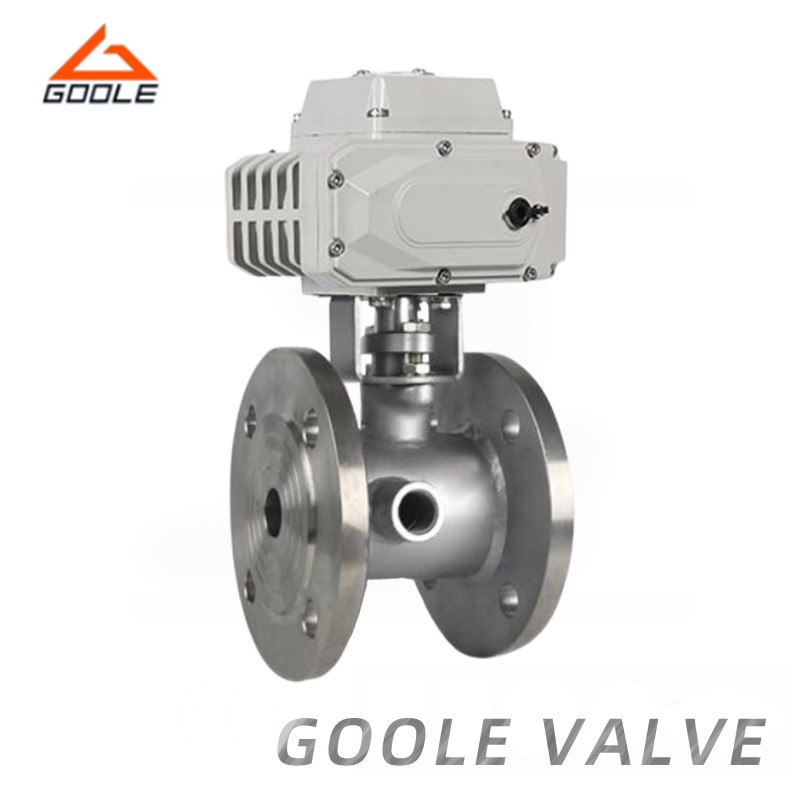

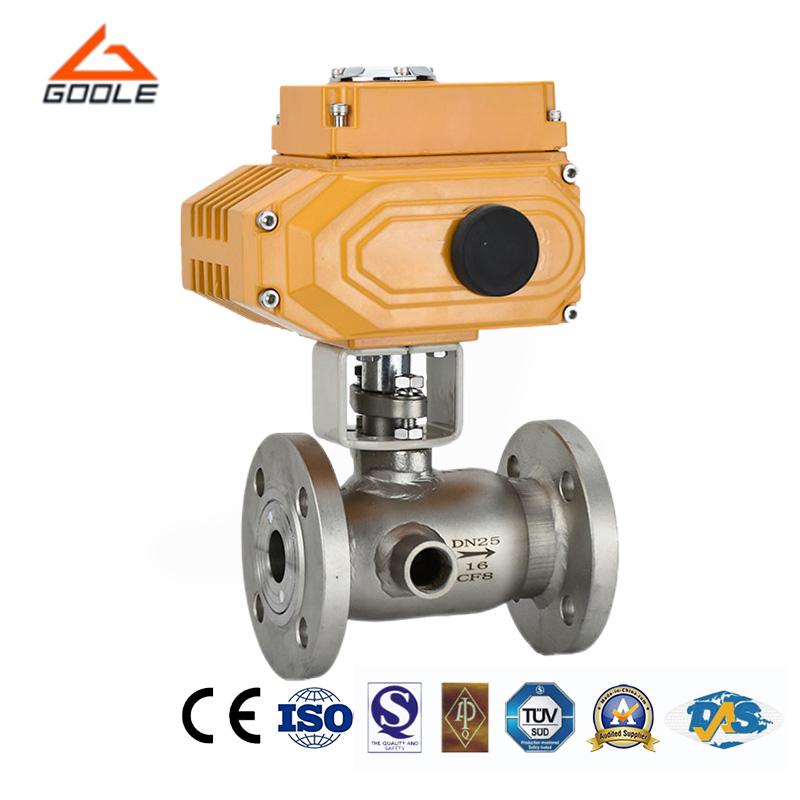

Electric integrated flange insulated sleeve ball valve is a unique insulated ball valve, belonging to the same category as flange gate valve. Its uniqueness lies in the closing mechanism, which achieves opening and closing through a sphere rotating around the centerline of the valve body. Ball valves are mainly used in pipeline systems to cut off, distribute, and change the direction of medium flow. In recent years, two-piece and three piece ball valves have been widely adopted as new types of valves. These valves are usually recommended to be installed horizontally inside the pipeline.
● Small Fluid Resistance:The fluid resistance is low, and its resistance coefficient is equal to the resistance coefficient of the same length of pipe section.
●Tight and Reliable: Currently, plastic is widely used as the sealing surface material for ball valves, demonstrating excellent sealing performance and also widely used in vacuum systems.
● Easy Operation: The ball valve can be quickly opened and closed. It only needs to rotate 90 degrees from fully open to fully closed for remote control.
● Easy Maintenance: The ball valve has a simple structure, a movable sealing ring, and is easy to disassemble and install.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The electric actuator drives the ball to rotate, achieving the flow or cutting off of the medium. Once a signal is received, the internal piston or diaphragm will generate thrust, causing the ball to rotate within a 90 degree range. When the ball rotates perpendicular to the pipeline axis, the valve closes and the medium is cut off; When the ball rotates parallel to the axis of the pipeline, the valve opens, allowing the medium to flow. In addition, the design of the insulation sleeve effectively prevents the medium from freezing or vaporizing due to temperature changes, ensuring the stable operation of the valve.
Our electric integrated insulated ball valve is made of high-quality materials to ensure its excellent durability and reliability. Its unique design ensures stable performance even under extreme temperature conditions, effectively preventing the medium from solidifying or vaporizing due to temperature changes, thereby ensuring smooth operation of the production line. The valve is equipped with an integrated electric actuator, making operation simple and fast, significantly improving work efficiency. Both manual and automatic control can be easily implemented to meet the needs of different users. By choosing our electric integrated insulated ball valve, you will receive an ideal valve product with superior performance, simple operation, and energy conservation and environmental protection.
