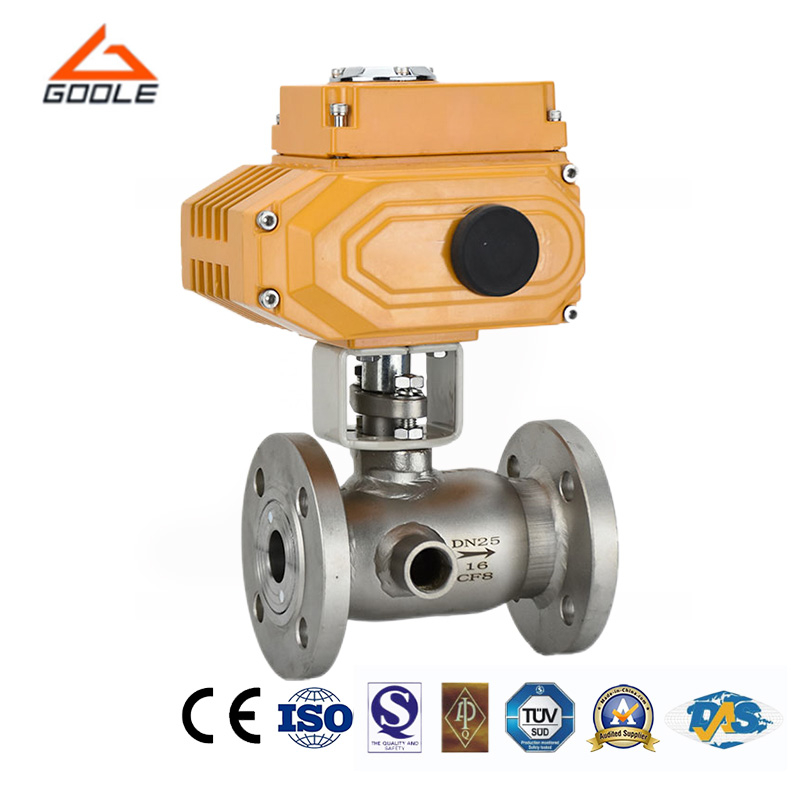

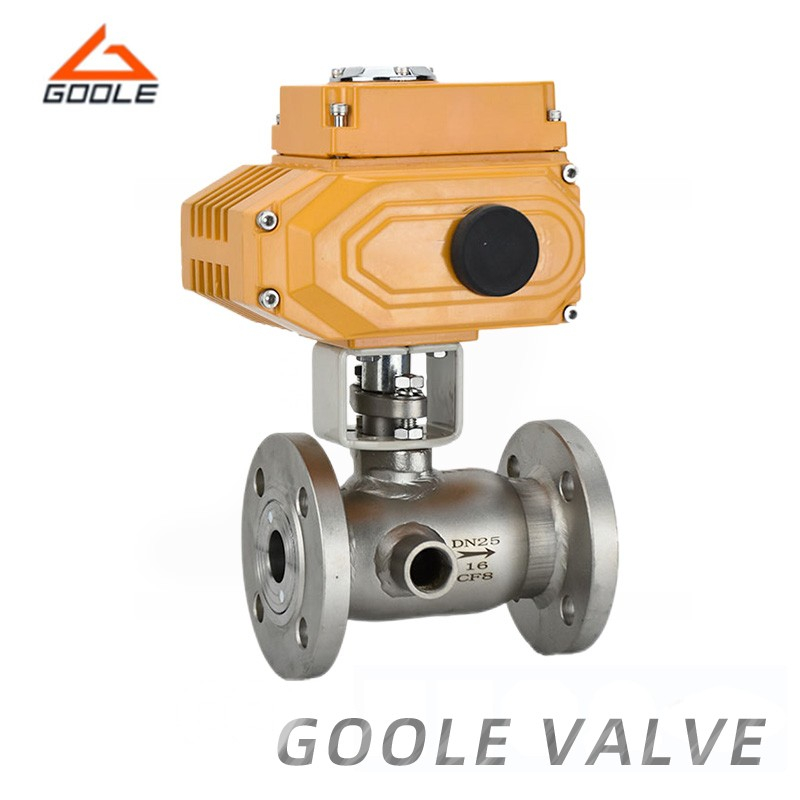

Electric integrated flange insulating ball valve is a unique insulating ball valve, belonging to the same category as flanged gate valves. Its uniqueness lies in the closing mechanism, which achieves opening and closing through the rotation of the ball around the centerline of the valve body. The ball valve is mainly used in pipeline systems for cutting off, distributing, and changing the direction of the medium flow. In recent years, two-piece and three-piece ball valves have been widely adopted as new types of valves. These valves are typically recommended for horizontal installation inside pipelines.
● Low Fluid Resistance:The fluid resistance is low, and its resistance coefficient is equal to the resistance coefficient of the same length of pipe section.
● Tight and Reliable: Currently, plastic is widely used as the sealing surface material for ball valves, demonstrating excellent sealing performance and also widely used in vacuum systems.
● Easy to Operate: The ball valve can be quickly opened and closed. It only needs to rotate 90 degrees from fully open to fully closed for remote control.
● Easy Maintenance: The ball valve has a simple structure, a movable sealing ring, and is easy to disassemble and install.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The electric actuator drives the ball to rotate, achieving the flow or cutoff of the medium. Upon receiving a signal, the internal piston or diaphragm generates thrust, causing the ball to rotate within a 90-degree range. When the ball rotates perpendicular to the pipeline axis, the valve closes, and the medium is cut off; when the ball rotates parallel to the pipeline axis, the valve opens, allowing the medium to flow. Additionally, the design of the insulation sleeve effectively prevents the medium from freezing or vaporizing due to temperature changes, ensuring stable valve operation.
Our electric integrated insulated ball valve is made from high-quality materials to ensure its excellent durability and reliability. Its unique design guarantees stable performance even under extreme temperature conditions, effectively preventing the medium from freezing or vaporizing due to temperature differences, thus ensuring smooth operation of the production line. The valve is equipped with an integrated electric actuator for easy and quick operation, significantly improving work efficiency. Both manual and automatic control can be easily achieved, meeting the needs of different users. By choosing our electric integrated insulated ball valve, you will receive a high-performance, easy-to-operate, energy-saving, and environmentally friendly ideal valve product.
