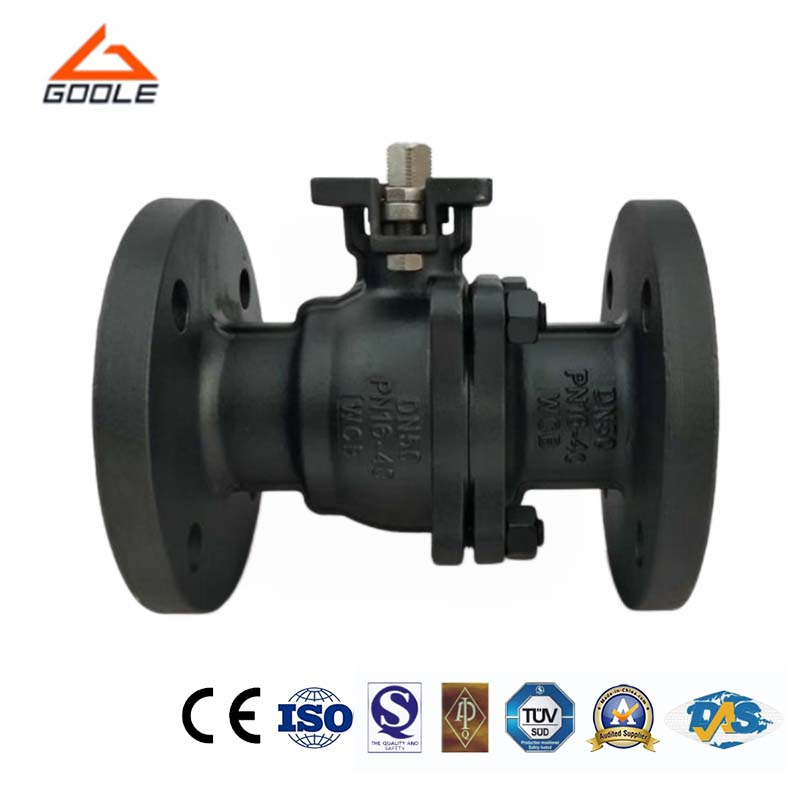

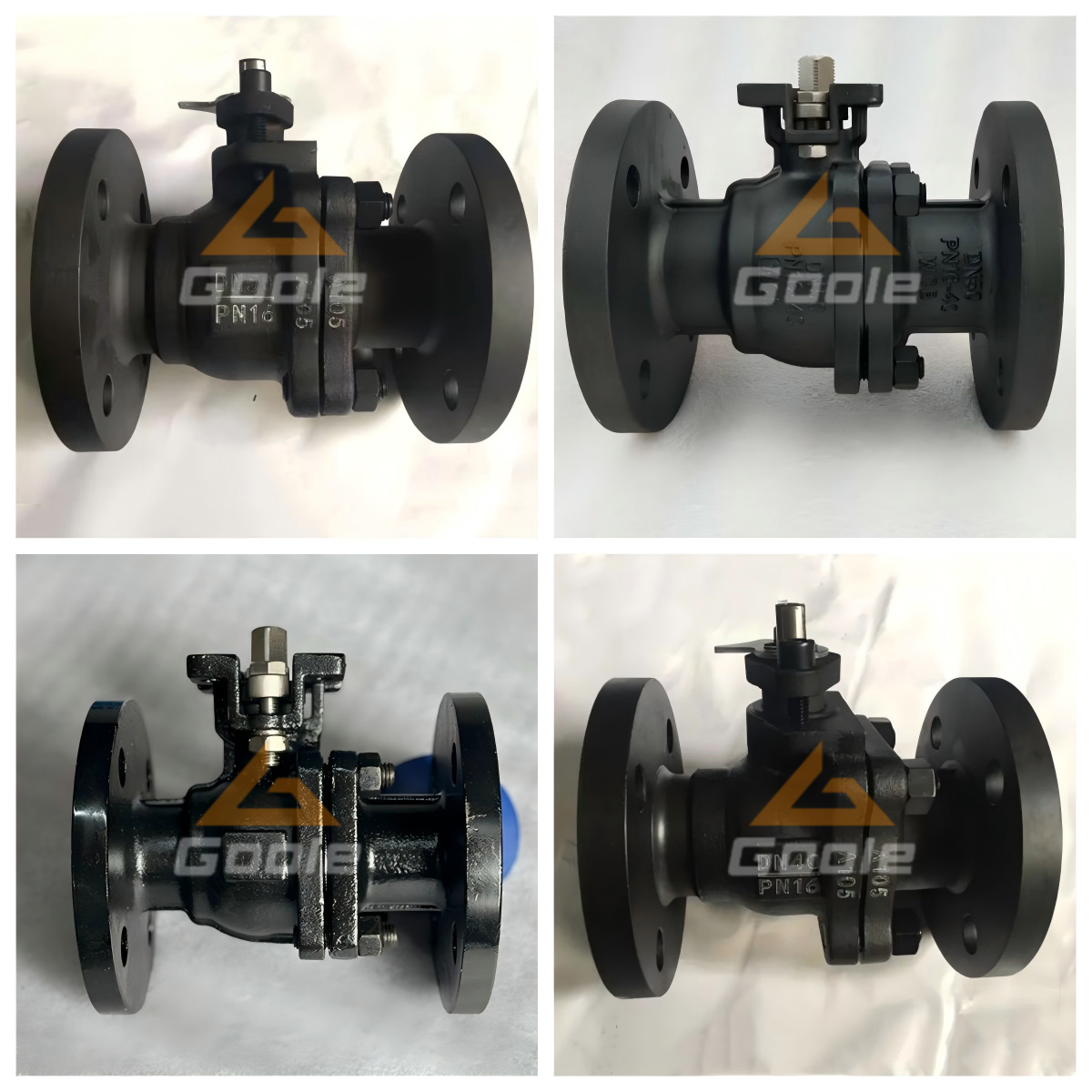

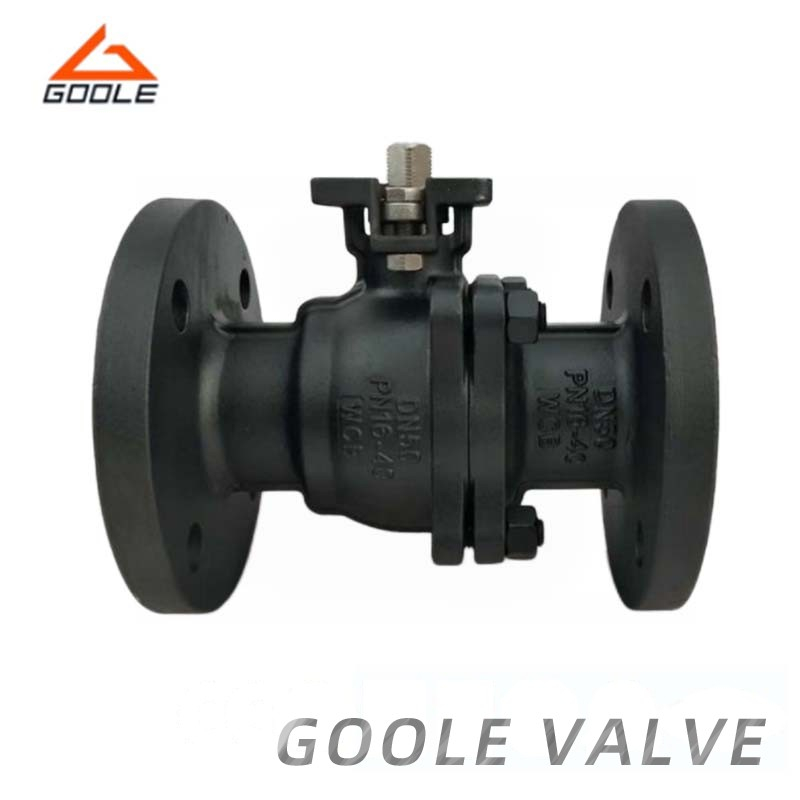

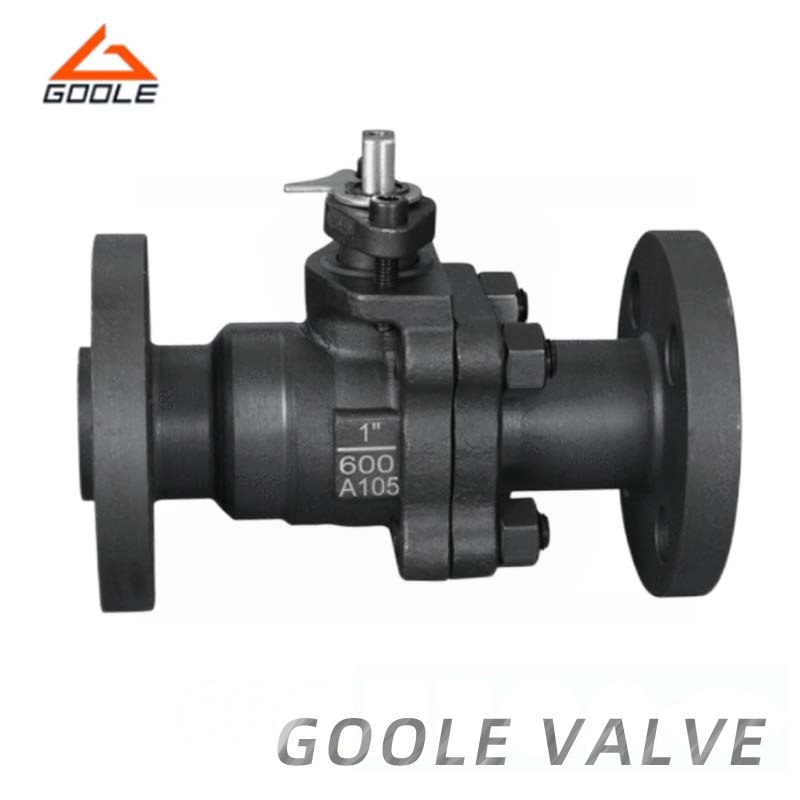

The Q41F ball valve features a 90-degree rotation action, similar to other models; however, it distinguishes itself by having a spherical body with a circular bore or passage. Primarily, ball valves are utilized to shut off, distribute, and alter the flow direction of fluids within pipelines. These valves require only a 90-degree turn and minimal torque to achieve a secure seal.
● Easy to Install: Featuring a simple and compact structure, installation and maintenance are straightforward. The design is rational, making operation more convenient and reducing the difficulty and time cost for users.
● Superior Sealing Performance: The carbon steel float ball valve employs a float design that ensures the ball and seat are in close cooperation when the valve is closed, thereby ensuring stable control of the medium.
● Wide Range of Application: The carbon steel float valve boasts excellent corrosion resistance and high-temperature performance, maintaining stable working performance under various harsh working conditions.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our carbon steel float valve offers numerous advantages, ensuring exceptional performance across various industrial applications. Firstly, its sturdy and resilient construction can endure high pressures and severe working conditions, ensuring long-term, stable operation. Secondly, the float design decreases operating torque, facilitating easier valve opening and closing and enhancing work efficiency. Moreover, our carbon steel material exhibits outstanding corrosion and heat resistance, making it suitable for a range of media and temperature conditions.
