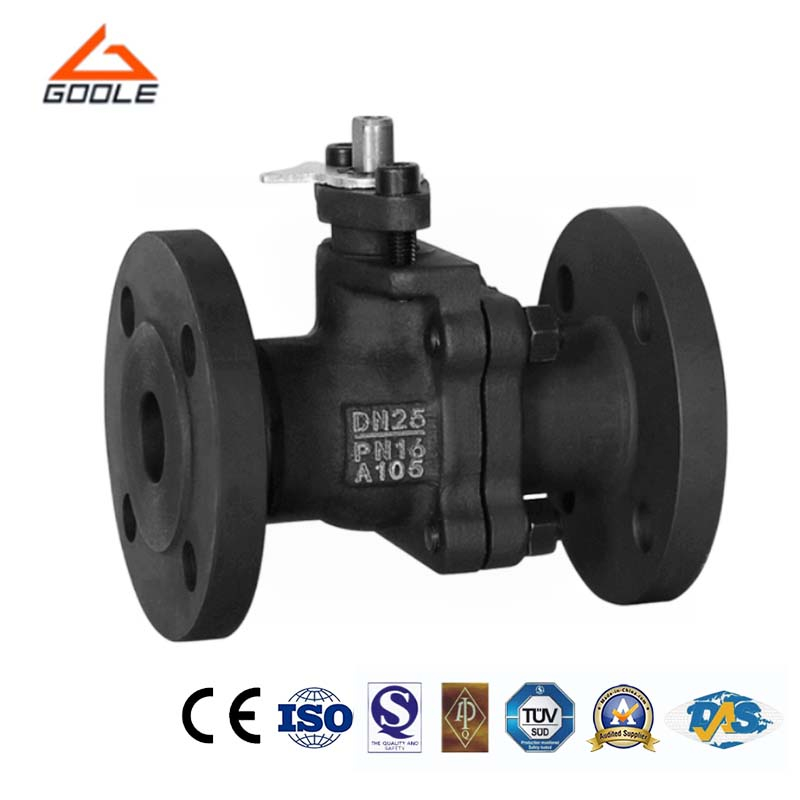

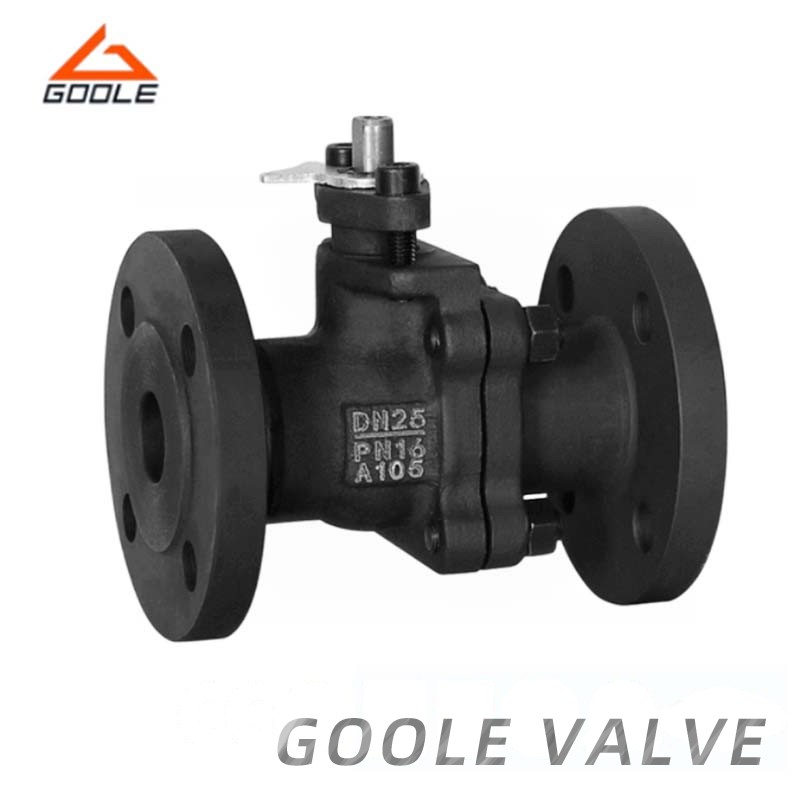

The Q41F ball valve features a 90-degree rotation action, akin to other models; however, its distinctiveness is in the sphere with circular holes or channels. Ball valves are primarily utilized to shut off, distribute, and alter the flow direction of fluids within pipelines. These valves necessitate only a 90-degree rotation and minimal torque to achieve secure sealing.
● Easy to Install: The structure is simple and compact, making installation and maintenance straightforward and effortless. A reasonable design enhances operational convenience and reduces the difficulty and time cost for users.
● Superior Sealing Performance: The carbon steel float ball valve employs a float design that ensures a tight fit between the ball and seat when the valve is closed, thereby ensuring stable control of the medium.
● Wide Range of Application: Carbon steel float ball valves boast excellent corrosion resistance and high-temperature performance, maintaining stable working performance under various harsh working conditions.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our carbon steel float valves offer numerous advantages, ensuring excellent performance across a variety of industrial applications. To begin with, their robust and durable construction can endure high pressures and withstand harsh working conditions, ensuring long-term stable operation. Furthermore, the float design reduces operating torque, facilitating easier opening and closing of the valve and enhancing work efficiency. Additionally, our carbon steel material boasts exceptional corrosion and heat resistance, making it suitable for a range of media and temperature conditions.
