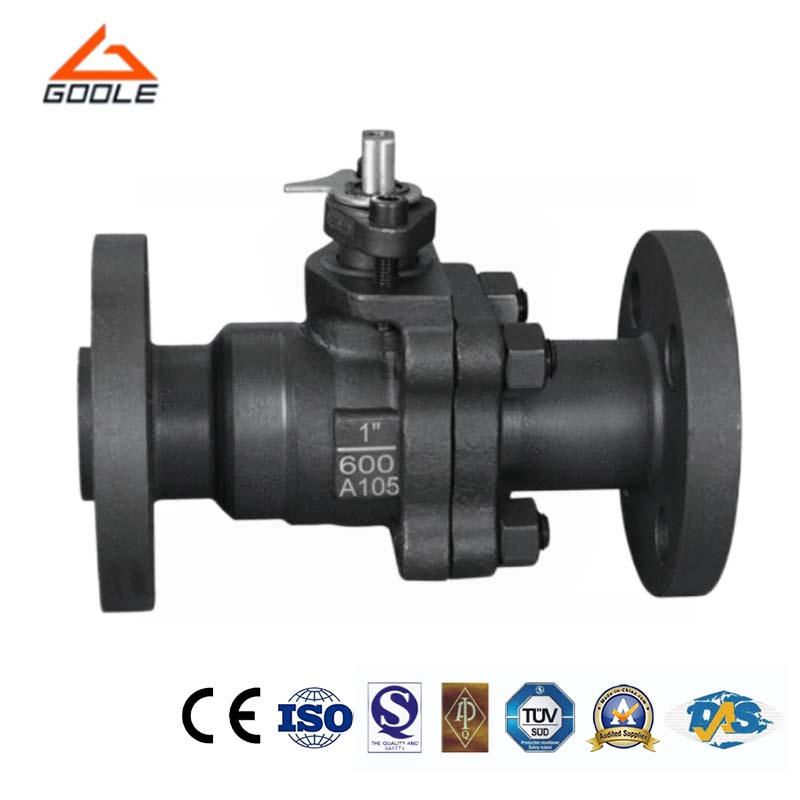

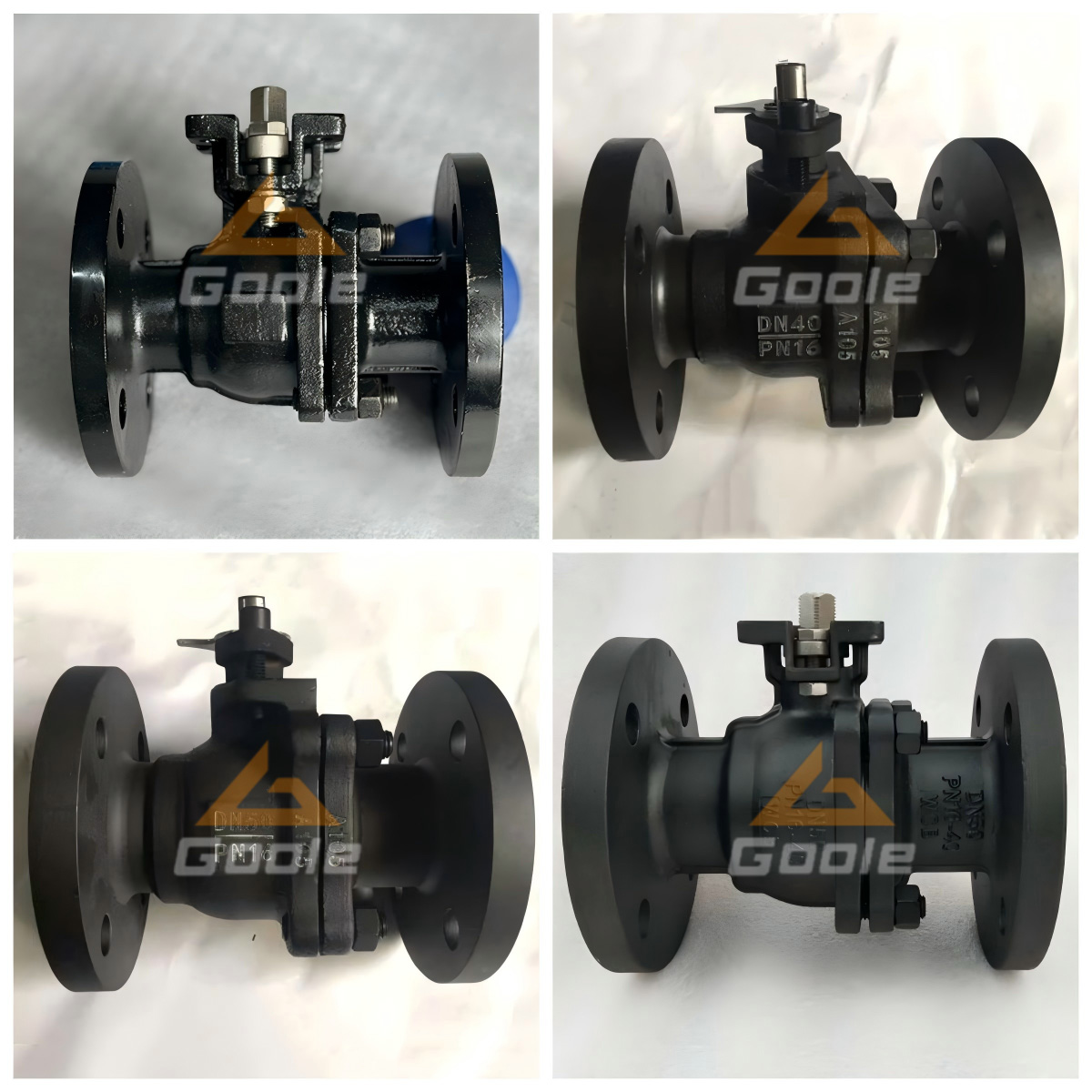

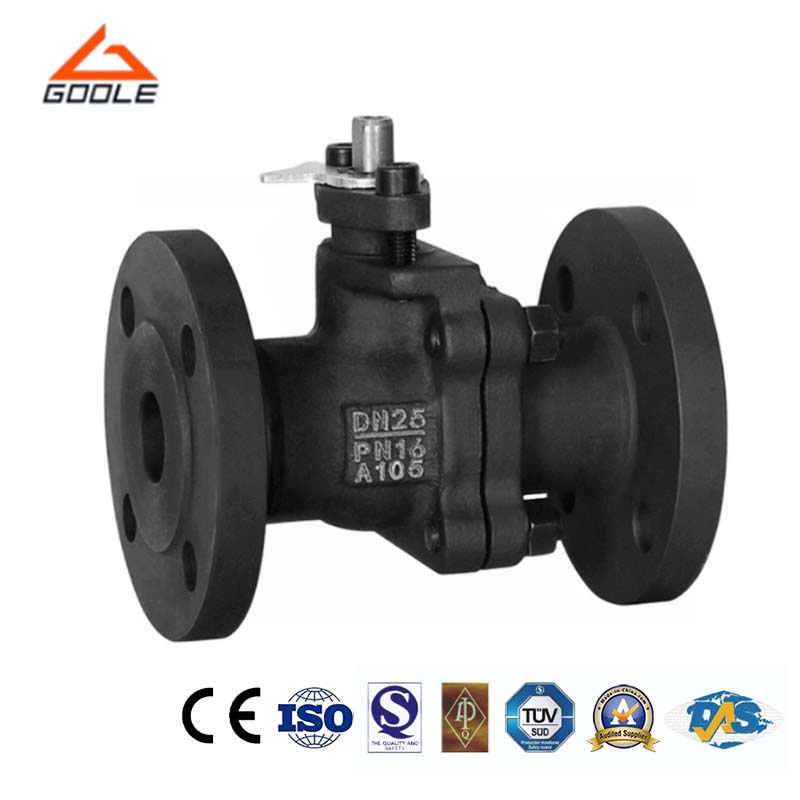

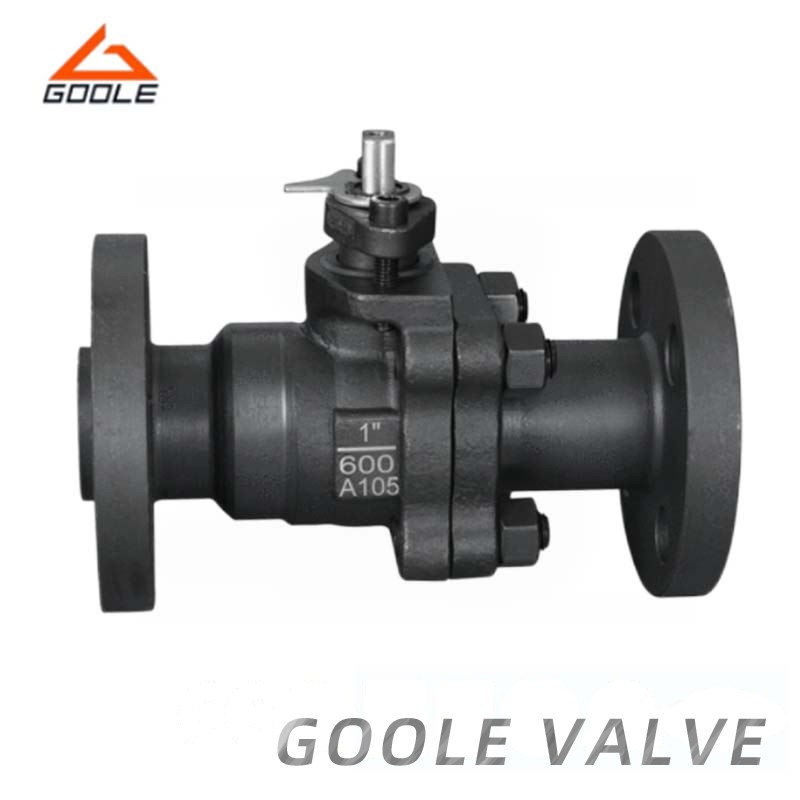

Q41F ball valve has a 90 degree rotation action, similar to other models; However, its uniqueness lies in having a sphere with circular holes or channels. Ball valves are mainly used to cut off, distribute, and change the flow direction of fluids in pipelines. These valves only require a 90 degree rotation and minimum torque to achieve safe sealing.
● Easy to Install: The structure is simple and compact, and the installation and maintenance are simple and easy. Reasonable design makes operation more convenient and reduces the difficulty and time cost for users.
● Superior Sealing Performance: The carbon steel float ball valve adopts a float design to ensure a tight fit between the ball and seat when the valve is closed, thereby ensuring stable control of the medium.
● Wide Range of Application: Carbon steel float ball valves have excellent corrosion resistance and high temperature performance, maintaining stable working performance under various harsh working conditions.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our carbon steel float valves have numerous advantages, ensuring excellent performance in various industrial applications. Firstly, its sturdy and durable structure can withstand high pressure and harsh working conditions, ensuring long-term stable operation. Secondly, the float design reduces the operating torque, making it easier for the valve to open and close, and improving work efficiency. In addition, our carbon steel material has excellent corrosion resistance and heat resistance, making it suitable for various media and temperature conditions.
