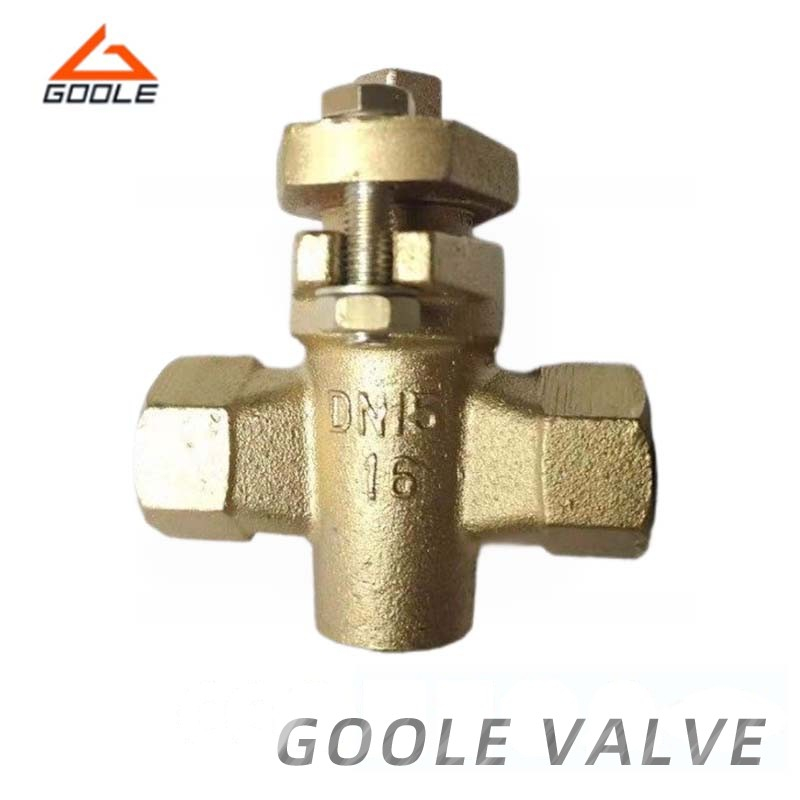

X14W-1.0T three-way internal thread all copper plug valve is widely used in oilfield development, transportation, and refining equipment, as well as in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, HVAC industry, and general industry.
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip-chip balanceable pressure and light on/off operation.
3. An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
4. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
The core advantage lies in the dual assurance provided by both material quality and manufacturing craftsmanship. The plug valve body is forged from high-purity brass, offering corrosion resistance and long-term tolerance to exposure to oil and low-pressure steam; its structural strength exceeds that of conventional cast copper products, making it resistant to cracking or deformation. The opening/closing mechanism is precision-milled, ensuring excellent fit between the plug and valve seat with zero leakage, smooth rotation without obstruction, and reliable sealing performance over extended use. The product is compatible with most standard pipeline specifications, features easy installation, requires no special maintenance, and is ideal for retrofitting small water/oil pipelines and equipment assembly. Comprehensive after-sales warranty is also provided to eliminate any concerns during subsequent use.
