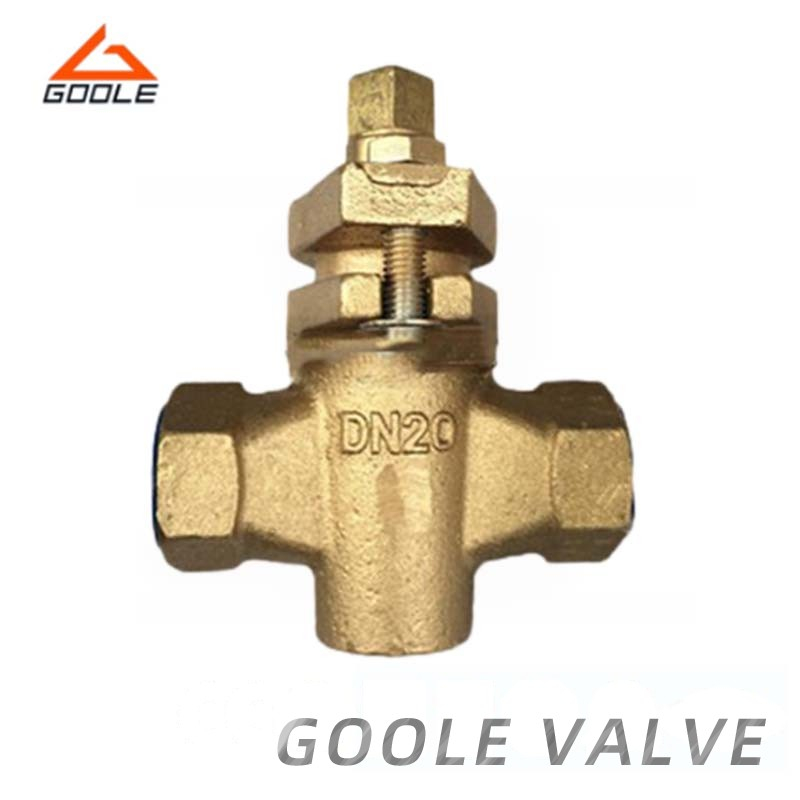

X14W-1.0T three-way internal thread all copper plug valve is widely used in oilfield development, transportation, and refining equipment, as well as in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, HVAC industry, and general industry.
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip-chip balanceable pressure and light on/off operation.
3. An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
4. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
Our core advantage lies in the dual guarantee of product material and craftsmanship. The main body of our plug valve is forged from high-purity brass, which not only boasts excellent corrosion resistance, enduring the erosion of various oils and low-pressure steam for extended periods, but also possesses higher structural strength than ordinary cast copper products, making it less prone to cracking and deformation. The opening and closing structure has undergone precise grinding and processing, ensuring an extremely high fit between the plug and the valve seat. This not only guarantees a zero-leakage sealing effect but also ensures smooth and unobstructed rotational operation, preventing seal loosening even after long-term use. Furthermore, this product is compatible with most conventional pipeline specifications, easy to install, and requires no special maintenance. Whether it's for small-scale water and oil pipeline renovations or equipment assembly, it can be stably adapted. Additionally, we provide comprehensive after-sales warranty services, eliminating any concerns you may have about subsequent use.
