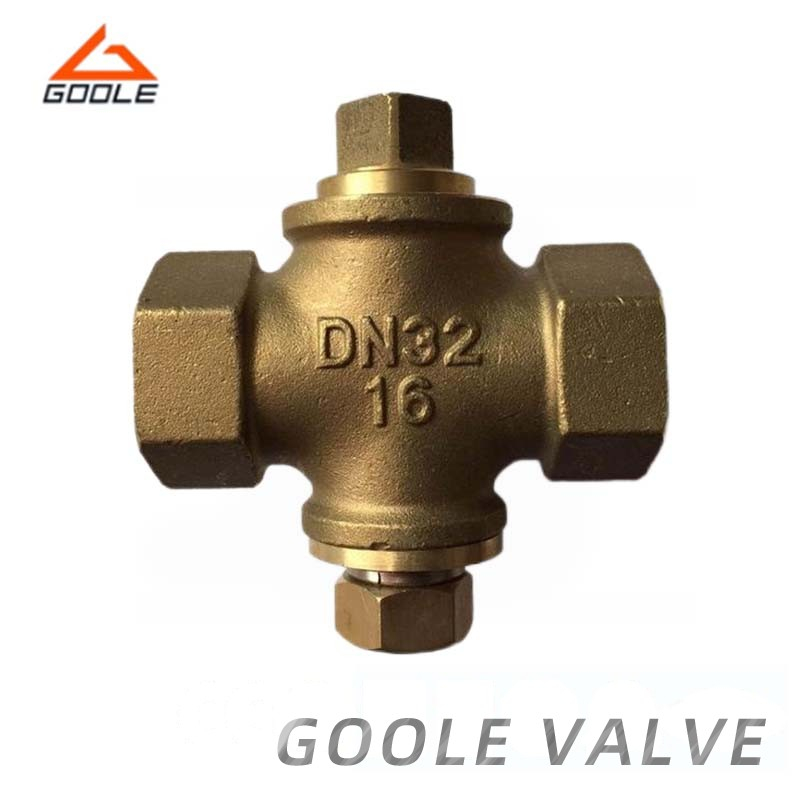

X16W-1.0T three-way internal thread all copper plug valve is widely used in oilfield development, transportation, and refining equipment, as well as in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, HVAC industry, and general industry.
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip-chip balanceable pressure and light on/off operation.
3. An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
4. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
The core lies in its ability to meet the usage requirements of most industrial and civilian scenarios in terms of durability, sealing, and adaptability. Brass material itself possesses excellent corrosion resistance, making it less prone to rust and damage from daily water, low-pressure gas, and other media, with a service life far exceeding that of ordinary plastic valves. Our plug structure is precisely machined, ensuring smooth and unobstructed switching operations. The sealing gasket is made of aging-resistant material, preventing leakage even after long-term use, maximizing reliability. Meanwhile, the standard diameter size fits most conventional pipeline installation requirements, allowing direct replacement and installation without additional modification. This also reduces maintenance and replacement costs, making it easily adaptable to both new installation projects and old valve renovations.
