Brass ball valves are used in the petroleum industry to cut or connect pipeline media between nominal pressures of 150 to 1500 and working temperatures of 600 ℃. Chemical industry, fossil fuel power plants. The sealing ring material for forged ball valves can be PTFE, RTFE, nylon PEEK、DEVLON、 Carbon steel+filled with PTFE, etc.
● High Quality Materials: Made of high-quality brass material, it has good corrosion resistance and pressure resistance, and can operate stably in various harsh environments for a long time, ensuring the safety and reliability of the pipeline system.

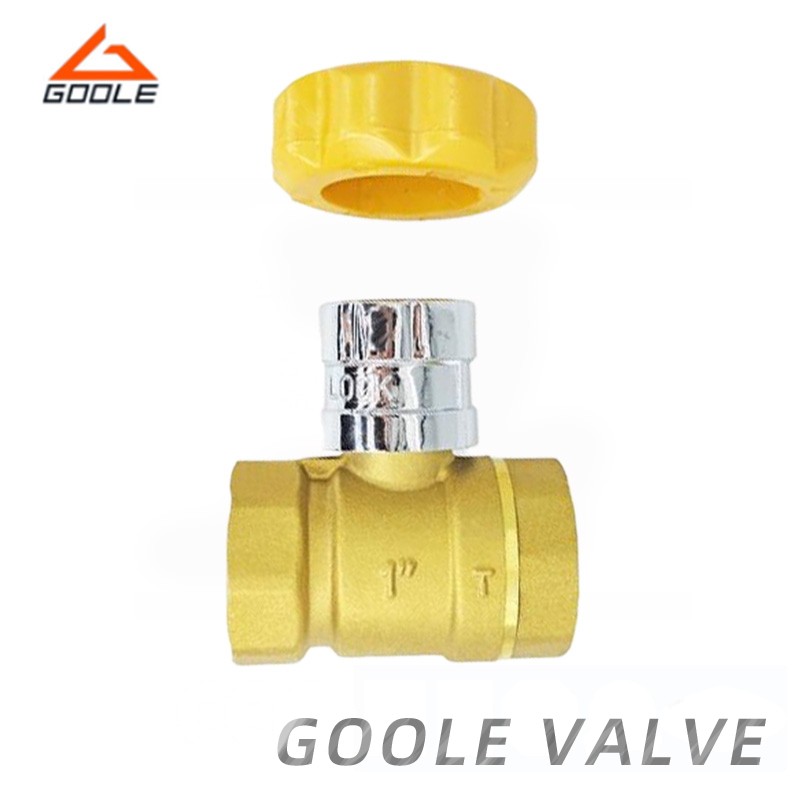

● Safe and Reliable: The ball valve is equipped with a magnetic locking device for easy operation. By magnetic attraction and locking, valves can be easily controlled to open and close, effectively preventing misoperation and illegal opening, and improving the safety of pipeline systems.
● Excellent Sealing Performance: The valve seat is made of high-quality sealing materials, ensuring no leakage when the valve is closed, and guaranteeing the fluid control accuracy and stability of the pipeline system.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:How does the butt-welded connection benefit the valve?
The threaded connection offers a secure, leak-proof fit that minimizes the risk of disconnection and leakage, ensuring long-term, reliable operation in high-pressure environments.
Q:Is the valve suitable for high-pressure and high-flow systems?
Yes, the valve is specifically designed to handle high-pressure environments and ensures optimal flow control even under demanding conditions.

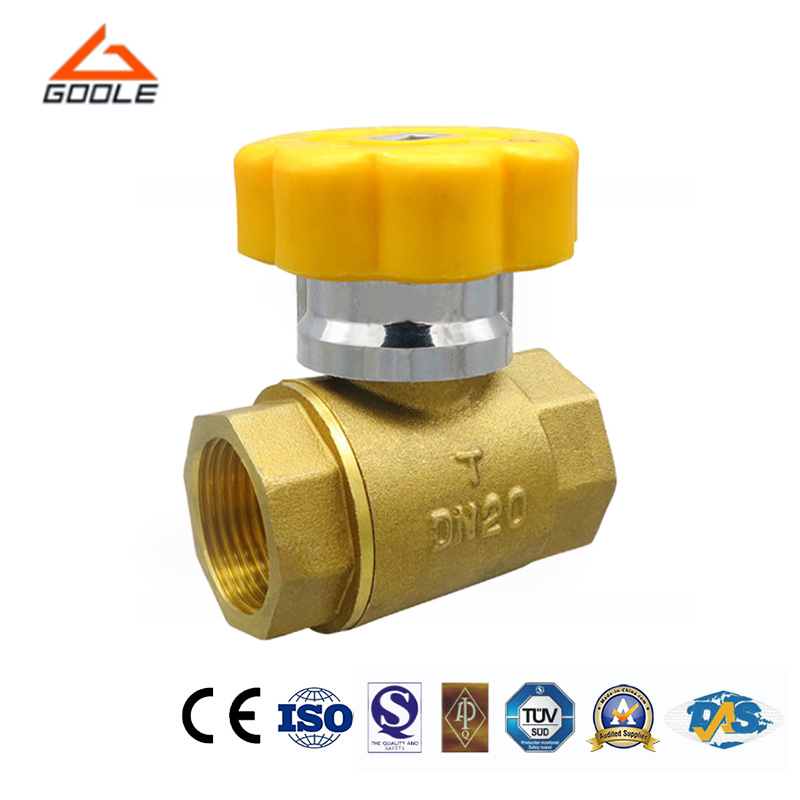

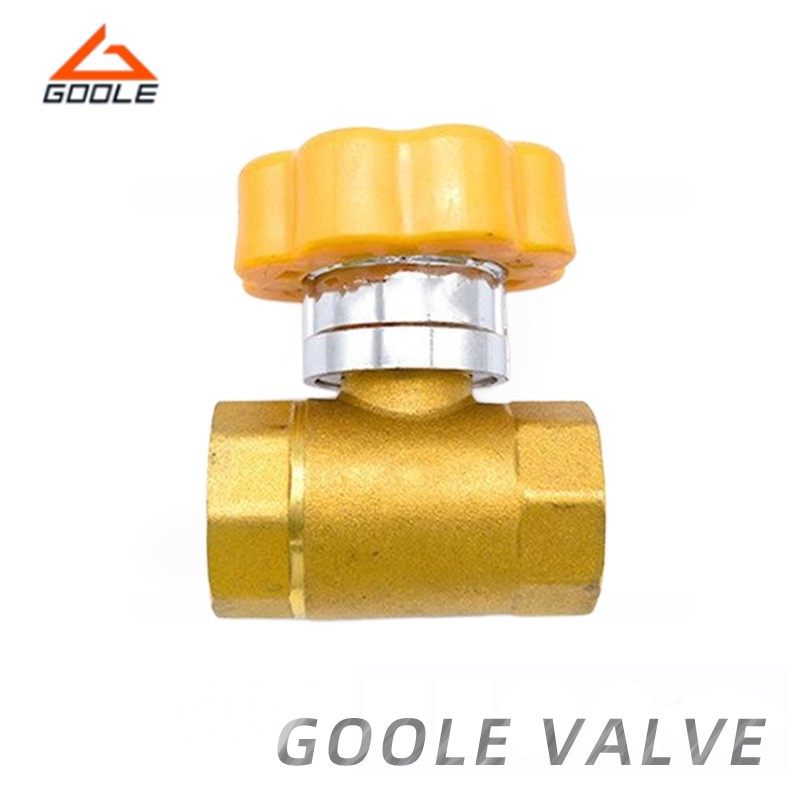

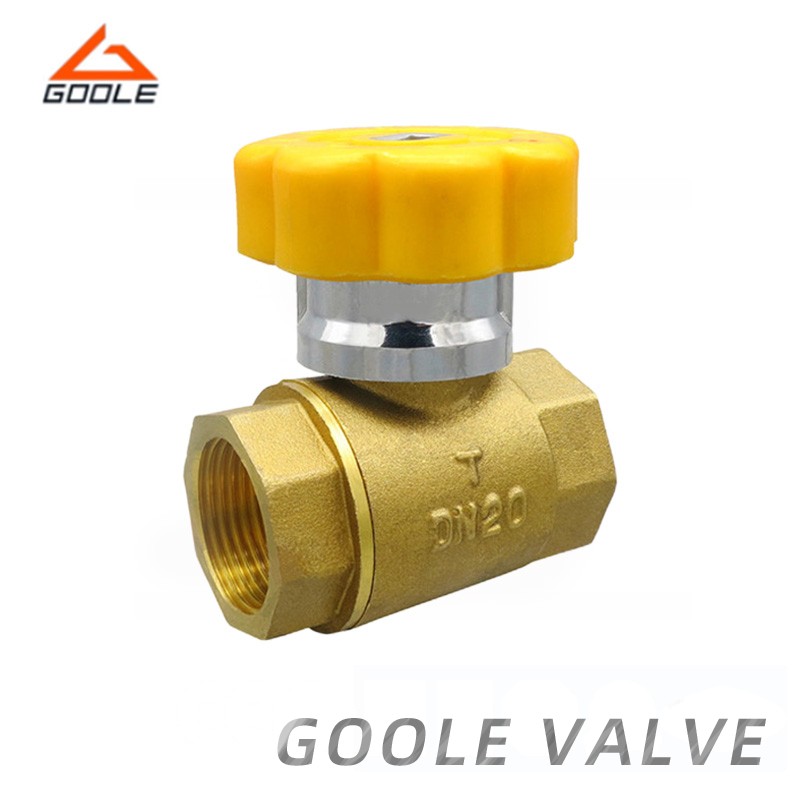

Our brass magnetic lock ball valve is made of high-quality brass material, which has excellent corrosion resistance and wear resistance. It is suitable for various fluid media such as water, oil, and natural gas, as well as complex working environments under high temperature, high pressure, low temperature, and vacuum conditions, ensuring stable operation under all harsh conditions. Through precise manufacturing processes and strict quality control, our brass magnetic lock ball valves have a long service life, reducing the frequency of valve replacement and lowering maintenance costs for pipeline systems.
