Bronze ball valves are used to shut off or connect pipeline media at nominal pressure, suitable for pressure ratings from 150 to 1500, with operating temperatures up to 600°C. They are widely applied in the oil, chemical, and fossil fuel power generation industries. The sealing ring material for forged ball valves can be selected from various options, including PTFE, RTFE, nylon, PEEK, DEVLON, and carbon steel filled with PTFE.
● High Quality Materials: High quality brass materials, with good corrosion resistance, pressure resistance, can be long-term stable operation in a variety of harsh environment, to ensure the safety and reliability of the pipeline system.
● Safe and Reliable: The ball valve is equipped with a magnetic locking device, which makes it easy to operate. Through magnetic attraction and locking, the valve can easily control the opening and closing, effectively preventing misoperation and illegal opening, and improving the safety of the pipeline system.
● Excellent Sealing Performance: The valve seat is made of high quality sealing materials to ensure that the valve is closed without leakage, ensuring fluid control accuracy and pipeline system stability.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:How does the butt-welded connection benefit the valve?
The threaded connection offers a secure, leak-proof fit that minimizes the risk of disconnection and leakage, ensuring long-term, reliable operation in high-pressure environments.
Q:Is the valve suitable for high-pressure and high-flow systems?
Yes, the valve is specifically designed to handle high-pressure environments and ensures optimal flow control even under demanding conditions.

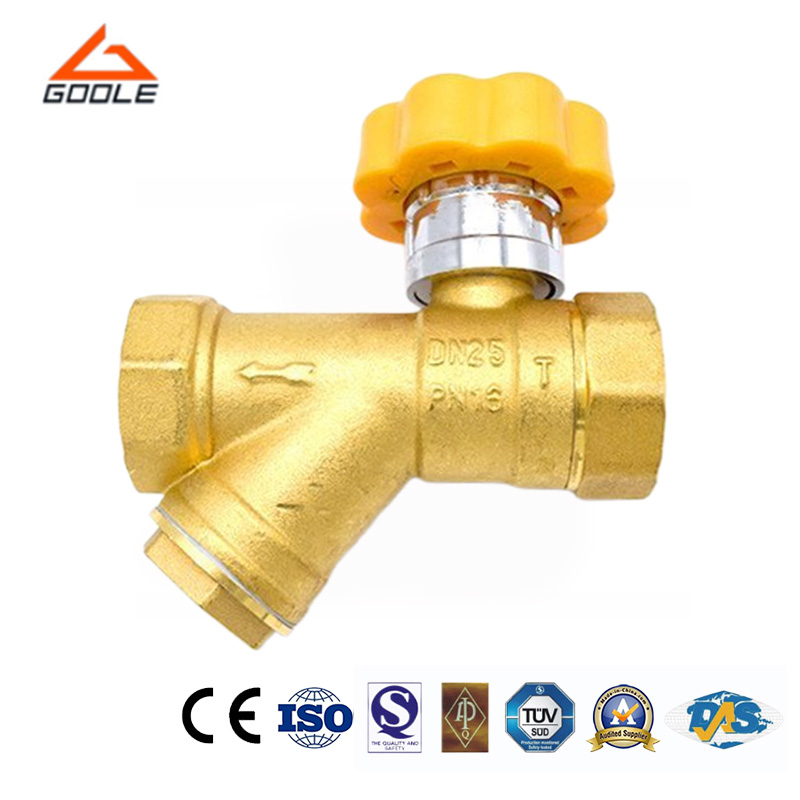

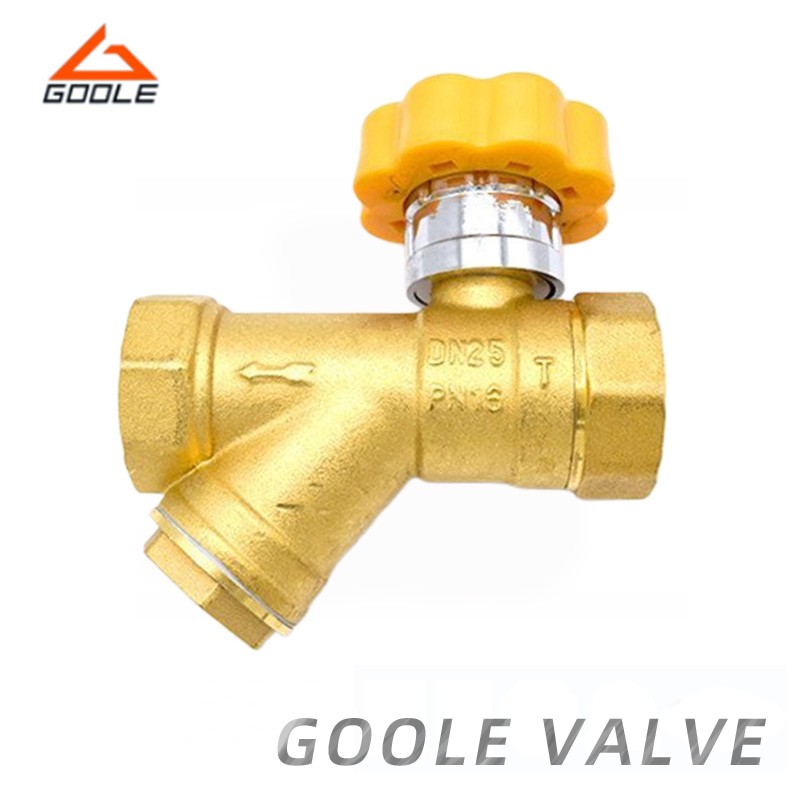

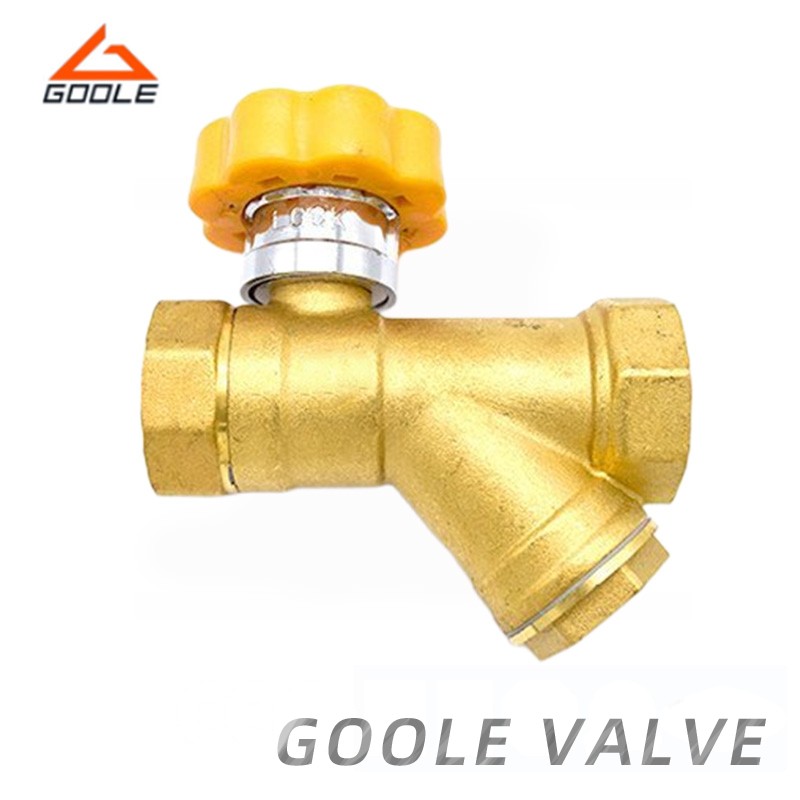

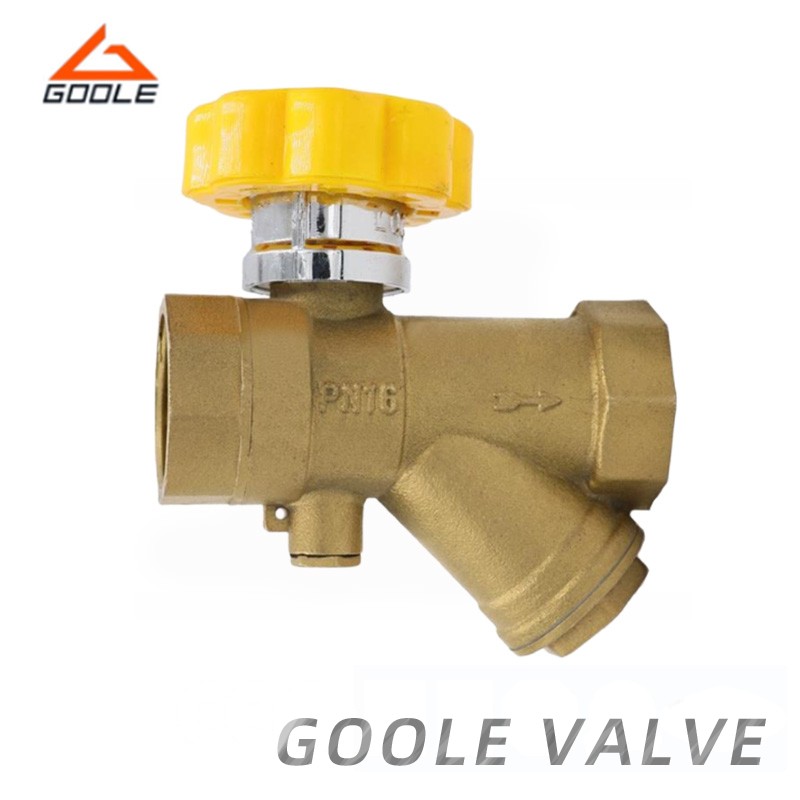

Our brass magnetic lock ball valve is made from high-quality brass and boasts excellent corrosion resistance and wear resistance. It can handle various fluid media, including water, oil, and gas, and is suitable for harsh environments such as high temperatures, high pressures, low temperatures, and vacuum conditions. This ensures stable operation under all stringent conditions. Thanks to precise manufacturing processes and strict quality control, our brass magnetic lock ball valve has a long service life, reducing the need for frequent valve replacements and lowering maintenance costs for pipeline systems.
