Bronze ball valves are used to cut off or connect pipeline media at nominal pressure, suitable for grades 150 to 1500, with a working temperature of 600°C. They are widely used in the petroleum industry, chemical industry, and fossil fuel power plants. The sealing ring material for forged ball valves can be selected from PTFE, RTFE, nylon, PEEK, DEVLON, carbon steel + filled PTFE, etc.
● High Quality Materials: Using high quality brass materials, with good corrosion resistance, pressure resistance, can be long-term stable operation in a variety of harsh environment, to ensure the safety and reliability of the pipeline system.
● Safe and Reliable: The ball valve has a built-in magnetic locking device, which is easy to operate. Through magnetic attraction and locking, the valve can easily control the opening and closing, effectively prevent misoperation and illegal opening, and improve the safety of the pipeline system.
● Excellent Sealing Performance: the valve seat is made of high quality sealing materials to ensure that the valve is closed without leakage, ensuring the fluid control accuracy and stability of the pipeline system.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:How does the butt-welded connection benefit the valve?
The threaded connection offers a secure, leak-proof fit that minimizes the risk of disconnection and leakage, ensuring long-term, reliable operation in high-pressure environments.
Q:Is the valve suitable for high-pressure and high-flow systems?
Yes, the valve is specifically designed to handle high-pressure environments and ensures optimal flow control even under demanding conditions.

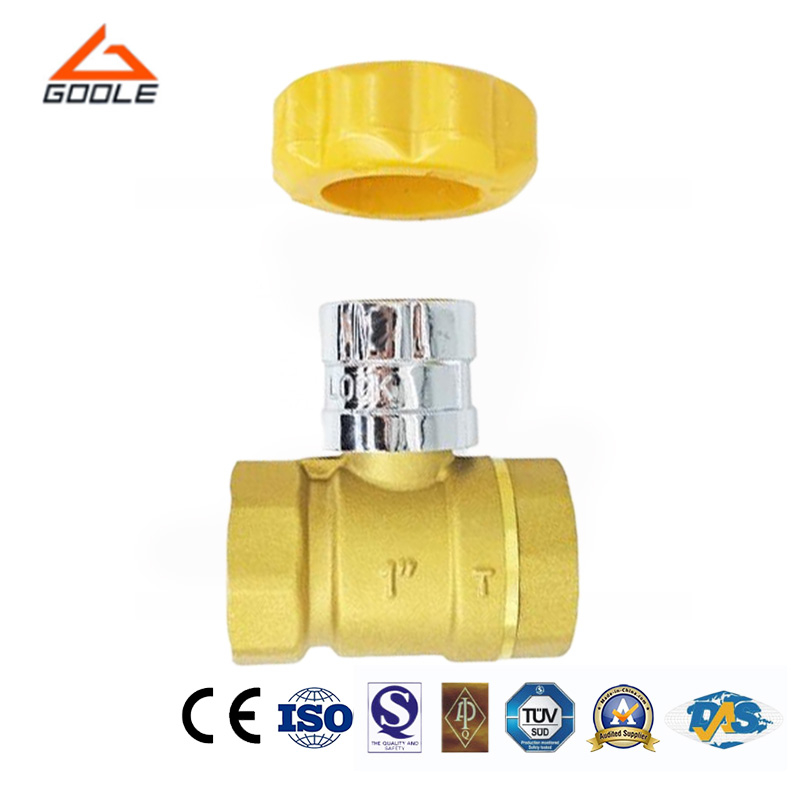

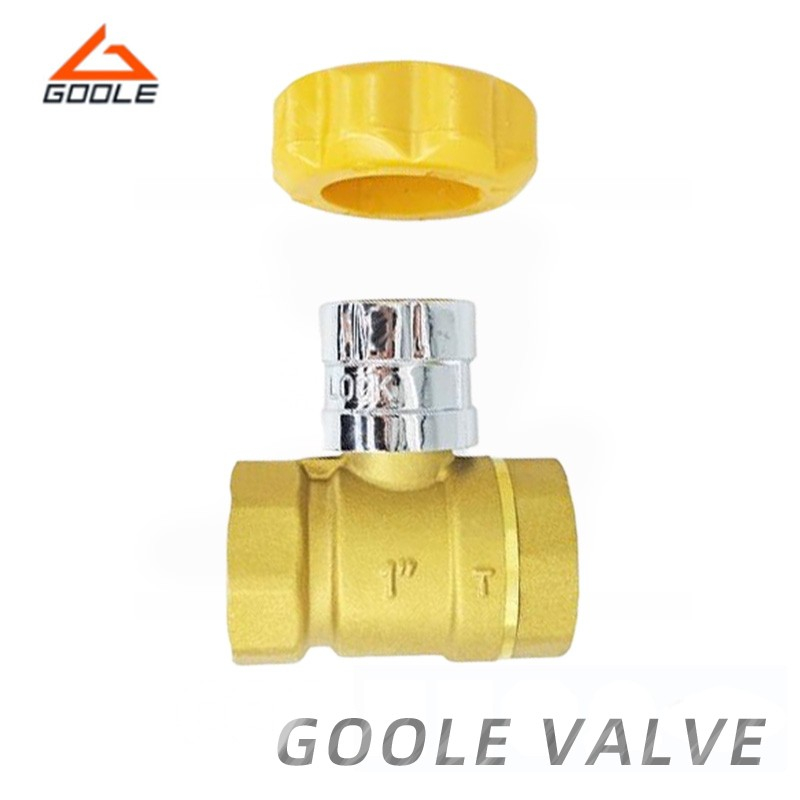

Our brass magnetic lock ball valve is made from high-quality brass material, featuring excellent corrosion resistance and wear resistance. It is suitable for various fluid media such as water, oil, and gas, as well as complex working environments including high temperature, high pressure, low temperature, and vacuum conditions, ensuring stable operation under all harsh conditions. Through precise manufacturing processes and strict quality control, our brass magnetic lock ball valve has a long service life, reducing the frequency of valve replacement and lowering the maintenance costs of pipeline systems.
