Bronze ball valves are utilized to either shut off or connect pipeline media at nominal pressures, suitable for grades ranging from 150 to 1500, and with a working temperature of up to 600°C. They are extensively used in the petroleum, chemical, and fossil fuel power plant industries. The sealing ring material for forged ball valves can be selected from a variety of options, including PTFE, RTFE, nylon, PEEK, DEVLON, and carbon steel with filled PTFE.
● High-Quality Materials: Crafted from premium brass, this material offers excellent corrosion and pressure resistance, allowing for stable operation over extended periods, even in harsh environments. This ensures the safety and reliability of the pipeline system.
● Safe and Reliable: The ball valve features an integrated magnetic locking mechanism, providing ease of operation. Through magnetic attraction and locking, the valve can be controlled to open and close with precision, effectively preventing accidental or unauthorized operation, thereby enhancing the safety of the pipeline system.
● Excellent Sealing Performance: The valve seat is constructed from superior sealing materials, guaranteeing no leakage when the valve is in the closed position. This ensures the fluid control accuracy and stability of the pipeline system.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:How does the butt-welded connection benefit the valve?
The threaded connection offers a secure, leak-proof fit that minimizes the risk of disconnection and leakage, ensuring long-term, reliable operation in high-pressure environments.
Q:Is the valve suitable for high-pressure and high-flow systems?
Yes, the valve is specifically designed to handle high-pressure environments and ensures optimal flow control even under demanding conditions.

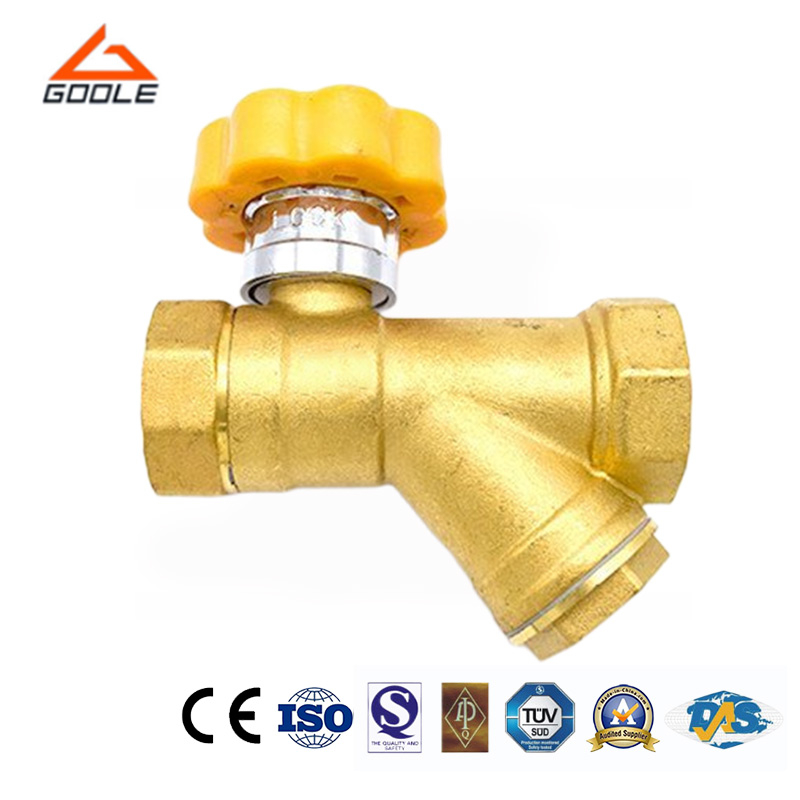

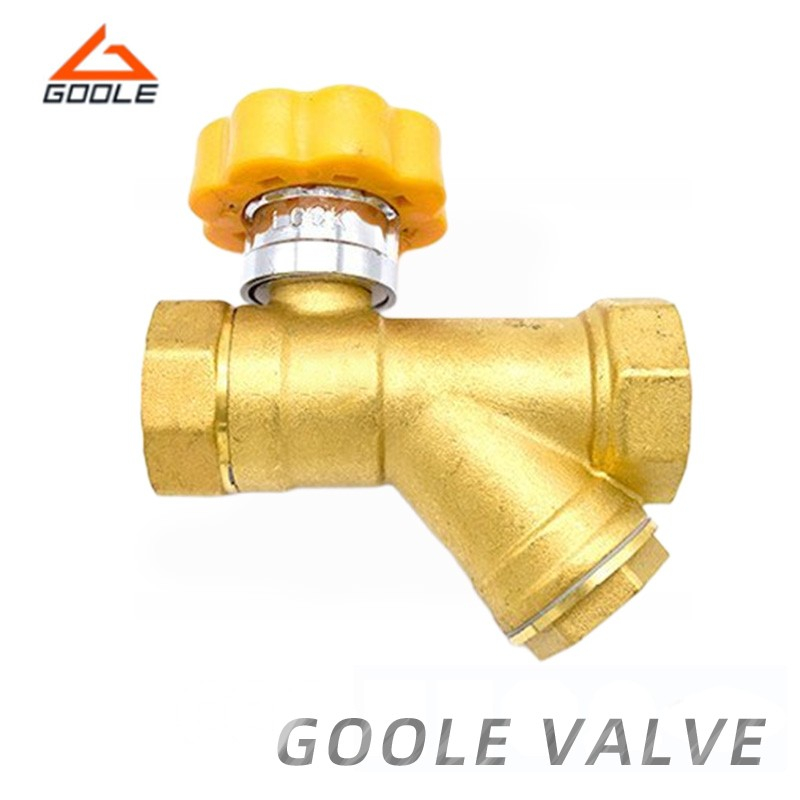

Our brass magnetic lock ball valve is crafted from premium brass, providing exceptional corrosion and wear resistance. It is designed to handle a variety of fluid media, including water, oil, and gas, and is suitable for use in challenging environments with high temperatures, pressures, low temperatures, and vacuum conditions. This ensures stable operation in all severe conditions. Thanks to precise manufacturing techniques and rigorous quality control, our brass magnetic lock ball valve boasts a long service life, which decreases the need for frequent valve replacements and reduces maintenance costs for pipeline systems.
