Brass ball valve are used to cut or connect the pipe media under nominal pressure between class 150 class 1500, working temperatures 600 .in oil industry. Chemical industry, fossil fired power plants. The sealing ring material of forged ball valve can be PTFE, RTFE, NYLON, PEEK, DEVLON, CARBON STEEL + Filled PTFE, ETC.
● High Quality Materials: It is made of high quality brass material, with good corrosion resistance and pressure resistance, can operate stably for a long time in various harsh environments, to ensure the safety and reliability of the pipeline system.

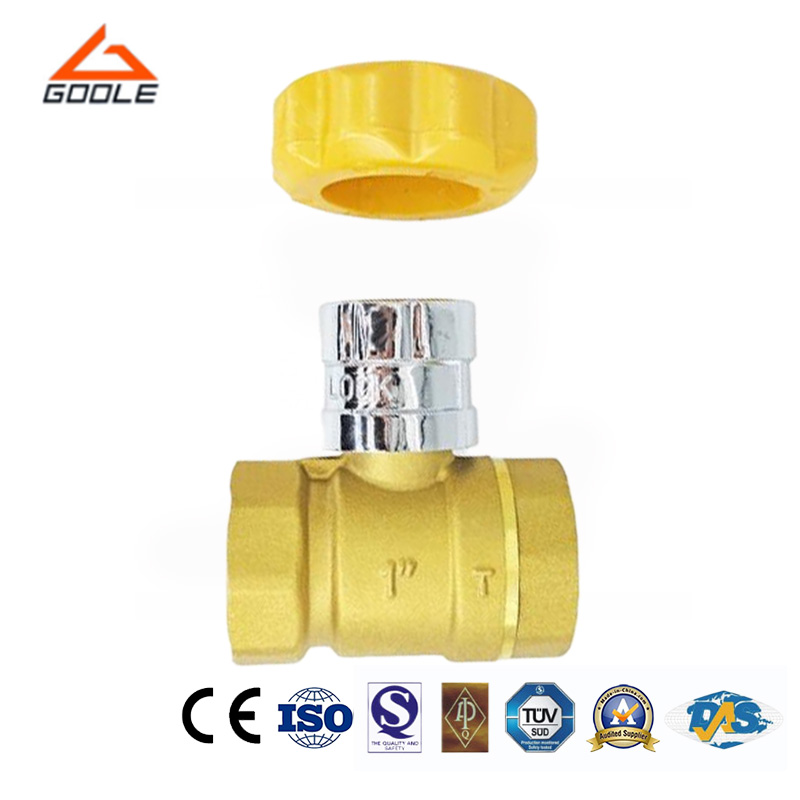

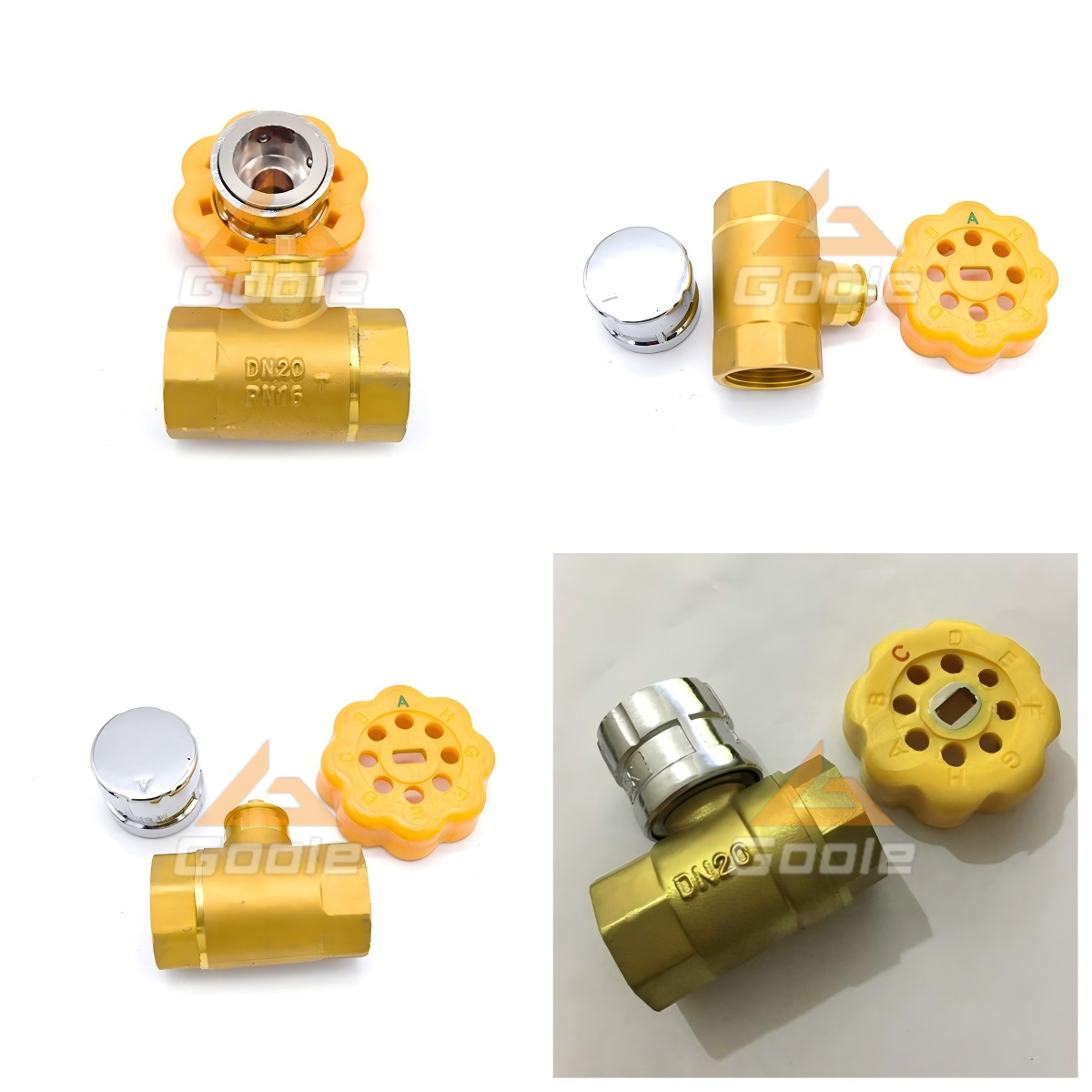

● Safe and Reliable: The ball valve has a built-in magnetic locking device, which is easy to operate. Through magnetic attraction and locking, the valve can be easily controlled to open and close, effectively preventing misoperation and illegal opening, and improving the safety of the pipeline system.
● Excellent Sealing Performance: The valve seat is made of high quality sealing materials to ensure that the valve has no leakage in the closed state, ensuring the fluid control accuracy and stability of the pipeline system.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:How does the butt-welded connection benefit the valve?
The threaded connection offers a secure, leak-proof fit that minimizes the risk of disconnection and leakage, ensuring long-term, reliable operation in high-pressure environments.
Q:Is the valve suitable for high-pressure and high-flow systems?
Yes, the valve is specifically designed to handle high-pressure environments and ensures optimal flow control even under demanding conditions.

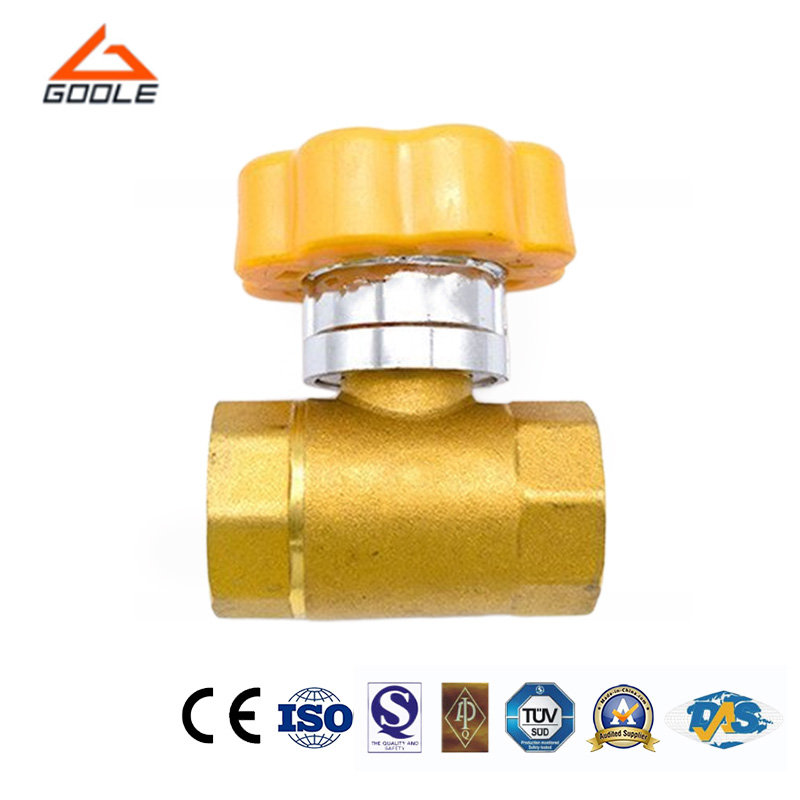

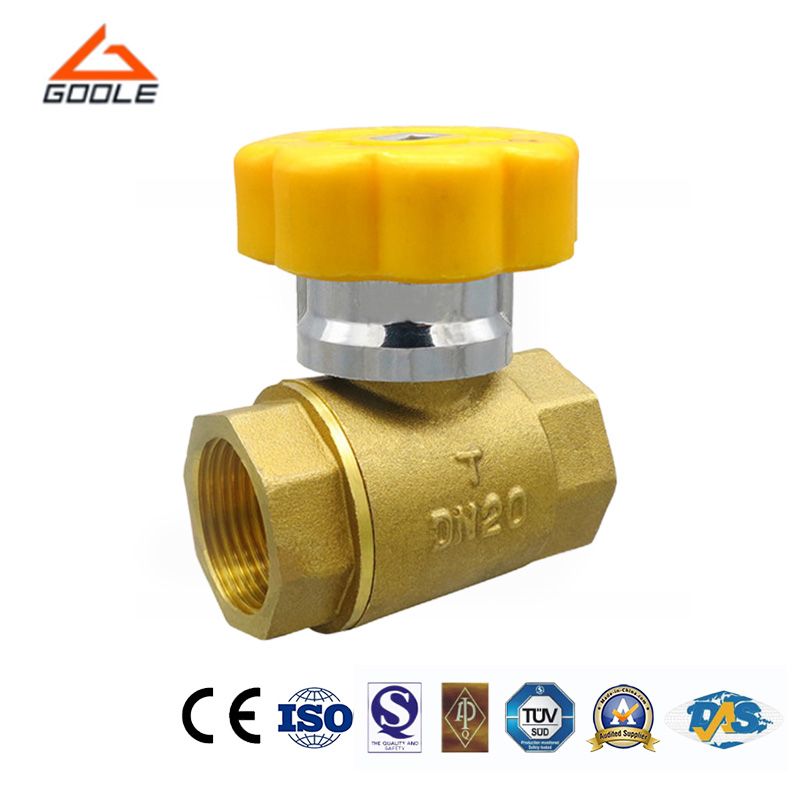

Our brass magnetic lock ball valve is made from high-quality brass material, offering excellent corrosion resistance and wear resistance. It is suitable for various fluid media such as water, oil, and gas, as well as complex working environments with high temperatures, high pressures, low temperatures, and vacuum conditions, ensuring stable operation under all harsh conditions. Through precise manufacturing processes and strict quality control, our brass magnetic lock ball valve has a long service life, reducing the frequency of valve replacement and lowering the maintenance costs of pipeline systems.
