ANSI Lifting Plug Valve with Flanged Connection

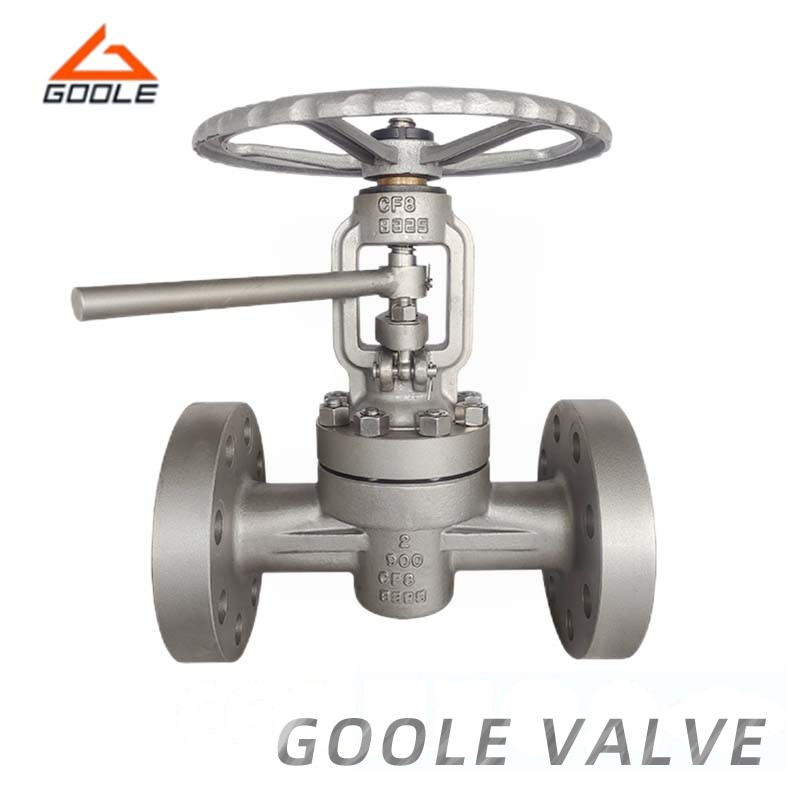

ANSI Flanged Ends Lifting Type Metal Seated Plug Valve

Structure: Plug valve is a rotary valve with a closure or plunger shape. It is a type of valve that opens or closes by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body.

Material: The valve is constructed from high-quality stainless steel, providing excellent corrosion resistance and durability for use with a wide range of industrial fluids.

Operation: The Stainless Steel Threaded Ball Valve can be operated manually using a handle or lever for simple and reliable flow control.

Sealing Performance: The valve is equipped with reliable sealing components to ensure tight shut-off and prevent leakage, maintaining the integrity of the pipeline system.

Application Range: The Stainless Steel Threaded Ball Valve is suitable for controlling the flow of various fluids, including water, oil, gas, and other compatible mediums in industrial applications.

Operating Environment: The valve is designed to operate effectively in normal, medium, and high-temperature environments, meeting the fluid control requirements of different industrial processes.

Application Fields: The Stainless Steel Threaded Ball Valve is commonly used in industries such as chemical processing, oil and gas, water treatment, and HVAC systems for reliable fluid control and shut-off.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

The X43H flange lifting hard seal plug valve is suitable for cutting off or connecting pipeline media in various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries with a nominal pressure of Class150LB~2500LB and a working temperature of -29~550 ºC.

Product Features

A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance

B. Its sealing is realized by the sealing face around the sleeve,It has unique 360 degree metal edge for protection and fixing of the sleeve.

C. There is no cavity in the valve for accumulation of medium.

D. Metal edge provides the function of self-cleaning when the plug is rotated,applicable to the operation condition that is glutions and apto smudge.

E. Its characteristic double-dircction flow makes installaiton and use more convenient.

F. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.

Product Details

NO.	Part name	Material
NO.	Part name	A216 WCB	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
1	Body	A216 WCB	A217 WCB	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
2	Plug	A351 CF8	A351 CF8	A351 CF8	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
3	Gasket	Flexible graphite+stainless steel/PTFE
4	Cover	A216 WCB	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
5	Bolt	A193 B7	A193 B16	A193 B16	A1293 B8	A193 B8M
6	Nut	A194 2H	A194 4	A194 4	A194 8	A194 8M
7	Packing	Flexible graphite/PTFE
8	Gland	A216 WCB	A216 WC9	A216 C5	A351 CF8	A351 CF8M
9	Wrench	A216 WCB	A216 WC9	A216 C5	A351 CF8	A351 CF8M
10	Yoke nut	A439-D2/Cu-Allog
11	Hand wheel	ASTM A536 Gr.60-40-18 A216 WCB

Dimensions
Class 150Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF	mm	108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	300	300	340	400	450	450	500	500
Weight	Kg	9	10	11	17	19	23	25	32	55	82	98	130	178	250	380

Product Display

Frequently Asked Questions（FAQs）

Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.

Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
