X43W plug valve is a rotary valve with a closure or plunger shape. It is a type of valve that opens or closes by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The shape of the valve plug of a rotary valve can be cylindrical or conical. In a cylindrical valve plug, the channel is generally rectangular; In a conical valve, the channel is trapezoidal. These shapes make the structure of the plug valve lightweight, but at the same time, they also result in certain losses. Plug valves are most suitable for cutting off and connecting media, as well as for diverting flow, but depending on their properties and the erosion resistance of the sealing surface, they can sometimes also be used for throttling.
A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance
F. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.

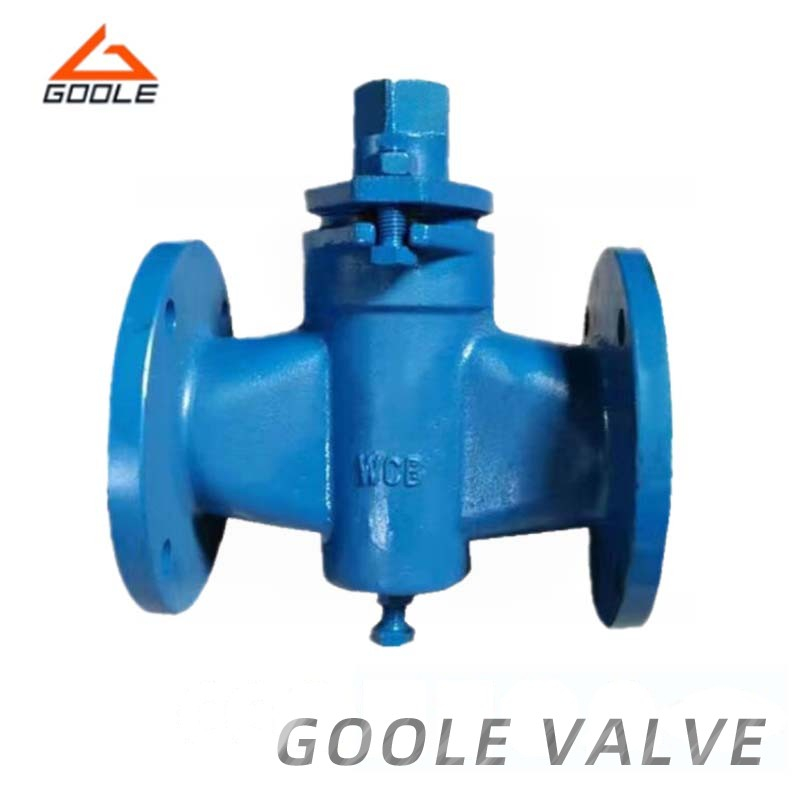

The cast steel two-way plug valve is manufactured from high-quality carbon cast steel, featuring exceptional pressure resistance and corrosion resistance. It is suitable for demanding applications in various industries such as petroleum, chemical processing, and water supply/drainage systems, exhibiting minimal rusting or deformation even after prolonged use with significantly longer service life than valves made of conventional materials. Its compact design enables quick operation—simply rotating the valve stem 90 degrees—for efficient opening/closing, enhancing operational efficiency while simplifying on-site installation and maintenance. The sealing mechanism is specially optimized to ensure high precision between the plug and valve body, achieving leakage rates far below industry standards and effectively preventing safety hazards and material loss caused by fluid leakage, thereby ensuring stable pipeline system performance. Additionally, we offer a comprehensive range of product specifications and can customize special models according to specific application requirements, supported by a robust after-sales service system that delivers tailored solutions for diverse customer needs.
