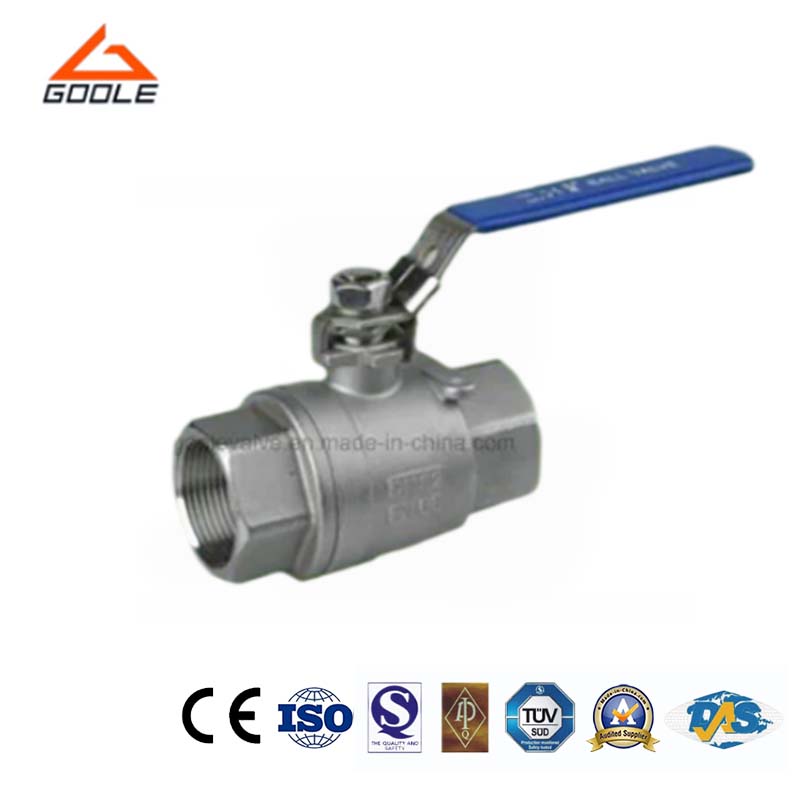

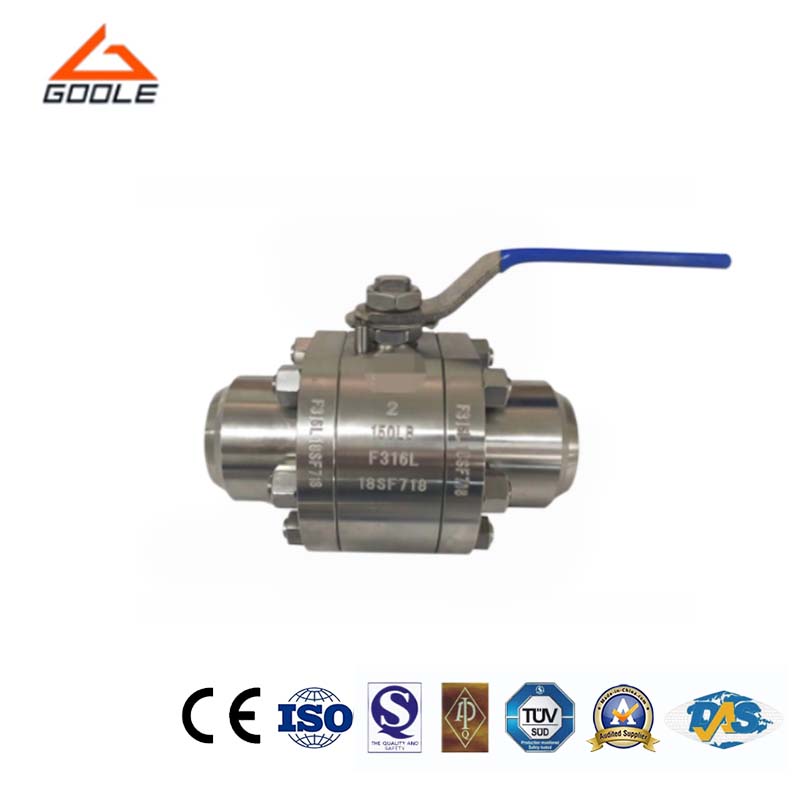

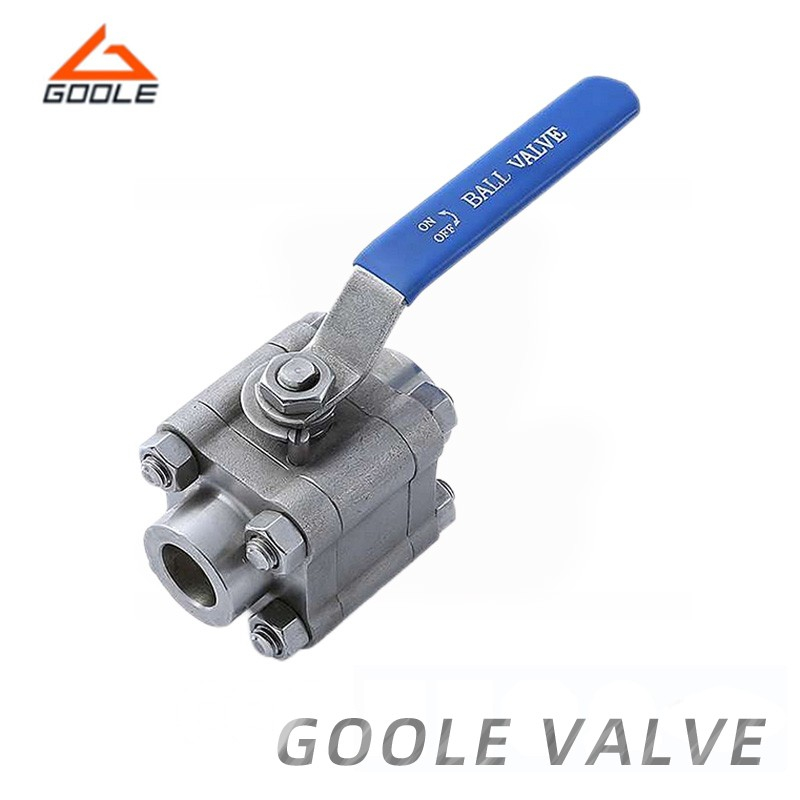

High pressure forged steel butt welded ball valves are designed specifically for demanding industrial applications, providing reliable performance in high-pressure systems. This valve is made of high-quality forged steel materials such as A105, F304, F316, and other alloys, which have excellent strength and durability, making it an ideal choice for applications in harsh environments. The three piece design facilitates maintenance and repair, reducing downtime. The butt welding connection ensures safe and leak proof installation, providing safety and efficiency in heavy-duty pipeline systems.
● Three-Piece Design: Easy to maintain and repair, reducing downtime, and simplifying services.
● High Pressure Rating: Designed for reliable operation under high voltage conditions, making it suitable for heavy industrial applications.
● Butt Welded Connections: Provides a secure, leak-proof installation for enhanced safety and reliability.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What is the pressure rating of this valve?
This valve is rated for high-pressure applications, with pressure ratings ranging from 150lb to 1500lb, depending on the size and material specification.
Q2:What type of connection does the valve have?
The valve features butt-welded connections, providing a secure and permanent fit in industrial piping systems.
Q3:What materials are used in the construction of the valve?
The valve is made from high-quality forged steel (A105, F304, F316, etc.), ensuring durability and resistance to high-pressure and high-temperature environments.
Our high-pressure forged steel butt welded ball valves for heavy-duty applications are designed for performance and lifespan. The three piece design ensures easy maintenance, while the forged steel structure ensures strength and durability under harsh conditions. The butt welding connection provides a safe and leak proof fit, making this valve an ideal choice for heavy-duty systems in industries such as oil and gas, petrochemicals, and power generation. By using our valves, you can achieve reliable and long-lasting fluid control in high-pressure applications.
