The three-way flanged ball valve and gate valve belong to the same type of valve, the difference is that their closing parts are a ball that rotates around the center line of the valve body to achieve opening and closing. The ball valve is mainly used in pipelines to cut off, distribute and change the direction of the flow of media.
● Reasonable Design: Compact structure, effectively reduce the installation space, so that the valve can be flexibly used in a variety of pipeline systems.
● Corrosion Resistance: The valve is made of high quality materials, with good wear resistance and long service life.
● Flange Connection: This connection mode makes the valve and pipeline tightly connected, not easy to leak, improve the sealing and safety of the system.
| Serial number | Part Name | Material | |
| - | - | Stainless steel | carbon steel |
| 1 | bolt | Stainless steel SS304 | carbon steel |
| 2 | spring washer | Stainless steel SS304 | Stainless steel SS304 |
| 3 | nut | Stainless steel SS304 | carbon steel |
| 4 | cap | Stainless steel CF8/CF8M | Carbon SteelWCB |
| 5 | valve body | Stainless steel CF8/CF8M | Carbon SteelWCB |
| 6 | sphere | Stainless steel CF8 | Stainless steel CF8 |
| 7 | sealing ring | Polytetrafluoroethylene/PTFE | PolytetrafluoroethylenePTFE |
| 8 | Stem | Stainless steel SS316 | Stainless steel SS304 |
| 9 | filler | PolytetrafluoroethylenePTFE | PolytetrafluoroethylenePTFE |
| 10 | Compression nut | Stainless steel SS304 | Stainless steel SS304 |
| 11 | spring washer | Stainless steel SS304 | Stainless steel SS304 |
| 12 | nut | Stainless steel SS304 | Stainless steel SS304 |
| 13 | handle | Stainless steel SS304 | Stainless steel SS304 |
| SIZE | 1/2″ | 3/4″ | 1" | 1 1/4″ | 1 1/2″ | 2" | 2 1/2″ | 3″ | 4″ |
| d | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 230 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 |
| D2 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 160 |
| b | 14 | 16 | 16 | 18 | 18 | 20 | 22 | 24 | 24 |
| f | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| H | 75 | 95 | 90 | 110 | 130 | 140 | 140 | 180 | 250 |
| W | 130 | 140 | 140 | 170 | 200 | 220 | 220 | 350 | 550 |
| n-do | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 |
| Nominal Size | 1/2"-4" |
| Nominal pressure | 1.6Mpa-25Mpa |
| Temperature | -20ºC~220ºC |
| Medium | water, oil, gas and some corrosive mediun |
| Connection type | Flange, butt welded, threaded |
| Operation | manual, electric, pneumatic |
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.

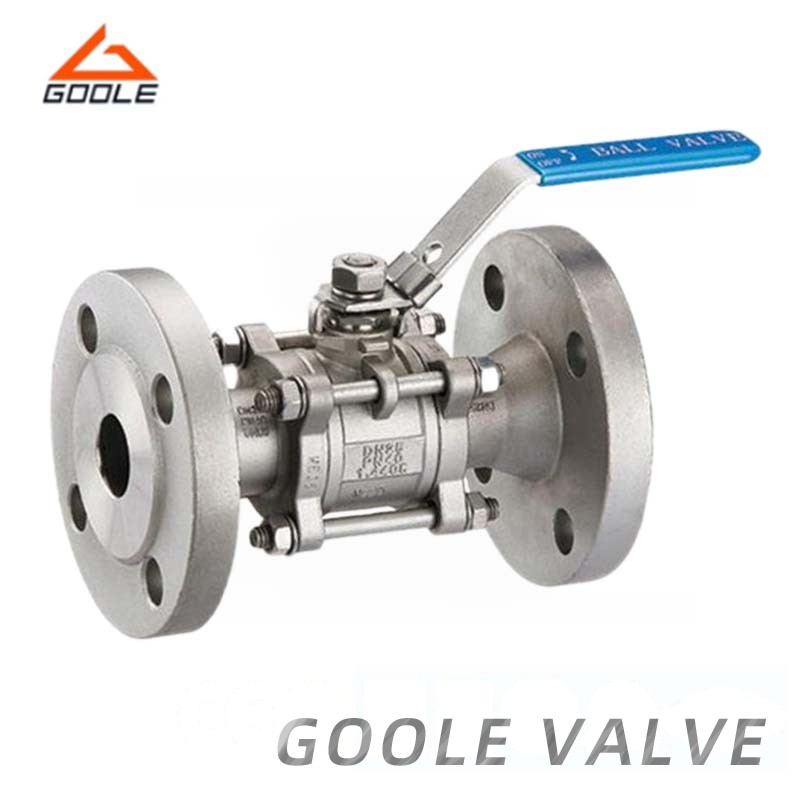

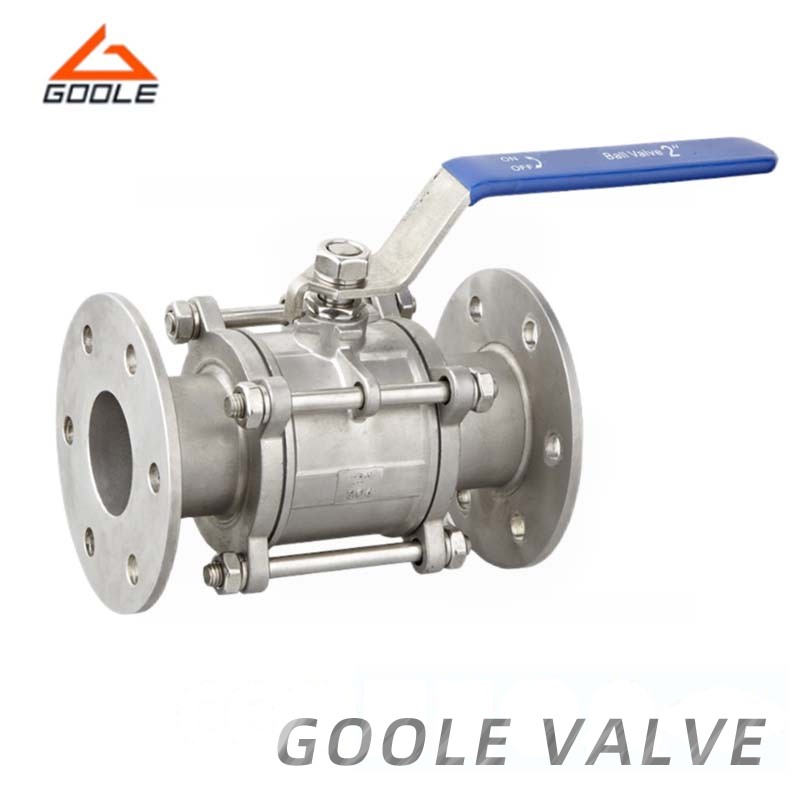

Our three-piece flanged welded ball valve is made from high-quality materials, ensuring durability and reliability. Its unique design makes installation and maintenance exceptionally easy, significantly improving work efficiency. The ball valve boasts excellent sealing performance, effectively preventing leaks and ensuring safe and stable system operation. Finally, we offer comprehensive after-sales service to ensure customers receive timely technical support and solutions during use.
