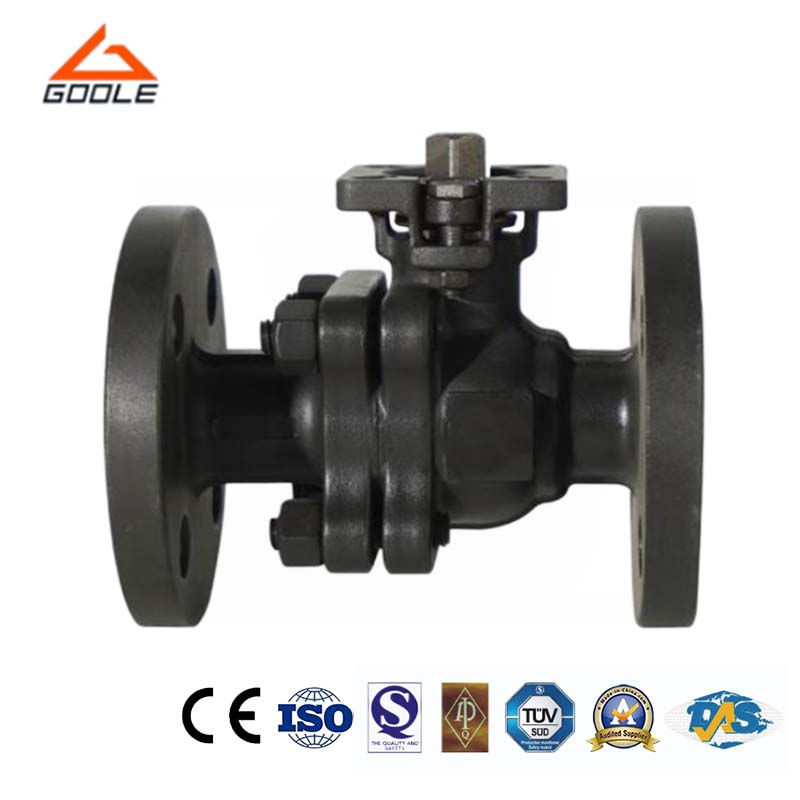

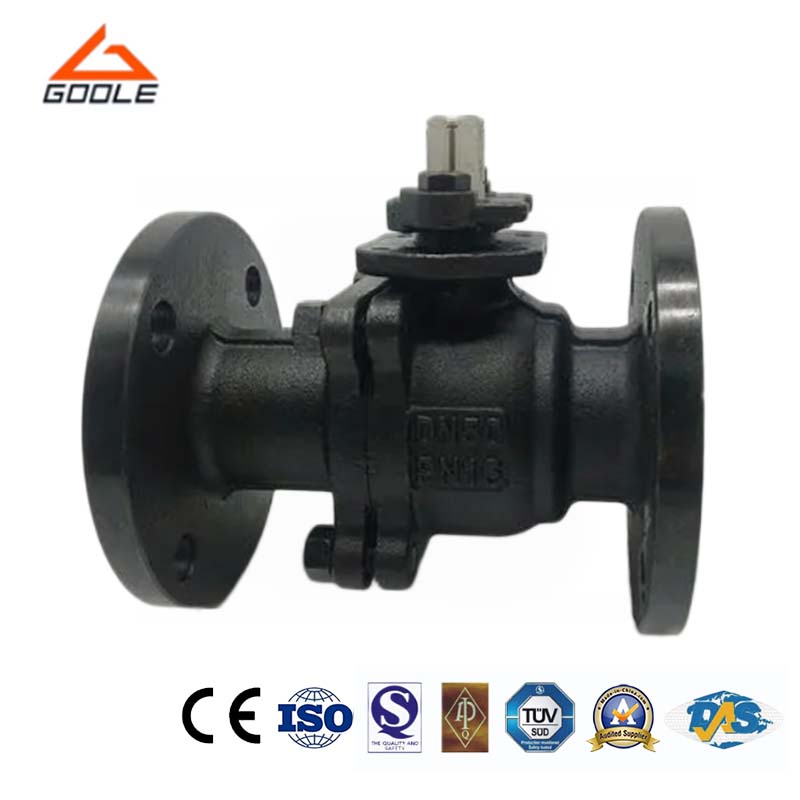

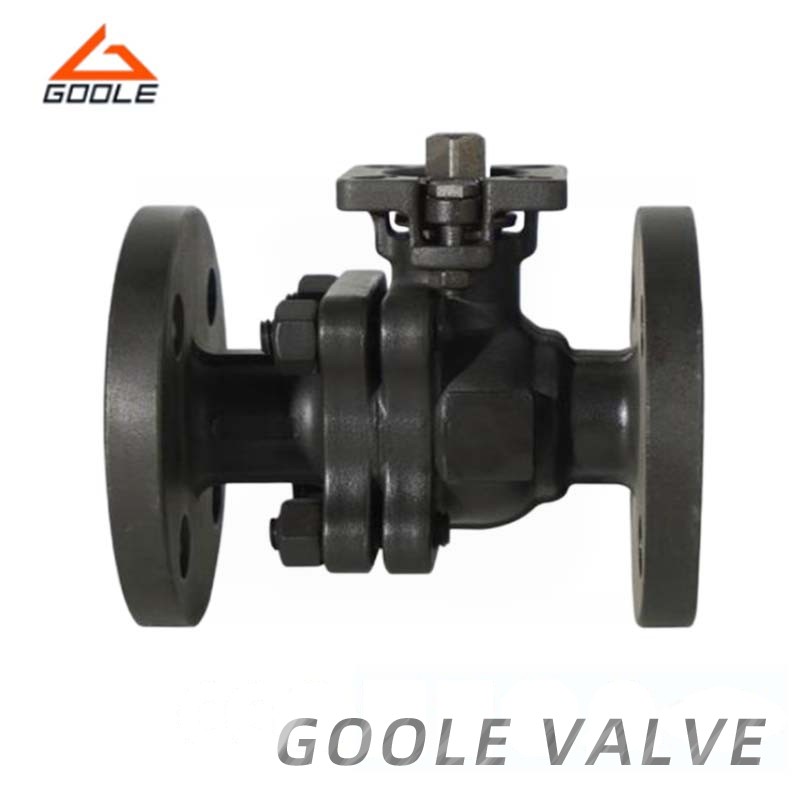

The Q41F ball valve has the same 90 degree rotation action, but the difference is that the valve body is a sphere with a circular hole or channel. Ball valves are mainly used to cut off, distribute and change the direction of flow in pipelines. They only need 90 degrees of rotation and small torque to close tightly.
● Easy to Install: Simple and compact structure, easy to install and maintain. Due to reasonable design, operation is more convenient, reducing the difficulty and time cost of users.
● Superior Sealing Performance: Carbon steel float ball valve adopts the float design to ensure that the ball and the seat are in close cooperation when the valve is closed to ensure stable control of the medium.
● Wide Range of Application: Carbon steel float valve has good corrosion resistance and high temperature performance, can maintain stable working performance under various harsh working conditions.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our carbon steel float valve boasts multiple advantages, ensuring outstanding performance in various industrial applications. First, its robust and durable structure can withstand high pressure and harsh working environments, guaranteeing long-term stable operation. Second, the float design reduces operating torque, making valve opening and closing easier and improving work efficiency. Additionally, our carbon steel material has excellent corrosion resistance and heat resistance, suitable for a variety of media and temperature conditions.
