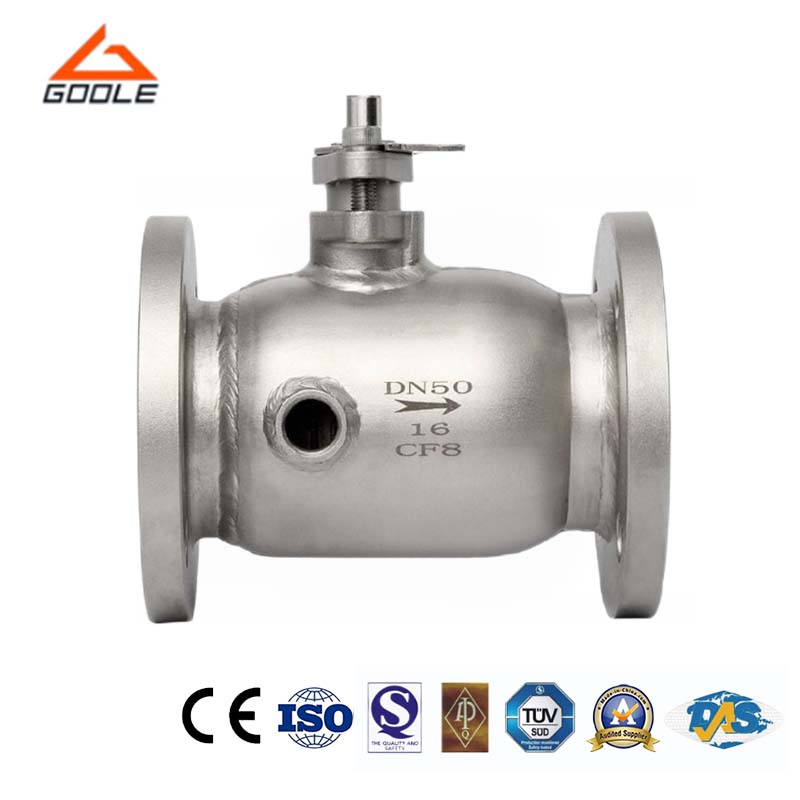

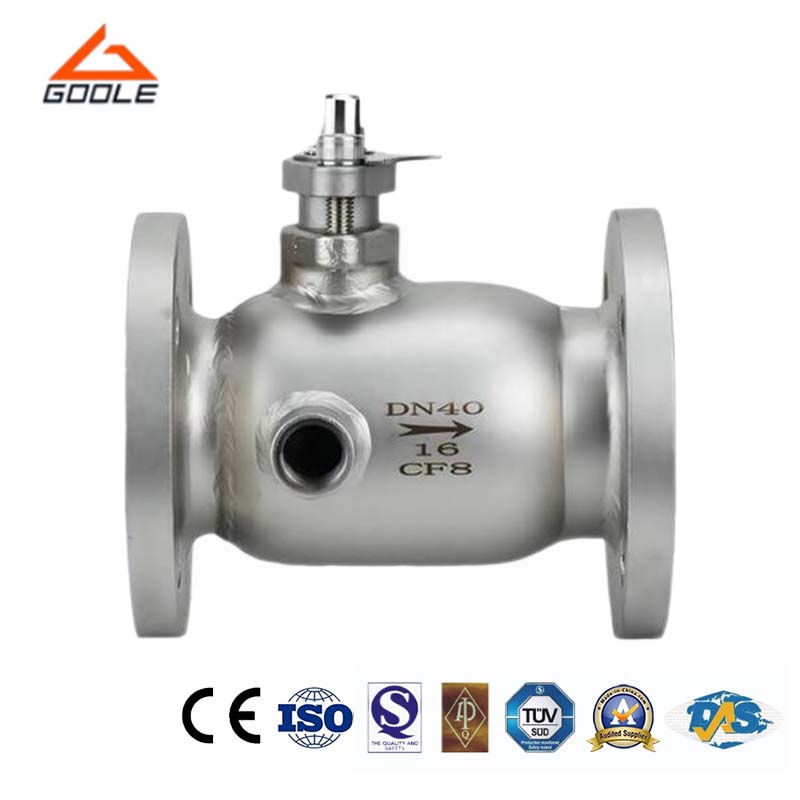

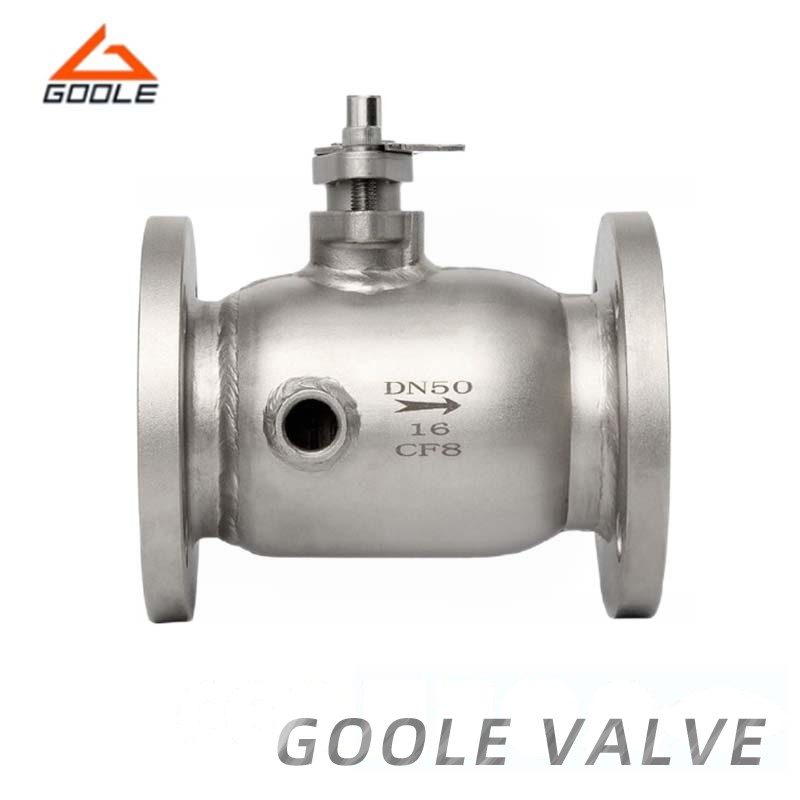

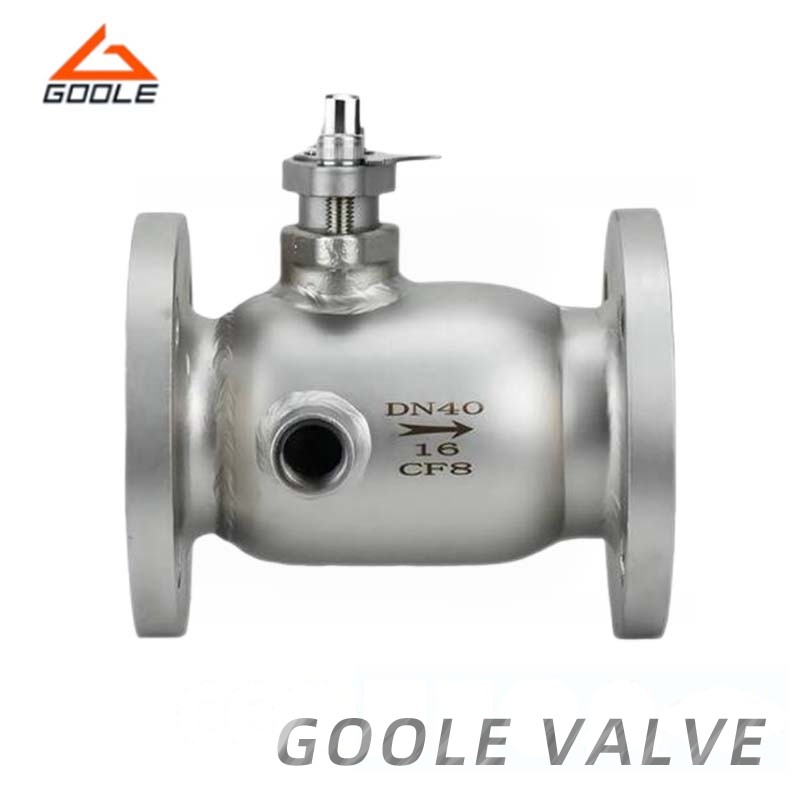

BQ41F is a specific model of insulated ball valve, which belongs to the same type of valve as flange gate valve. The difference is that its closing part is a sphere, which rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. Two piece ball valve and three piece ball valve are a new type of valve widely used in recent years. These valves should generally be installed horizontally in pipelines.
● High Thermal Insulation Performance: Its unique integral thermal insulation jacket design can effectively reduce the heat loss of the medium in the transmission process, improve energy utilization efficiency, especially suitable for the occasions that need to maintain the temperature of the medium.
● Easy Installation: Due to the use of integrated design, the connection parts are reduced, making the overall structure more compact, which not only reduces the installation space, but also simplifies the installation process and reduces the installation cost.
● Reliable Sealing Performance:The sealing surface of the flange ball valve is usually made of high quality materials and processed with precision to ensure good sealing when the valve is closed, effectively preventing medium leakage and improving the safety of the system.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

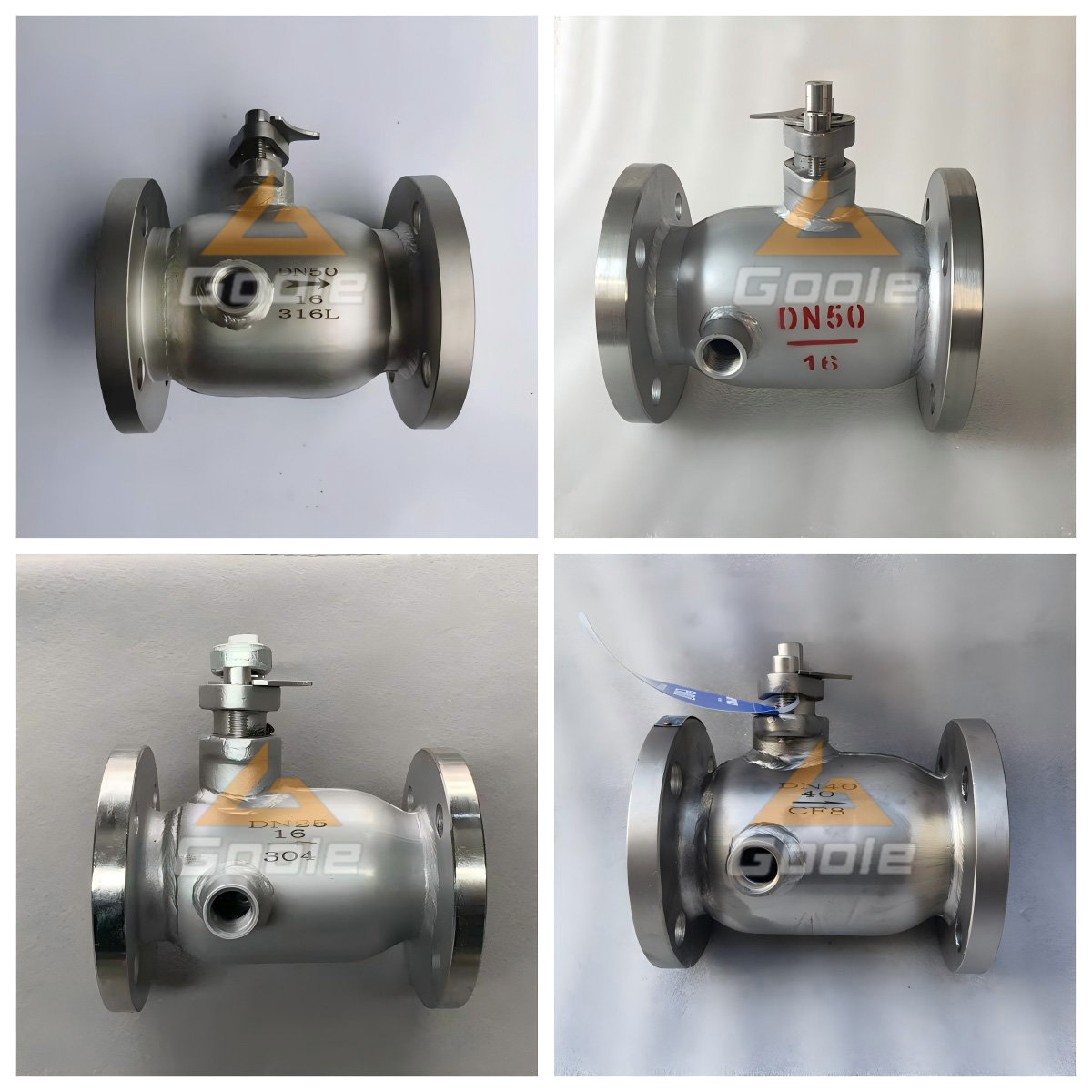

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated jacketed flanged ball valve is manufactured from high-quality materials, ensuring its exceptional durability and reliability. The valve features a unique design with an insulated jacket that effectively prevents heat loss during the medium's transmission, enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure customers receive timely technical support and solutions throughout their use. Choosing our integral insulated jacketed flanged ball valve will be a wise decision for you.
