The QJ41M integrated high-temperature ball valve is specifically designed for high-temperature environments. It boasts characteristics such as high temperature resistance, wear resistance, and corrosion resistance. This valve is suitable for media including water vapor, oil, thermal oil, and acid.
● Easy Operation: Rotate the sphere to switch actions effortlessly, eliminating the need for extra tools or complicated procedures, thereby markedly enhancing work efficiency.
● High Temperature Resistance: The valve body is typically crafted from high-grade cast steel, enabling it to function continuously and stably in high-temperature, high-pressure, and corrosive environments, thus prolonging the equipment's service life.
● Convenience: Featuring a compact structure and minimal installation space requirements, along with a straightforward installation process. Additionally, maintenance costs are kept low, as regular inspections and the replacement of seals and other consumable components are sufficient to maintain optimal operation.
| No. | Parts Name | Material |
| 1 | Body | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 2 | Seat | PTFE, R-PTFE, PEEK, PPL |
| 3 | Anti-static Spring | Stainless Steel |
| 4 | Stem | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 5 | O-ring | NBR, PTFE |
| 6 | Limited Plate | 1015+Cr, Carbon Steel+Cr |
| 7 | Lever | A216 WCB, 1025+Cr |
| 8 | Fix Nut | Stainless Steel |
| 9 | Backup Ring | A182 F304, F316 |
| 10 | Packing | PTFE, Graphite |
| 11 | Positioning Pin | Stainless Steel |
| 12 | Thrust Washer | PTFE |
| 13 | Gasket | PTFE, Graphite |
| 14 | Ball | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 15 | Bonnet | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 16 | O-ring | NBR, PTFE |
| 17 | Stud | A193 B7, B7M, B8, B8M |
| 18 | Nut | A194 2H, 2HM, 8, 8M |
Main Dimensions
| Model | Size(mm) | Dimensions(mm) | ||||||||
| QJ41M | inch | DN | L | D | D1 | D2 | b | Z-Φd | H | W |
| 3/4″ | 20 | 117 | 98 | 70 | 43 | 12 | 4-Φ15 | 75 | 130 | |
| 1″ | 25 | 127 | 108 | 79.5 | 51 | 12 | 4-Φ15 | 85 | 150 | |
| 11/4″ | 32 | 140 | 117 | 89 | 64 | 13 | 4-Φ15 | 96 | 190 | |
| 11/2″ | 40 | 165 | 127 | 98.5 | 73.2 | 15 | 4-Φ15 | 107 | 230 | |
| 2″ | 50 | 178 | 152 | 120.7 | 92 | 16 | 4-Φ19 | 118 | 240 | |
| 21/2″ | 65 | 190 | 177.8 | 139.7 | 104.7 | 18 | 4-Φ19 | 145 | 280 | |
| 3″ | 80 | 203 | 190.5 | 152.4 | 127 | 19 | 4-Φ19 | 160 | 310 | |
| 4″ | 100 | 229 | 229 | 190.5 | 157 | 24 | 8-Φ19 | 185 | 330 | |
| 5″ | 125 | 356 | 254 | 216 | 185.7 | 26 | 8-Φ22 | 230 | 600 | |
| 6″ | 150 | 394 | 279 | 241.3 | 216 | 26 | 8-Φ22 | 260 | 800 | |
| 8″ | 200 | 457 | 343 | 298.5 | 270 | 29 | 8-Φ22 | 310 | 1000 | |
| 10″ | 250 | 533 | 406 | 362 | 324 | 31 | 12-Φ25 | 350 | 1200 | |
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||

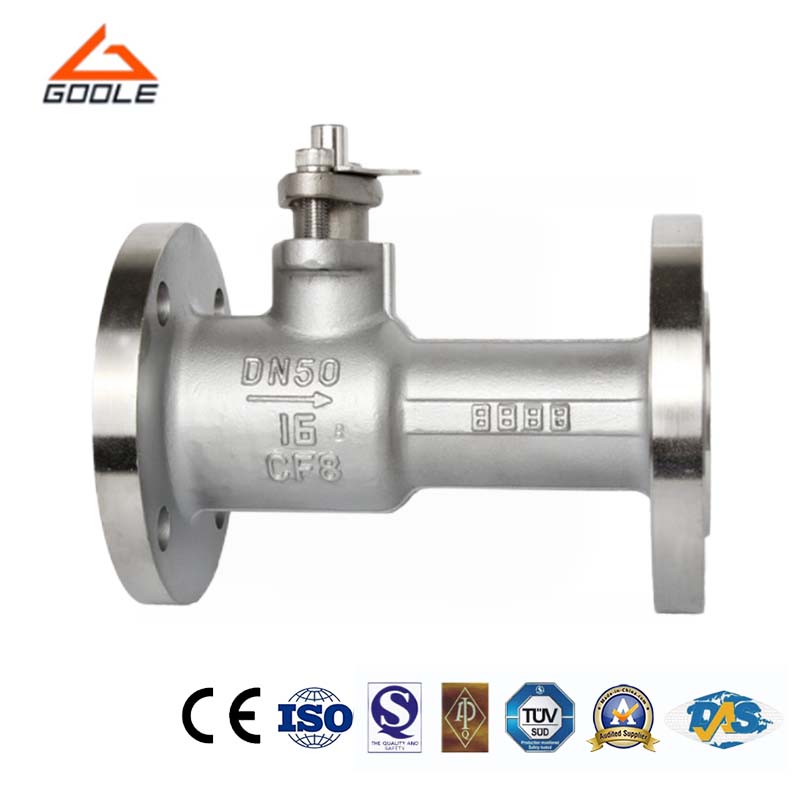

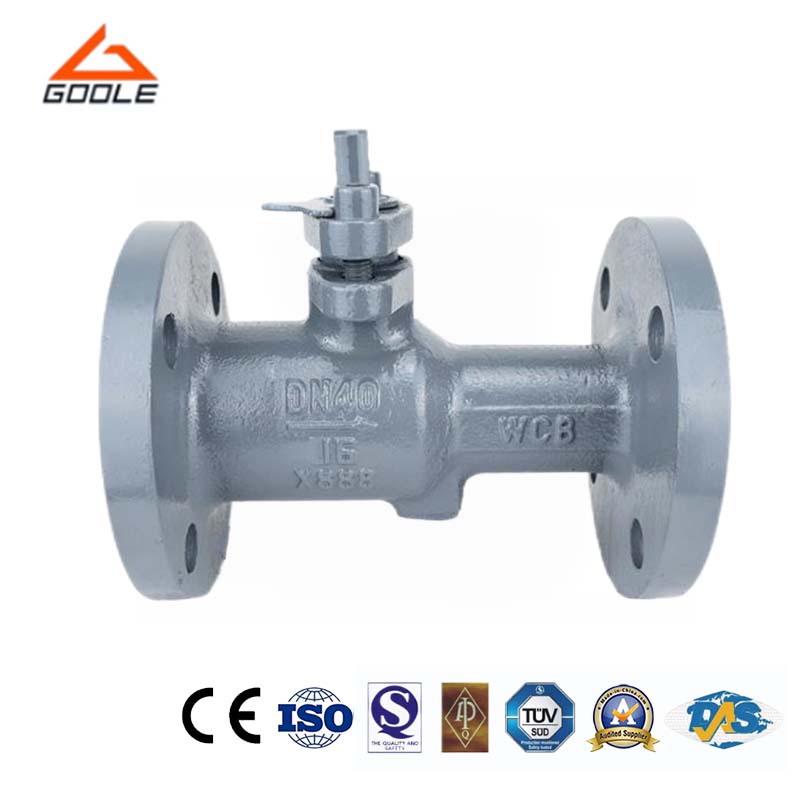

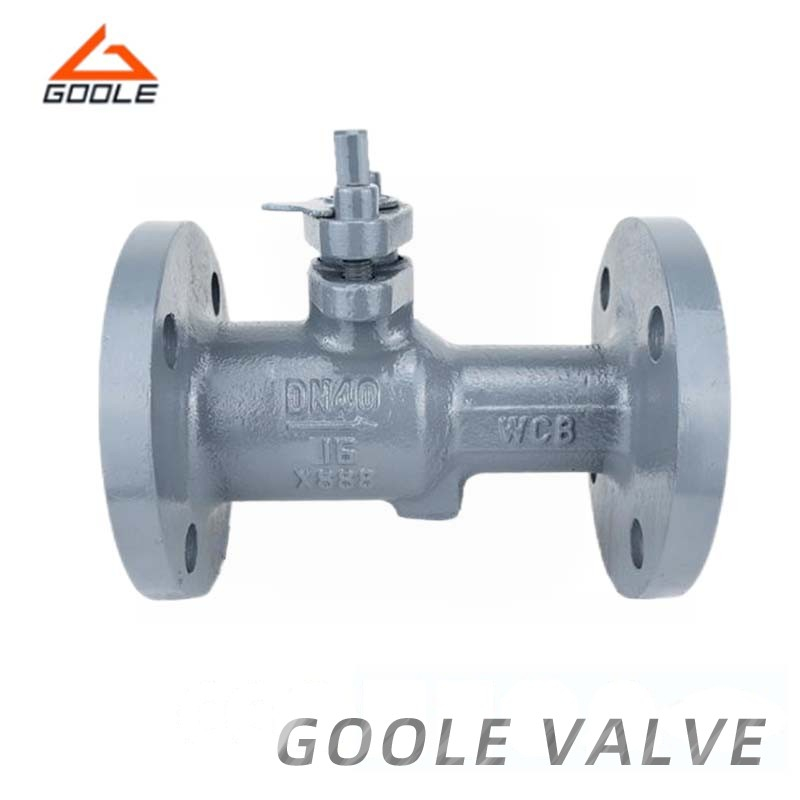

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our high-temperature ball valves are crafted from advanced materials and refined techniques, ensuring superior heat resistance and an extended service life. Designed for compactness and ease of installation, they save considerable space and reduce time costs. Each product undergoes thorough quality testing to meet industry standards, ensuring a trouble-free user experience. We provide comprehensive after-sales support, including technical consultation and repair services, to quickly address your needs.
