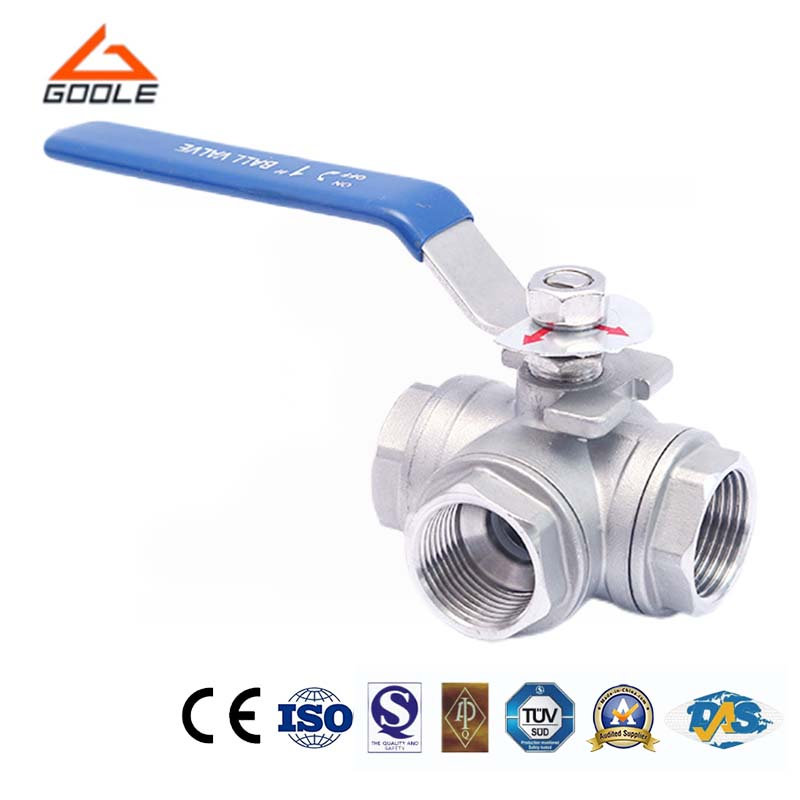

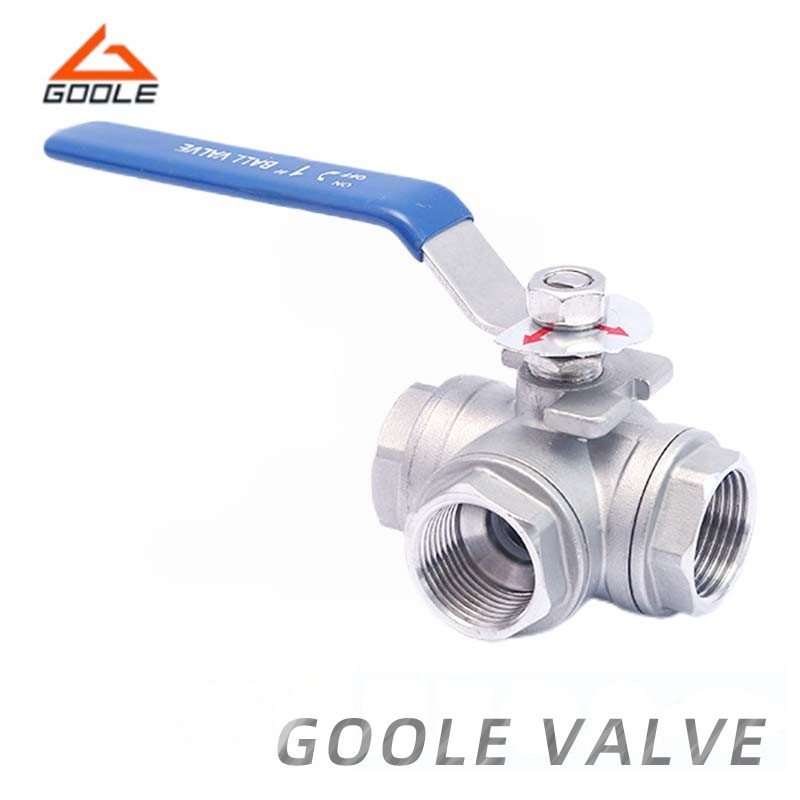

Thread three way ball valve has been widely used in chemical, petroleum, power, pharmaceutical, beer, food, dairy and beverage, cosmetic and engineering supporting industrial piping and other fields.Its unique design and superior performance make it an ideal choice for various applications. The three-way structure allows for flexible flow control, enabling the valve to direct fluid flow in multiple directions. Additionally, its durable construction ensures long-term reliability and stability, making it suitable for use in harsh industrial environments.
● Compact Structure: Featuring low flow resistance, it operates efficiently within a range of fluid control systems, thereby minimizing energy loss.
● Easy to Operate: The switch employs a unique spherical design for quick opening and closing. A mere 90-degree rotation is required, significantly enhancing work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are utilized to ensure reliable sealing under various working conditions, preventing fluid leakage.
ITEM | PART NAME | MATERIAL | ||
1 | CAP | CF8M | CF8 | WCB |
2 | THRUST WASHER | PTFE | ||
3 | STEM SEALING | PTFE | ||
4 | STOP NUT | SS304 | ||
5 | STEM NUT | SS304 | ||
6 | HANDLE COVER | PLASTIC | ||
7 | HANDLE | SS304 | ||
8 | STEM | SS316 | SS304 | SS304 |
9 | BODY | CF8M | CF8 | WCB |
10 | BALL SEAT | R-PTFE | PTFE | PTFE |
11 | GASKET | PTFE | ||
12 | BALL | SS316 | SS304 | SS304 |
13 | LOCKING PIN | SS304 | ||
MAIN DIMENSION
SIZE | L | D | W | H | H1 | R | C | TORQUE N.M | CV |
1/2" | 73 | 12 | 110 | 57 | 29 | 36 | M6 | 5 | 1.3 |
3/4" | 80 | 15 | 120 | 61 | 32 | 42 | M6 | 7 | 2 |
1" | 88 | 18 | 145 | 67 | 36.5 | 42 | M6 | 8 | 3.4 |
1-1/4" | 125 | 25 | 145 | 81 | 44 | 42 | M6 | 15 | 7.1 |
1-1/2" | 136 | 32 | 160 | 97 | 52.5 | 50 | M6 | 22 | 12.4 |
2" | 152 | 38 | 170 | 108 | 58.5 | 50 | M6 | 25 | 20.3 |
STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from premium materials, ensuring exceptional durability and reliability. Their innovative design guarantees precise and efficient fluid control, catering to the needs of a wide range of industrial applications. We provide comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valves, you will experience superior product performance and a worry-free user experience.
