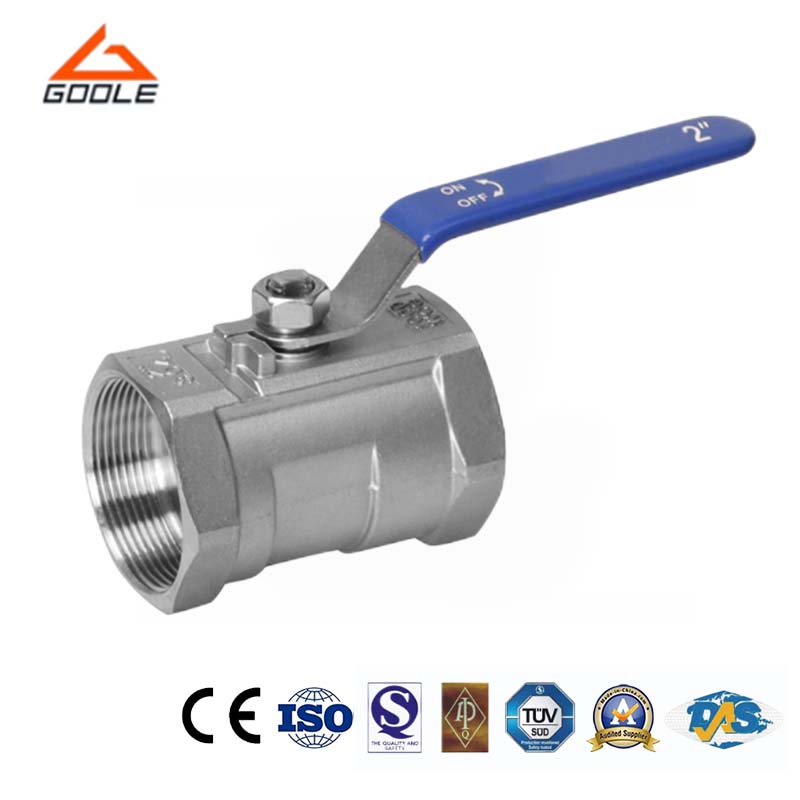

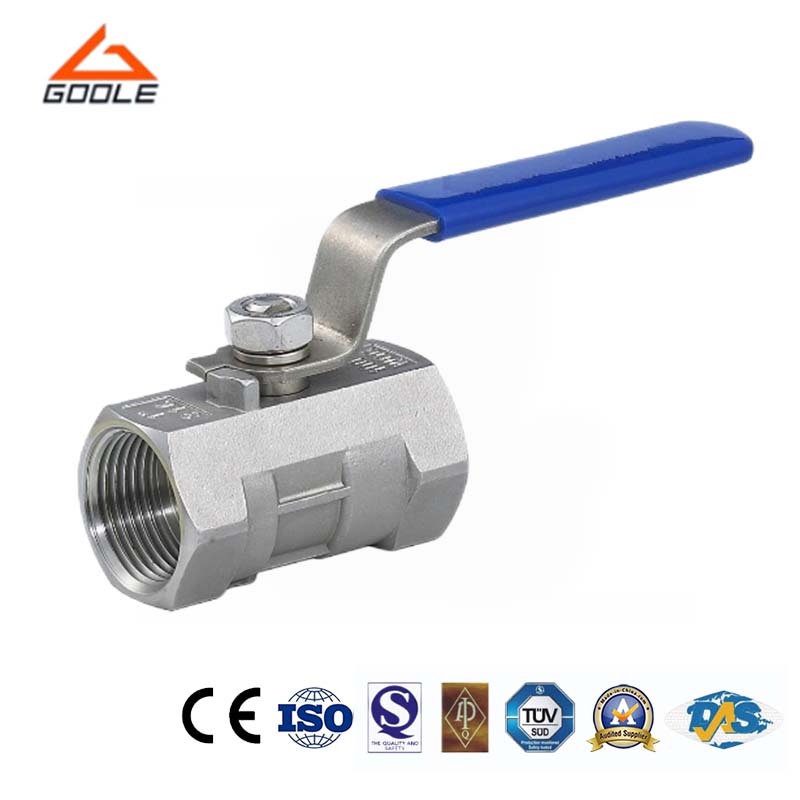

Single-piece ball valves and flanged gate valves are both types of valves, but they differ in that ball valves have spherical closing parts that rotate around the valve body's centerline to open and close. Ball valves are primarily used in pipelines to shut off, distribute, and alter the flow direction of media.
● Easy to Maintain: Simple structure, compact volume, and lightweight.
● Easy to Operate: Low torque, quick switching mechanism. The switch operates smoothly with minimal friction, and requires little force to open and close.
● Good Sealing Performance: The sealing surface is wear-resistant and self-cleaning, ensuring a long service life.

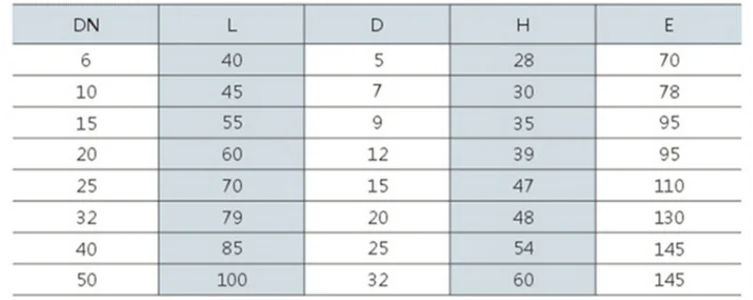

| Nominal diameter | DN6 - DN50 |
| Nominal pressure | PN16- PN64, 1.6 Mpa -6.4Mpa |
| Applicable temperature | -20~232~350 degree Celsius |
| Applicable medium | water, oil, gas,etc |
| Driving means | Handle ,electric actuators |

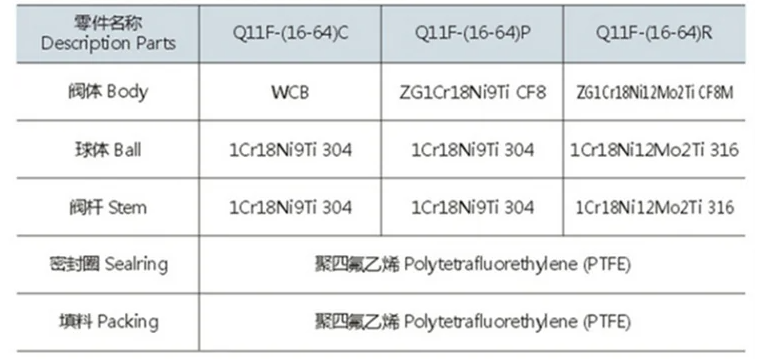

| Material | SS201,SS301,SS304,SS316, etc |
| Flange standard | JB79-59 |
Q:How does the butt-welded connection benefit the valve?
The threaded connection offers a secure, leak-proof fit that minimizes the risk of disconnection and leakage, ensuring long-term, reliable operation in high-pressure environments.
Q:Is the valve suitable for high-pressure and high-flow systems?
Yes, the valve is specifically designed to handle high-pressure environments and ensures optimal flow control even under demanding conditions.
This design is simple, compact, and lightweight, facilitating easy installation and maintenance, significantly saving time and labor costs. It is also easy to operate; the low torque design ensures a fast response, while the frictionless switch and minimal force required make operation smoother and more effortless, reducing operational difficulty and fatigue. By choosing our single ball valve, you will enjoy a convenient, efficient, and reliable fluid control solution.
