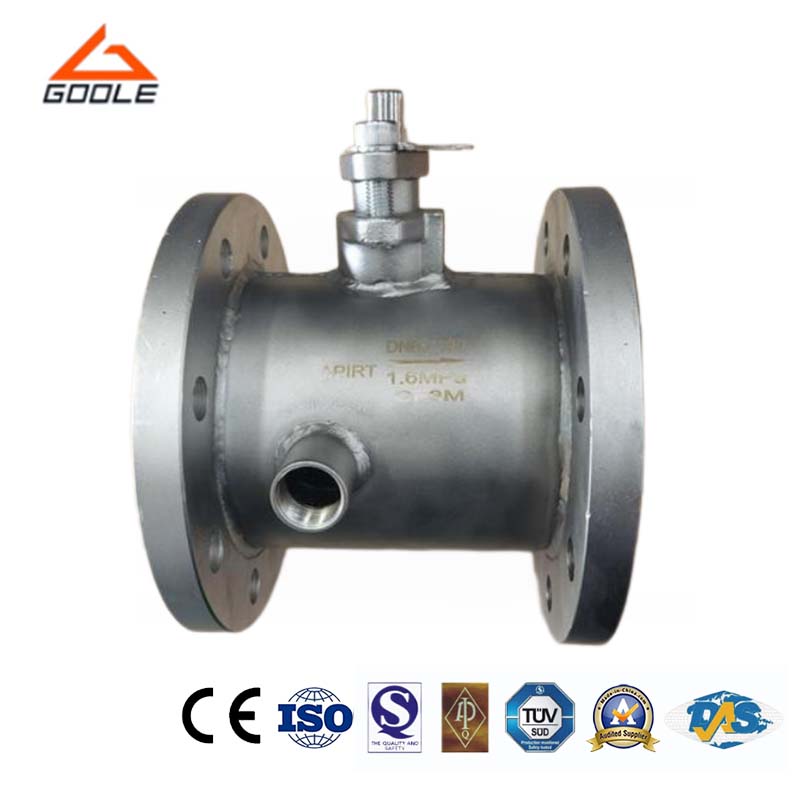

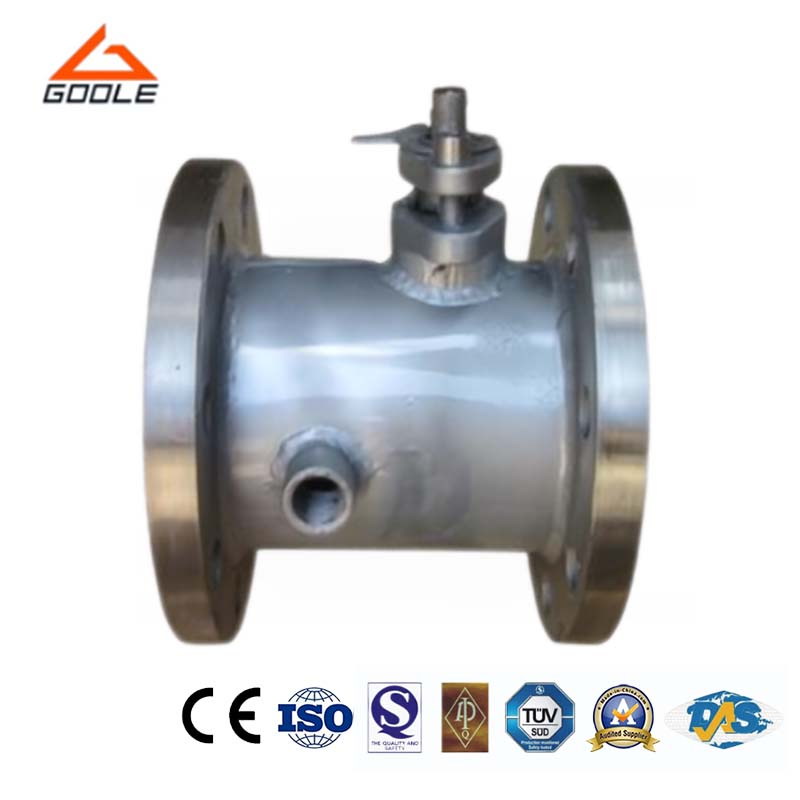

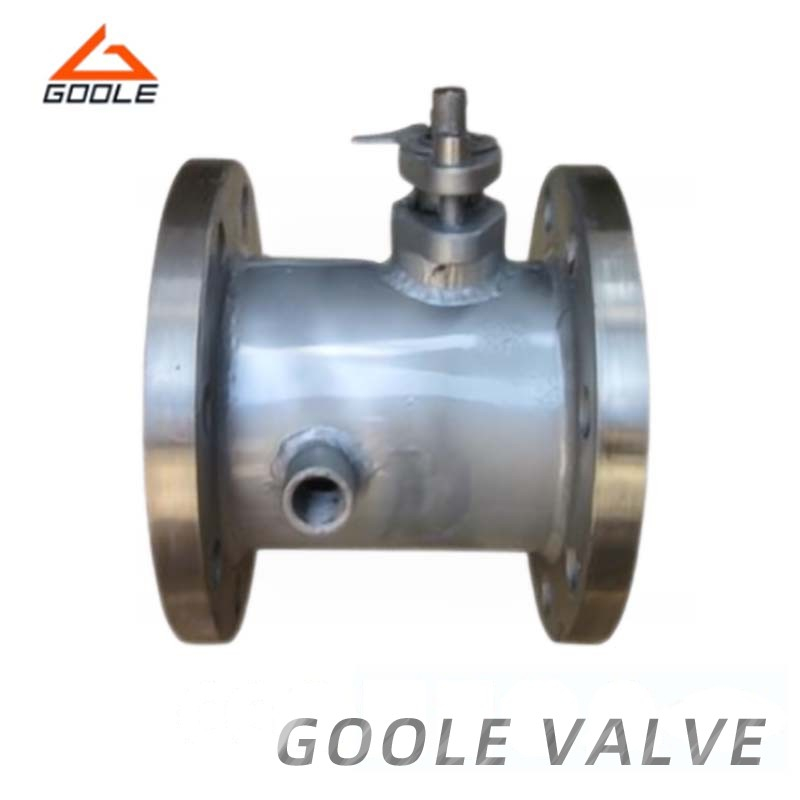

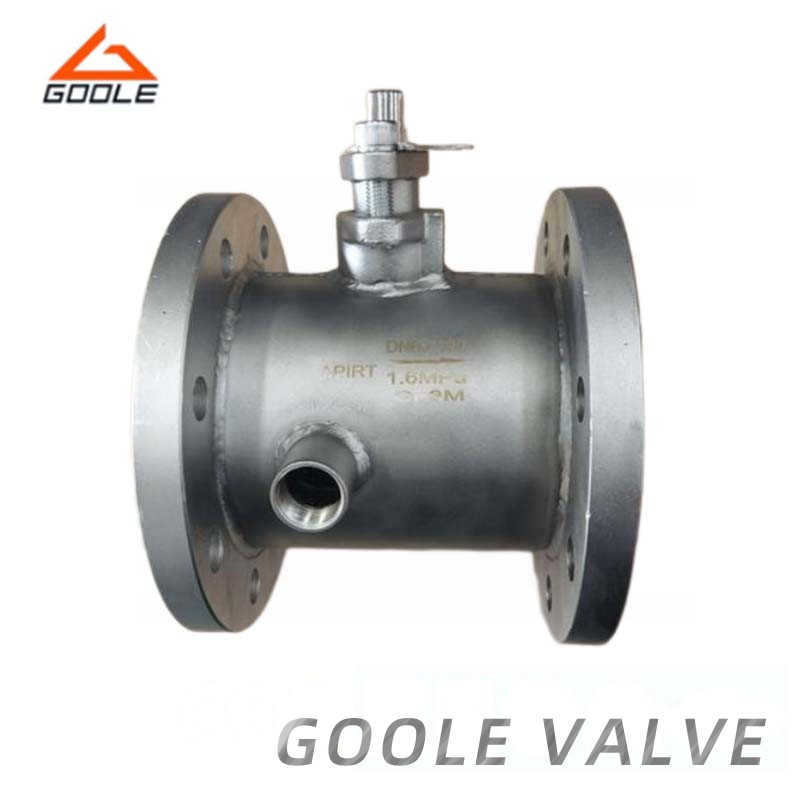

BQ41F is a specialized type of insulated ball valve, falling within the same category as flange gate valves. Its distinctiveness is found in its closure mechanism, which facilitates opening and closing by rotating a ball around the valve body's centerline. Ball valves are primarily utilized for isolating, distributing, and altering the direction of media flow within pipelines. In recent years, two-piece and three-piece ball valves have been widely adopted as innovative products. These valves are typically installed horizontally within the pipeline.
● High Thermal Insulation Performance: Its unique integrated insulation sleeve design effectively reduces heat loss during medium transmission, thereby improving energy utilization efficiency. It is particularly suitable for applications that require maintaining medium temperature.
● Easy Installation: The integrated design minimizes the number of connectors, making the overall structure more streamlined. This not only reduces the required installation space but also simplifies the installation process and lowers installation costs.
● Reliable Sealing Performance: The sealing surface of float valves is typically made of high-quality materials and precision machining to ensure effective sealing when the valve is closed, preventing medium leakage and thus improving system safety.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

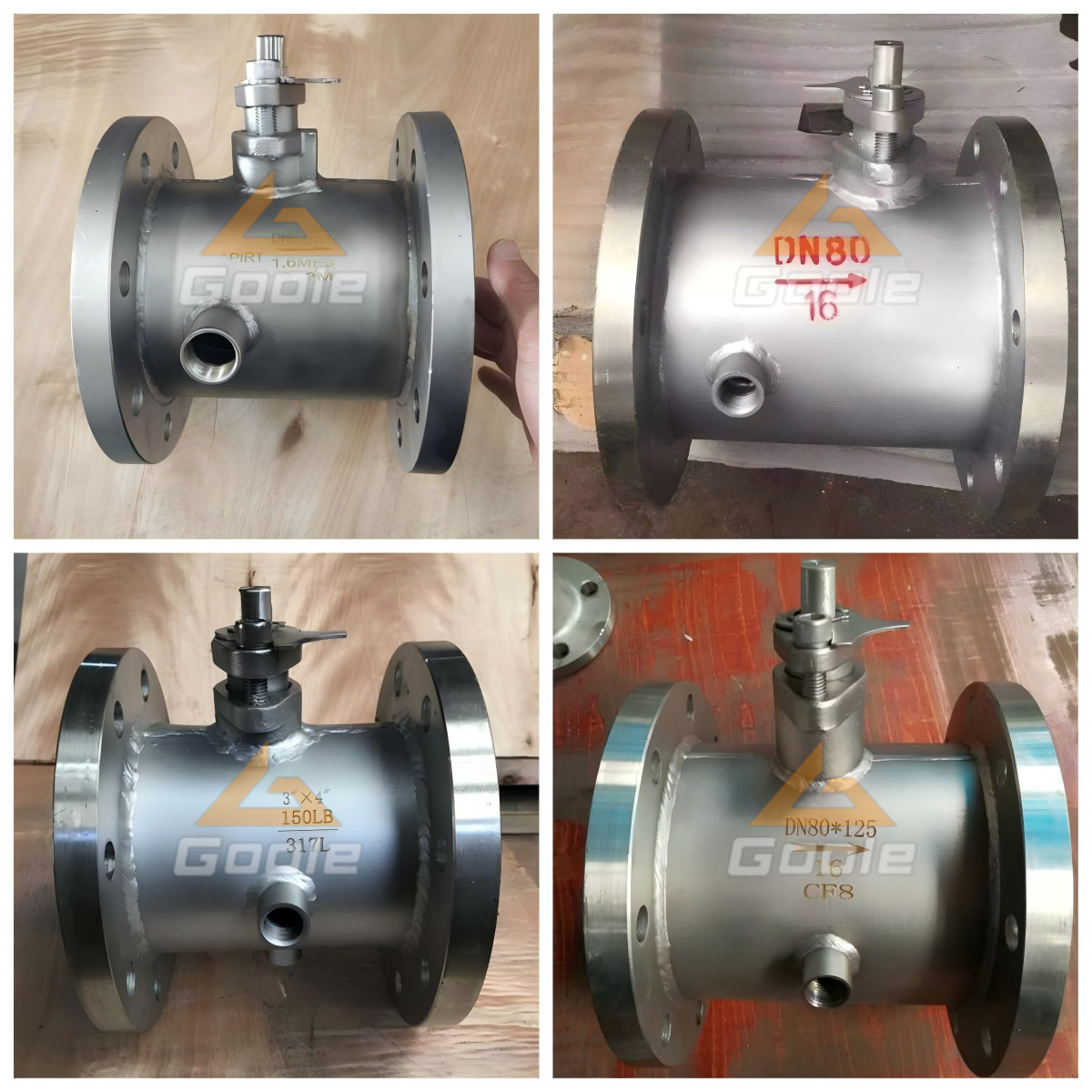

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flange ball valve is crafted from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique internal insulation sleeve design that effectively prevents heat loss during medium transmission, thereby enhancing energy efficiency. Our flange ball valves are user-friendly and easy to maintain, significantly reducing operating costs for users. We offer comprehensive after-sales service to ensure that customers receive timely technical support and solutions during use. Opting for our integral insulated sleeve flange ball valve is a prudent choice.
