In the world of industrial engineering, valves play a critical role in controlling the flow of liquids, gases, and other media through complex piping systems. Whether it’s in chemical plants, food processing, pharmaceutical production, or water treatment facilities, the proper functioning of valves is essential to ensure safety, efficiency, and accuracy in process control.
Because of the complexity and scale of industrial systems, engineers and technicians rely heavily on schematic diagrams to design, operate, and maintain equipment. These diagrams use standardized symbols to represent valves and other components, creating a universal language that transcends linguistic and cultural barriers. Among the various types of valves, the Three Way Ball Valve is particularly versatile, capable of switching, mixing, or diverting flow between multiple pipelines.
Understanding the symbol that represents a three way ball valve is vital for accurate interpretation of technical drawings, ensuring correct installation, operation, and maintenance. This article will explain the standard symbols used for three way ball valves, compare them to two way valve symbols, and discuss how to distinguish between the two common internal configurations — the L-Port and T-Port valves.
Before diving into the specific symbol for a three way ball valve, it’s important to recognize the standards that govern how valves are represented graphically in industrial schematics. The most widely adopted standards include:
ISO 10628 (International Organization for Standardization): This standard provides rules for the graphical representation of process flow diagrams, including piping and instrumentation diagrams (P&ID). It is widely used worldwide, especially in multinational projects.
ANSI/ISA 5.1 (American National Standards Institute/International Society of Automation): This North American standard details instrumentation symbols and identification for process control, including valve symbols.
DIN EN ISO 1219: This European standard covers symbols for fluid power systems and components, including hydraulic and pneumatic valves.
API (American Petroleum Institute) Standards: Specific to the oil and gas industry, these standards define symbols and diagrams used in petroleum refining and production.
These standards ensure consistency, clarity, and mutual understanding across engineers, operators, maintenance teams, and manufacturers.

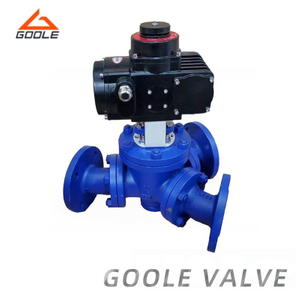

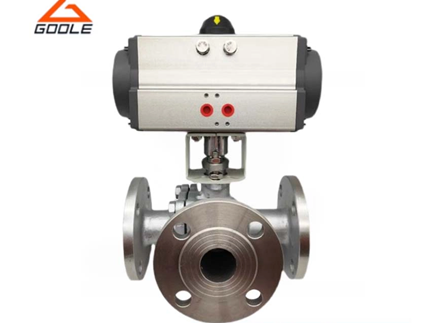

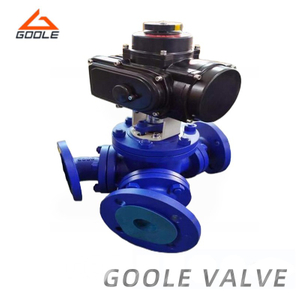

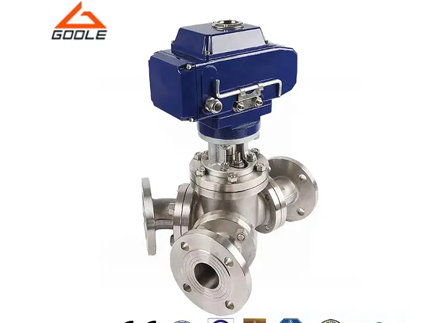

A Three Way Ball Valve is a valve with three ports and a spherical closure element (the ball) that controls the flow of media inside a pipeline. Unlike a two way valve that simply opens or closes a single flow path, the three way valve can:
Switch flow from one pipeline to another,
Mix fluids from two sources into one outlet,
Divert flow from one inlet to two outlets.
These capabilities make three way ball valves indispensable in applications requiring flexible flow control such as chemical processing, HVAC systems, and water distribution.
In P&ID and other process diagrams, valves are usually shown as circles with internal shapes indicating the flow path. The number of pipeline connections (ports) is represented by lines attached to the circle.
The three way ball valve symbol typically looks like a circle with three connecting lines. Inside the circle, the flow path is shown by a line or shape that represents the ball’s internal channel.
Two common internal shapes are used:
L-Port Symbol: Inside the circle is an “L” shaped path, showing that the valve connects two ports at a time, switching flow between them and closing the third.
T-Port Symbol: Inside the circle is a “T” shaped path, indicating the valve can connect all three ports at once or selectively connect any two, allowing mixing or diverting.
These internal shapes help readers of the diagram quickly understand the valve’s flow capabilities.
Understanding how three way ball valve symbols differ from the more common two way valves is fundamental to proper interpretation.
Depicted as a circle with a single straight line or slightly angled line inside, representing the internal bore of the ball.
Two pipeline lines connect to the circle, indicating the inlet and outlet.
The valve simply opens or closes a single flow path, acting as an on/off valve.
Depicted as a circle with three lines attached, representing the three ports.
Inside the circle, the internal flow path is shaped like an L or T, showing the possible flow configurations.
Allows switching between two flow paths, mixing, or diverting.
Confusing a two way valve with a three way valve during design or installation can lead to improper flow control and operational issues. The symbol provides immediate visual clues to the valve type, which helps avoid mistakes.
The two main internal configurations for three way ball valves — L-Port and T-Port — are visually and functionally distinct.
Symbol: The internal flow path is an “L” shaped line inside the circle.
Function: Connects two of the three ports at any time, with the third port closed. It switches flow between two paths but cannot connect all three simultaneously.
Applications: Used where flow switching between pipelines is required but mixing is not.
Flow Paths: Typically, the valve alternates flow from port 1 to port 2 or port 1 to port 3, but never all three at once.
Symbol: The internal flow path resembles a “T” inside the circle.
Function: Can connect all three ports simultaneously or any two of them. It allows mixing fluids from two inlets into one outlet or diverting flow from one inlet into two outlets.
Applications: Ideal for mixing or diverting applications in process systems.
Flow Paths: Flexible flow options; flow can go from any port to any combination of others.
When reading diagrams:
Look inside the valve circle for the shape: an “L” shape means a switching valve, a “T” shape means mixing/diverting.
Check the number and arrangement of the connecting lines.
Valve symbols in industrial schematics are far more than simple icons. They carry detailed information about valve type, function, flow path, and control method. For engineers, operators, and maintenance personnel, accurate interpretation of these symbols is critical.
With Three Way Ball Valves, distinguishing between two way valves and understanding the internal port configurations (L-Port or T-Port) through symbols ensures:
Correct valve selection for intended process control,
Safe and efficient system operation,
Reduced risk of errors in installation and maintenance,
Clear communication between design, procurement, and operational teams.
