In the world of industrial piping systems, valves play a crucial role in controlling the flow of liquids and gases. Among the many valve types available, the trunnion ball valve stands out for its strength, reliability, and ability to operate under high pressures. Known for their unique design and durability, trunnion ball valves are widely used in industries such as oil and gas, chemical processing, power generation, and water treatment.
This article explores the design, working principle, advantages, and applications of trunnion ball valves in detail, helping you understand why they have become such a trusted choice for critical flow control.

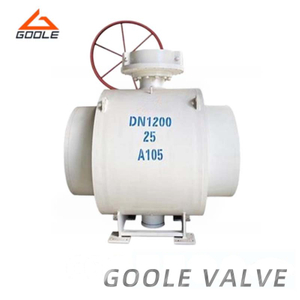

A trunnion ball valve is a type of quarter-turn valve that uses a rotating ball with a hole (called a bore) through its center to control flow. The term “trunnion” refers to the fixed shaft or support mechanism that holds the ball in place.
Unlike floating ball valves, where the ball is free to move slightly within the valve body, trunnion ball valves have their ball anchored by a trunnion at the bottom and a stem at the top. This anchoring method allows the valve to handle higher pressures and larger sizes while requiring less torque to operate.
Trunnion ball valves are especially valued for tight shut-off capabilities and consistent sealing performance, even in demanding conditions.
The trunnion ball valve’s design is carefully engineered to ensure reliable operation in challenging environments. Its main components include:
The outer casing that houses all the internal parts. It is usually made of materials like carbon steel, stainless steel, or alloy steel, depending on the application and fluid type.
A spherical component with a central hole (bore) that aligns with the pipeline to allow flow or rotates perpendicular to block it. In trunnion ball valves, the ball is supported by a trunnion to prevent excessive movement.
A fixed shaft or pin at the bottom of the ball that holds it securely in place. This feature helps withstand high pressures and reduces wear on the valve seats.
The stem connects the ball to the valve actuator (manual handle, pneumatic actuator, or electric motor) and transfers the rotational force needed to open or close the valve.
Soft or metal sealing rings that press against the ball to create a leak-proof seal. Trunnion ball valves often use spring-loaded seats to maintain tight sealing even under varying pressure conditions.
These prevent leakage around the stem, body joints, and other areas. High-quality seals are essential for safety and efficiency, especially in high-pressure applications.
The ball can be turned manually using a lever or gearbox, or automatically using pneumatic, hydraulic, or electric actuators for remote and precise control.
The operation of a trunnion ball valve is straightforward yet highly effective:
Open Position – When the ball’s bore is aligned with the pipeline, fluid flows freely through the valve.
Closed Position – Rotating the ball 90 degrees moves the bore perpendicular to the pipeline, blocking flow completely.
Sealing Mechanism – The trunnion and stem keep the ball stable, while spring-loaded seats press against the ball to maintain a tight seal regardless of pressure fluctuations.
Because the ball is anchored, line pressure does not push the ball into the seats as it does in floating ball valves. This results in lower operating torque, allowing for smaller actuators and easier operation.
Trunnion ball valves are preferred in many industrial settings because they offer several advantages:
The fixed trunnion design distributes the pressure load more evenly, making these valves suitable for large pipelines and high-pressure applications.
Since the ball doesn’t rely on fluid pressure to press against the seats, it requires less force to operate. This reduces actuator size and energy costs.
Spring-loaded seats ensure a tight seal even at low pressures, and the sealing performance is reliable over long periods.
The robust design, corrosion-resistant materials, and reduced seat wear mean these valves can operate efficiently for years with minimal maintenance.
They can be operated manually, or automated with pneumatic, hydraulic, or electric actuators, depending on the process requirements.
Many trunnion ball valves include blow-out proof stems, anti-static devices, and fire-safe designs for added safety in critical industries.
The choice of material affects the valve’s corrosion resistance, durability, and suitability for specific fluids. Common materials include:
Carbon Steel – Strong, cost-effective, suitable for non-corrosive fluids.
Stainless Steel – Resistant to corrosion, ideal for chemical and marine applications.
Alloy Steel – Enhanced strength for extreme pressure and temperature.
Special Alloys (e.g., Inconel, Hastelloy) – Used in highly corrosive or extreme environments.
Seats and seals are often made from PTFE (Teflon), reinforced PTFE, PEEK, or metal depending on temperature and pressure requirements.
Trunnion ball valves are widely used in industries where reliability, safety, and performance are essential. Some of the main applications include:
Used in upstream, midstream, and downstream operations for crude oil, natural gas, and refined products. Their ability to handle high pressures and harsh environments makes them ideal for pipeline service.
Trunnion ball valves can handle corrosive chemicals, high temperatures, and varying pressures, ensuring safe and reliable process control.
Used in steam, cooling water, and fuel handling systems in both conventional and renewable power plants.
Reliable for large-diameter pipelines in municipal and industrial water distribution systems.
Capable of controlling abrasive slurries, chemicals, and high-pressure systems in heavy industry.
While trunnion ball valves are durable, proper maintenance is key to ensuring long-term performance:
Regular Inspection – Check for leaks, wear, and corrosion on seats, seals, and stems.
Lubrication – Keep moving parts well-lubricated to reduce wear.
Actuator Calibration – If automated, ensure actuators are functioning correctly.
Cleaning – Prevent buildup of deposits that could affect operation.
Following manufacturer-recommended maintenance schedules helps extend the valve’s service life and maintain optimal performance.
While both types are ball valves, they differ in design and performance:
Trunnion Ball Valve – Ball is fixed; suitable for large sizes and high pressures; lower torque; spring-loaded seats.
Floating Ball Valve – Ball is free to move slightly; best for smaller sizes and lower pressures; sealing relies on line pressure pushing the ball against the seats.
Choosing between them depends on pipeline size, pressure rating, and fluid characteristics.
Even though they may cost more initially than floating ball valves, trunnion ball valves offer lower operational costs, higher safety, and longer life. In industries where downtime is costly, this reliability makes them a smart investment.
They also align with modern industry trends toward automation, energy efficiency, and environmental protection, as they can be integrated with remote monitoring and control systems.
Trunnion ball valves are an engineering solution that combines strength, precision, and durability for critical industrial flow control. Their unique design ensures excellent performance in high-pressure and large-diameter applications, while their versatility makes them suitable across multiple industries.
By understanding their design, function, and benefits, engineers and operators can make informed decisions when selecting valves for complex systems. Whether in oil and gas pipelines, chemical plants, or water treatment facilities, trunnion ball valves deliver the performance and reliability modern industries demand.
