Pneumatic Actuated Sanitary Quick Installation Three-Way Ball Valve

Product Introduction

The pneumatic actuated sanitary quick installation three-way ball valve is engineered with an upper-mounted structure, deliberately designed to reduce connection bolts on the valve body during high-pressure fluid handling and large-diameter pipeline conditions. This configuration significantly enhances mechanical reliability and actively counteracts the stress of system weight on the valve's daily operation. Crafted from premium 316L or 304 stainless steel, the internal cavity features a gleaming, mirror-polished finish (Ra<0.4μm) that feels exceptionally smooth to the touch, effectively eliminating media residue and preventing bacterial growth. Equipped with a rapid-response single or double-acting pneumatic actuator, operators can hear the crisp, precise engagement as it seamlessly integrates with automated control systems. It serves as an essential fluid routing component for industries requiring strict hygiene, such as dairy processing, craft brewing, biological pharmaceuticals, cosmetics, and fine chemical manufacturing.

Product Features

● Compact & Hygienic Structure: Featuring a structurally optimized body with exceptionally low flow resistance, this valve operates with maximum efficiency within complex fluid control systems, reducing energy loss. The standard quick-clamp connection leaves no dead angles, fully supporting Clean-in-Place (CIP) and Sterilization-in-Place (SIP) procedures to maintain pristine sanitary conditions.

● Versatile Flow Configuration & Easy Operation: Available in both L-type and T-type three-way port configurations, it offers remarkable flexibility for fluid diversion, mixing, or directional switching. The pneumatic actuator ensures quick opening and closing with a simple 90-degree rotation, accelerating process cycle times and boosting operational output without manual strain.

● Excellent Sealing & Regulatory Compliance: Utilizing advanced PTFE/RPTFE sealing materials combined with a precision-machined spherical core, it guarantees reliable, leak-proof performance across fluctuating temperatures and pressures. Fully compliant with FDA, 3A, and CE international sanitary standards, it provides absolute production safety for food, beverage, and pharmaceutical processing lines.

Product Details

Understanding the exact material composition of your fluid control components is crucial for maintaining system integrity. Below is the comprehensive breakdown of every part within our sanitary three-way ball valve. From the robust CF8M body to the resilient PTFE packing, each component is deliberately selected for its outstanding resistance to corrosive cleaning agents and mechanical wear. This careful material selection ensures a prolonged operational lifespan even in the most demanding processing environments.

Proper sizing is critical for achieving optimal flow rates and minimizing pressure drops across your network. The following dimension list provides exact measurements for all available nominal pipe sizes (NPS), ranging from 1/4" to 3". These precise specifications facilitate straightforward integration into your existing pipeline architecture, ensuring a perfect fit with standard ISO5211 mounting pads while reducing installation downtime.

Dimension List.

Technical Parameters

Rigorous testing is the foundation of dependable fluid management. The technical parameters outlined below detail the comprehensive pressure testing protocols each valve undergoes before deployment. Our testing regimen includes shell tests, sealing tests, and back seal tests using both water and air mediums. These evaluations confirm the valve's structural integrity and leak-tight performance under extreme pressure conditions, ranging up to 900 Lbf/in2 for specific test items. By adhering to these stringent benchmarks, we guarantee that the valve will withstand unexpected pressure spikes and continuous heavy-duty cycles without compromising safety or efficiency in your facility.

Pressure Test.

Product Display

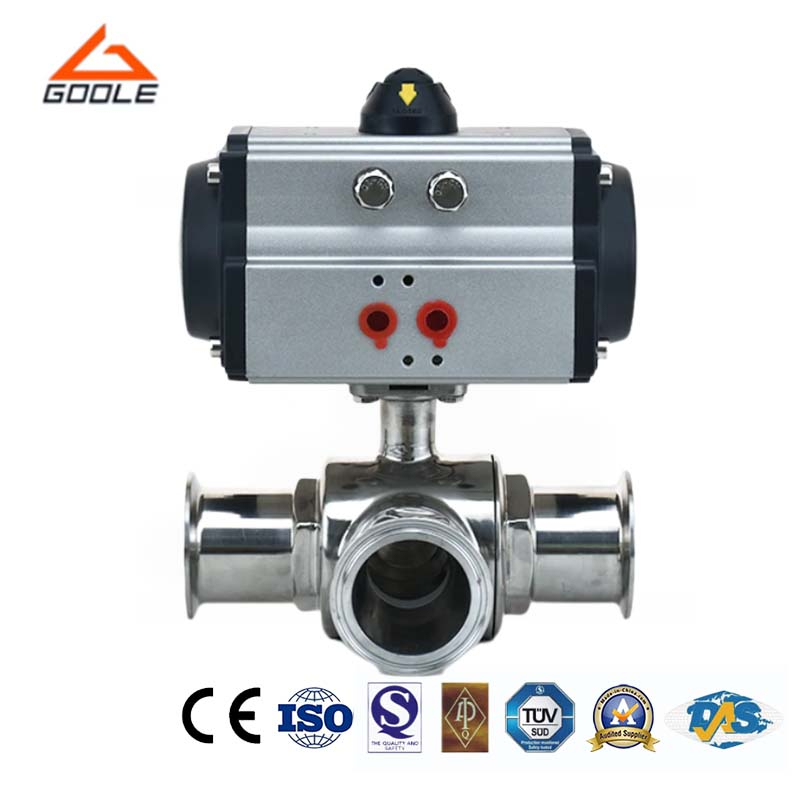

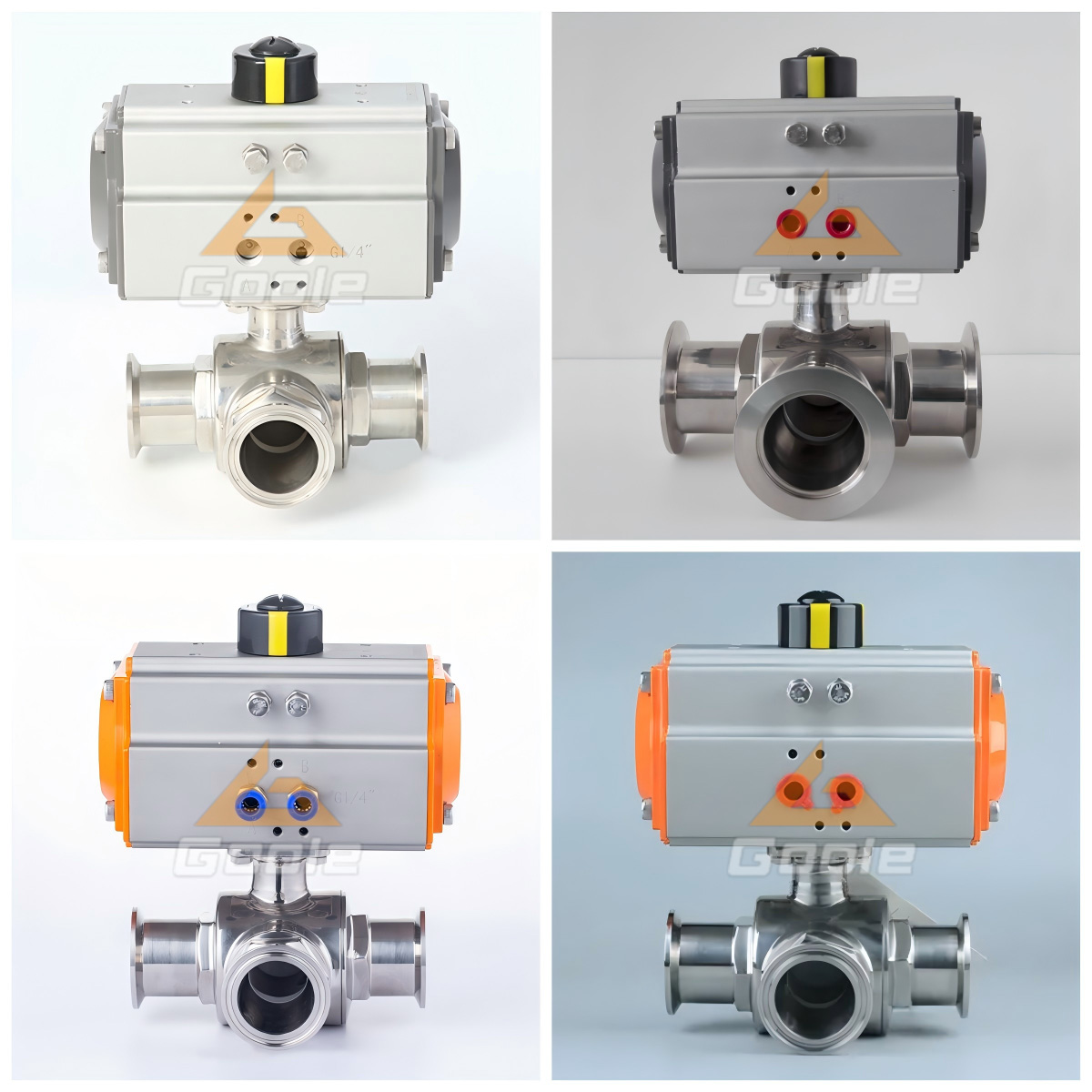

Visualizing the precise engineering of our pneumatic actuated sanitary ball valve helps in understanding its robust construction. The display below showcases the gleaming, mirror-polished exterior that not only presents a professional appearance but also actively repels dust and contaminants in cleanroom environments. Notice the heavy-duty pneumatic actuator mounted securely on top, featuring a compact yet powerful housing designed for millions of trouble-free cycles. The quick-clamp ends are machined with exact tolerances, ready to securely mate with your sanitary tubing. Every curve and joint reflects a commitment to hygienic design, eliminating crevices where bacteria could hide, and providing a tactile sense of industrial-grade durability.

Frequently Asked Questions（FAQs）

Q1: What is a Three-Way Ball Valve and how does it function?

A three-way ball valve is a specialized directional control valve featuring three distinct passages and a precision-machined spherical core. Depending on whether it uses an L-port or T-port configuration, it allows operators to divert fluid flow from one line to another, mix two different media streams into a single outlet, or completely shut off the flow, offering immense versatility for complex piping networks.

Q2: Can the valve handle high-pressure and high-temperature applications?

Yes, this pneumatic sanitary ball valve is specifically engineered to handle demanding high-pressure environments while ensuring reliable, leak-free performance. The robust stainless steel construction and advanced PTFE/RPTFE seat materials allow it to withstand aggressive steam sterilization (SIP) temperatures and intense pressure fluctuations without deformation or loss of sealing capability.

Q3: How does the pneumatic actuator improve processing efficiency?

The integrated pneumatic actuator replaces manual turning with automated, air-driven operation. This guarantees rapid response times, precise flow control, and effortless integration into your facility's centralized control systems, drastically reducing manual labor and minimizing the risk of human error during critical processing batches.

Why choose us?

Sourcing the right sanitary components is vital for your production line's success and regulatory compliance. Our three-way ball valves are meticulously crafted from verified, premium-grade materials, ensuring exceptional durability and long-term reliability. Their innovative, hygienic design enables precise and efficient fluid control, fully meeting the stringent demands of modern food, beverage, and pharmaceutical applications. Furthermore, we implement rigorous quality control: every single valve undergoes 100% strict sealing and pressure holding tests before leaving our facility. We also provide comprehensive material certification and full production traceability reports for your compliance records. Backed by our dedicated after-sales support team, any operational inquiries are resolved promptly. Choosing our fluid control solutions means investing in superior performance, regulatory peace of mind, and uninterrupted production.
