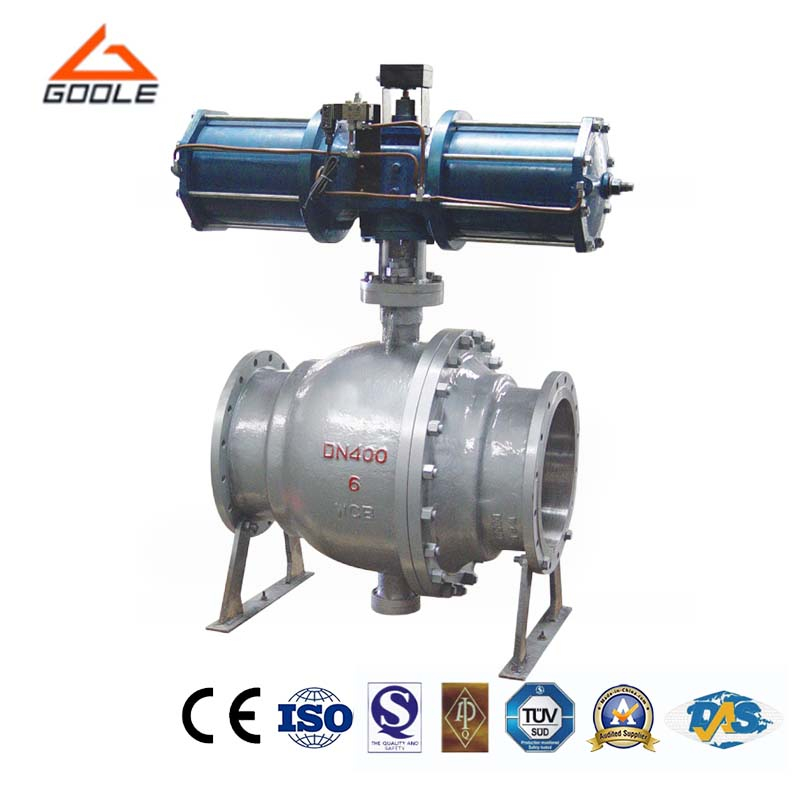

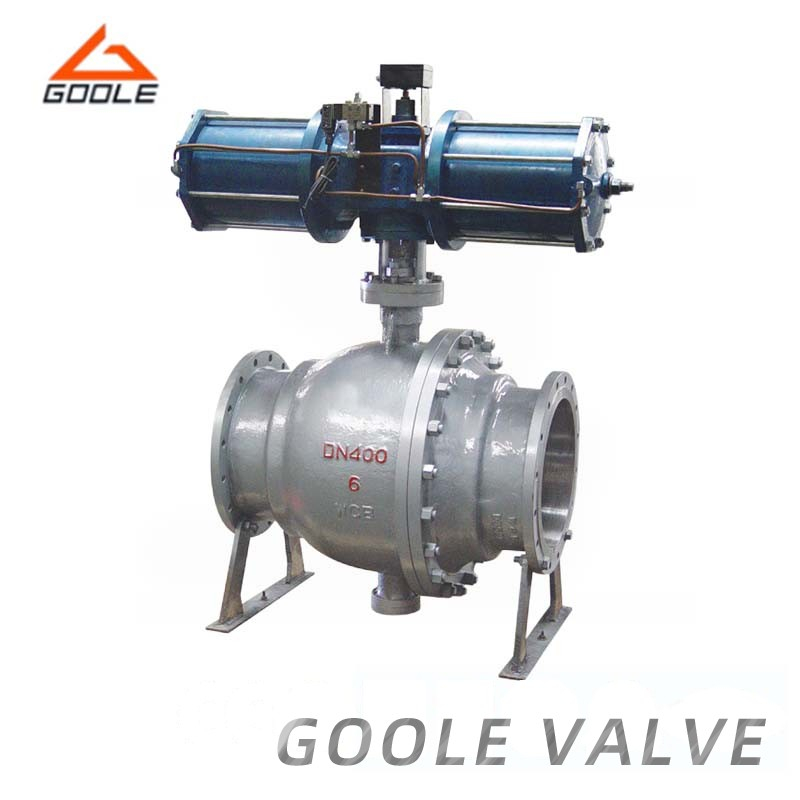

The 3PCS pneumatic driven forged steel ball valve combines the durability of forged steel with the accuracy of pneumatic drive, making it an ideal choice for applications that require reliable flow management under high pressure conditions. The valve adopts a floating ball design, which can automatically adjust according to the flow rate of the medium, ensuring consistent sealing and smooth operation.
Pneumatic actuators allow for automatic and precise control of fluid flow, greatly reducing the need for manual operation and improving the efficiency of pipeline systems. This valve has fast and reliable opening and closing functions, making it ideal for industries that require rapid adjustment of fluid flow, such as chemical processing, water treatment, and oil and gas operations.
● Pneumatic Actuation:Allows for precise, automatic control of fluid flow, reducing the need for manual intervention and improving system automation.
● Shear Force Resistance:The V-incision metal seat design allows the valve to handle fiber and small solid particles, such as pulp, without compromising sealing performance, ensuring smooth operation even with challenging media.
● Precise Flow Control:Providing precise conditioning and reliable positioning, the valve has approximately the same percent flow characteristics, enabling precise control of flow with an impressive adjustable ratio of 100:1 for multifunctional applications.
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC |
| Soft Seal | -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on. |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of bi-directional sealing?
Bidirectional sealing ensures that the valve can operate effectively under both forward and reverse flow conditions, preventing fluid leakage and ensuring system safety.
Q:What are the actuation options available for this valve?
The valve can be equipped with pneumatic, electric, or manual actuators, offering flexibility depending on your application needs.
Q:How does the floating ball design improve the valve’s performance?
The float design can automatically adjust the flow rate to ensure optimal sealing and smooth operation, preventing leakage under fluctuating pressure conditions.
3 PCS pneumatic forged steel ball valve is ideal for high pressure piping system for efficient fluid regulation and accurate flow control. The valve uses a pneumatic drive mechanism, can quickly open and close the operation, and has a two-way sealing function, providing excellent performance and flexibility for a variety of industrial applications. Our team is dedicated to providing customized solutions to your specific needs, ensuring that your plumbing system achieves optimal performance and maintains long-term reliability.
