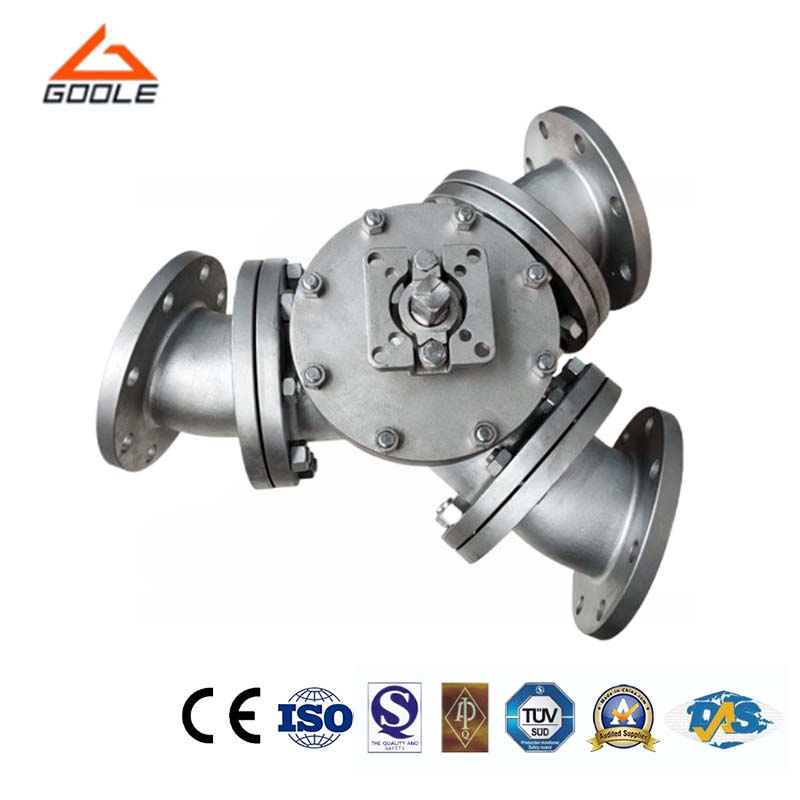

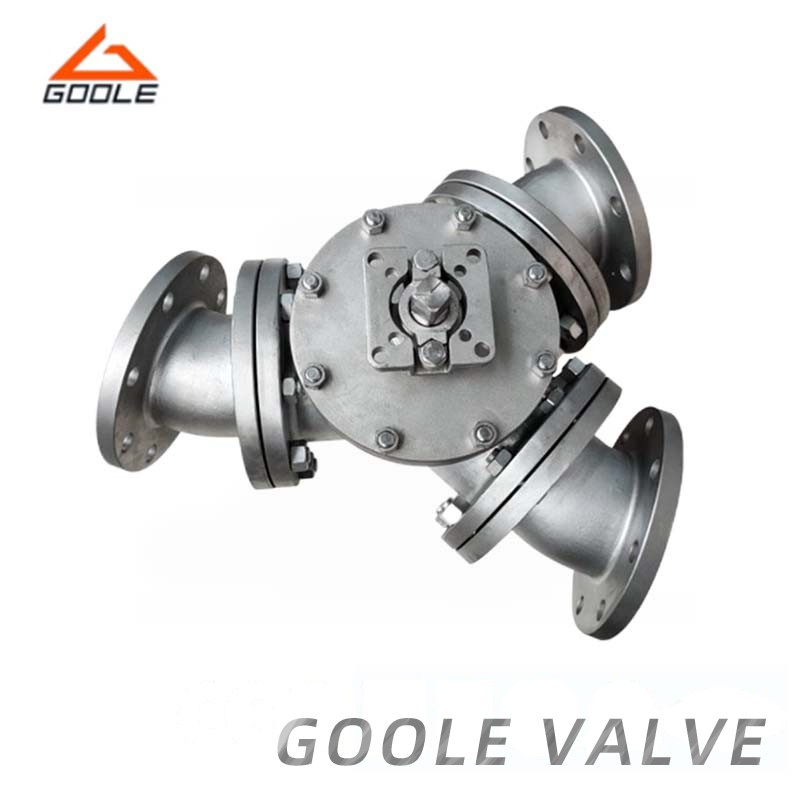

Forged Y-shaped three-way ball valve is a commonly used valve in pipeline systems, in which the control of fluid direction is crucial. Its unique Y-shaped design allows for fluid control between one inlet and two outlets, making it ideal for applications that require fluid transfer or merging. This valve is designed to facilitate switching between channels and provide flexibility in connecting or closing two vertical channels. This function can achieve efficient fluid diversion or distribution in medium mixing or diversion applications.
The valve is made of forged steel, ensuring durability and strength, and can provide long-term reliability even under high pressure conditions. The Y-shaped valve adopts a three seat or double seat sealing design, which has excellent sealing performance and is very suitable for systems that require leak proof operation and minimal flow resistance.
● Y-Shaped Design: Can achieve efficient fluid diversion and distribution between one inlet and two outlets.
● Multiple Sealing Methods: The valve adopts soft sealing, hard sealing and fireproof valve seat, which can flexibly meet the special needs of different working conditions. Floating ball is used for DN150 below, and fixed ball is used for DN150 above.
● Emergency Sealing Structure: Auxiliary sealing structure can be installed on the valve seat, and grease injection valve is provided to carry out temporary sealing in emergency situations. The valve stem can be extended as required to adapt to underground installation.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Q1：Can this valve be used for both diversion and merging of fluids?
Yes, the Y-shaped design allows the valve to efficiently divert fluid from one inlet to two outlets or merge two fluid flows into a single outlet, making it versatile for various fluid control needs.
Q2:How does the Y-shaped design improve fluid control?
The Y-shaped design allows for seamless diversion and distribution of fluid, ensuring smooth flow and reducing pressure drop, which is ideal for applications requiring flexible flow direction.
Q3:What are the benefits of using this valve in medium mixing or shunting applications?
This valve provides excellent control over fluid flow, allowing for precise mixing or redirection of fluid between multiple paths, enhancing the efficiency of medium mixing or shunting processes in complex systems.
Our Forged Y-shaped Three-way Ball Valve provides excellent flow control while minimizing turbulence to ensure smooth operation. Its durable forged steel structure ensures strength and durability, making it a reliable choice for a variety of industrial pipeline configurations.
