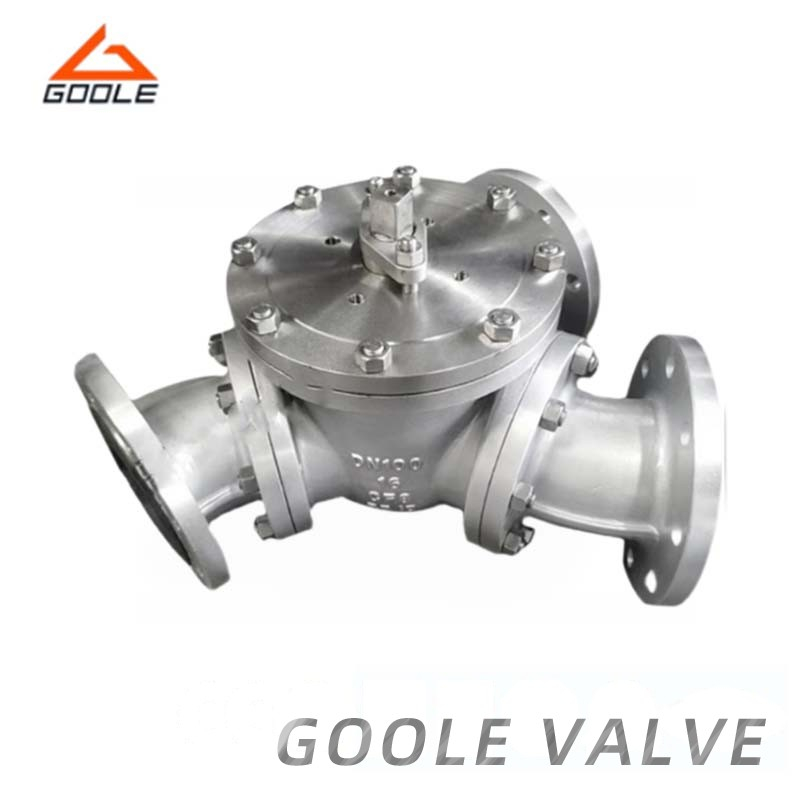

The Y-shaped three-way float valve is a commonly used valve in pipeline systems to control the flow of fluid. Its unique Y-shaped design allows for fluid control between a single inlet and two outlets, making it suitable for situations where fluid needs to be diverted or merged.
● Y-Shaped Design: This design facilitates efficient fluid diversion and distribution between a single inlet and dual outlets.
● Multiple Sealing Options: The valve provides a variety of sealing options, such as soft seal, hard seal and fireproof valve seat, to meet the unique needs of different operating environments. The valve with a diameter less than DN150 uses floating ball design, while the valve with a diameter greater than DN150 uses fixed ball.
● Emergency Sealing Structure: The valve seat can be equipped with auxiliary sealing structure, which has an oil injection valve for temporary sealing in emergency, and the valve stem can be extended to facilitate underground installation as required.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Q1：Can this valve be used for both diversion and merging of fluids?
Yes, the Y-shaped design allows the valve to efficiently divert fluid from one inlet to two outlets or merge two fluid flows into a single outlet, making it versatile for various fluid control needs.
Q2:How does the Y-shaped design improve fluid control?
The Y-shaped design allows for seamless diversion and distribution of fluid, ensuring smooth flow and reducing pressure drop, which is ideal for applications requiring flexible flow direction.
Q3:What are the benefits of using this valve in medium mixing or shunting applications?
This valve provides excellent control over fluid flow, allowing for precise mixing or redirection of fluid between multiple paths, enhancing the efficiency of medium mixing or shunting processes in complex systems.
Our Forged Y-shaped Three-way Ball Valve provides excellent flow control and minimizes turbulence while ensuring smooth operation. Its durable forged steel structure ensures strength and durability, making it a reliable choice for a variety of industrial piping configurations.
