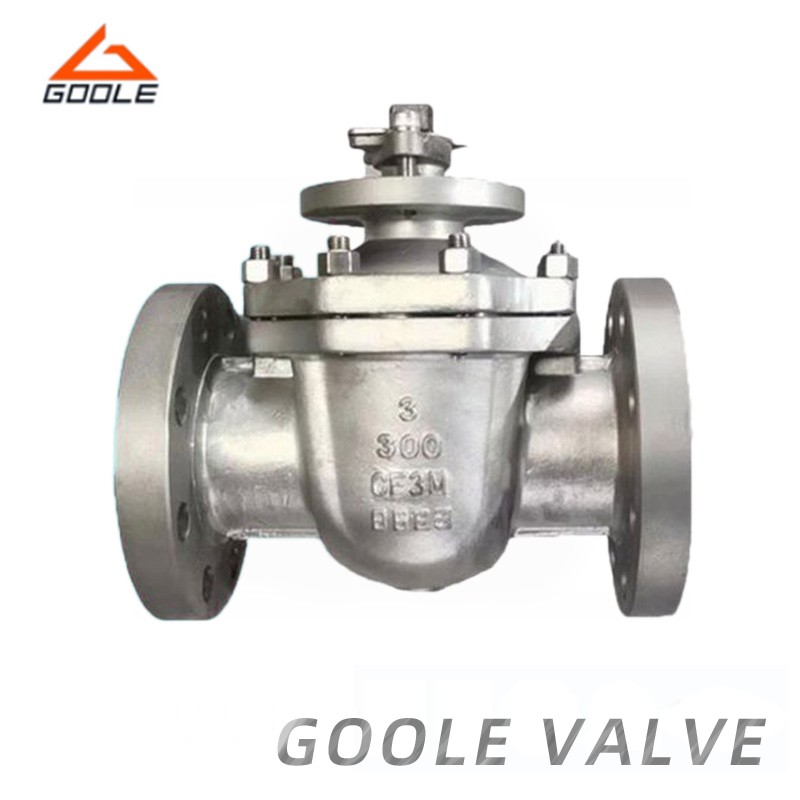

Cast carbon steel top-mounted ball valves are specifically designed for fluid isolation, featuring exquisite craftsmanship that enables precise fluid separation in various pipeline systems. The top-mounted design makes online maintenance of the valve simple, significantly reducing downtime and ensuring continuous system operation. The cast carbon steel structure demonstrates robust durability, maintaining stability even under high pressure and harsh conditions.
Valves equipped with anti-static devices can prevent the accumulation of static electricity, which is particularly important in hazardous systems. O-ring seals provide a safe and leak-proof seal, preventing liquid leakage and ensuring operational safety. Additionally, self-ventilated seats and flexible seat inserts enhance sealing performance under various pressure conditions, ensuring reliability and safety during operation.
● Anti-Static Device: Prevent the accumulation of static electricity, so as to improve the safety of operation in flammable environment.
● O-Rings: Provide reliable, leak-proof seals that ensure safe and efficient fluid isolation.
● Soft Seat Insert: Improves the sealing capacity to ensure a tight closure and reduce the possibility of liquid leakage.
| Item | Part. Name | Material |
| 1 | Bonnet | PE |
| 2 | Extension pipe | st37 |
| 3 | Body | st37 |
| 4 | Flat washer | st37 |
| 5 | Butterfly Spring | 60Si2MnA |
| 6 | Ball seat | SS202 |
| 7 | O-ring | EPDM |
| 8 | Ball washer | PTFE+20%C |
| 9 | Ball | SS304 |
| 10 | Stem washer | PTFE+20%C |
| 11 | Stem sleeve | st37 |
| 12 | Stem | SS410 |
| 13 | Stem ring | PTFE+20%C |
| 14 | Stem O-ring | FPM |
| 15 | Sleeve | st37 |
| 16 | Positioning PIN | ASTM1035 |
| 17 | Handle | st37 |
| 18 | Washer | Q235A |
| 19 | Nut | Q235A |
| 20 | Handle cap | ABS |
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Q340 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
| Q340 H-25C | 2.5 | 3.75 | 2.5 | ||
Q：How does the antistatic device improve safety?
The antistatic device helps prevent the buildup of static electricity, which can be a fire or explosion hazard, especially in flammable environments.
Q:What does the self-relieving seat do?
The self-relieving seatautomatically relieves pressure build-up behind the ball, maintaining optimal sealing performance and preventing potential leakage.
The cast carbon steel, top-mounted ball valve, engineered for fluid isolation, is specifically designed for reliable fluid control and safe containment, making it suitable for demanding industrial applications. It is equipped with advanced features, including anti-static devices, self-pressurizing seats, and soft seat inserts, which offer unparalleled performance and safety. The top-mounted design and welded connections simplify maintenance, ensuring minimal downtime. Choosing our valves provides key system solutions that ensure efficient operation, easy maintenance, and enhanced safety.
