In the chemical industry, the management of fluid flow is a complex and critical aspect of ensuring smooth, safe, and efficient production. Handling aggressive chemicals, corrosive fluids, and volatile mixtures requires equipment that can withstand harsh environments while maintaining precision control. Among the various types of valves available, three way ball valves stand out as highly versatile and reliable components that meet these demanding requirements.
Three way ball valves are essential in chemical plants due to their ability to control flow direction, switch between multiple pipelines, and even blend fluids—all within a compact and durable design. Their adaptability makes them suitable for a wide range of process conditions and system configurations.
A three way ball valve is characterized by three connection ports integrated into a single valve body. The internal mechanism features a hollow ball with either an L-shaped or T-shaped bore. By rotating the ball 90 degrees, the valve can direct flow through different ports or combine flows from multiple inputs.
L-Port Design: The L-shaped passage connects two ports at a time, enabling flow diversion from a common inlet to one of two outlets or vice versa. It is commonly used for switching flow paths.
T-Port Design: The T-shaped passage connects any two or all three ports depending on the valve position, allowing mixing or splitting of fluid streams.

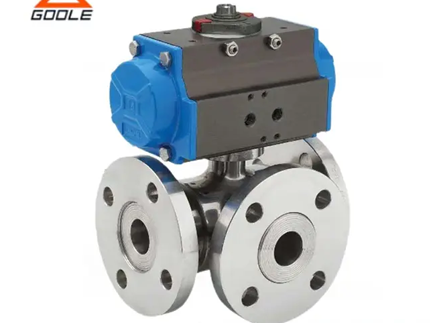

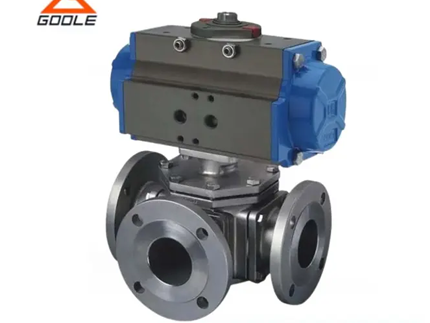

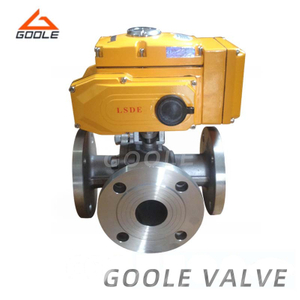

The valve is actuated manually with a lever or automatically via pneumatic or electric actuators for precise control. This makes three way ball valves particularly suitable for integration into automated chemical process systems.
Chemical manufacturing processes often require fluid streams to be redirected between different pipelines or units. For instance, during different production phases or when switching between product types, flow diversion is essential.
Process Flexibility: Three way ball valves allow operators to switch between different chemical feedstocks or direct the flow to alternate reactors, reducing the need for multiple valves and simplifying piping layouts.
Operational Continuity: In maintenance or emergency situations, flow can be quickly diverted to bypass faulty equipment, minimizing downtime and avoiding costly shutdowns.
For example, a chemical plant producing multiple grades of solvents may use three way ball valves to switch the feedstock line to different distillation columns without interruption.
Many chemical reactions require precise mixing of multiple fluid components. Three way ball valves enable controlled blending of chemicals by allowing two input streams to flow simultaneously into a common outlet.
Accurate Proportion Control: Adjusting valve positions can regulate the flow ratio of reactants, critical for achieving desired product specifications and reaction kinetics.
Reduced Cross-Contamination: The compact valve design reduces dead volumes and areas where residue can accumulate, minimizing contamination risk during batch changes.
An example application is the production of specialty coatings where solvents, resins, and additives are mixed inline using T-port three way ball valves before being pumped to the application line.
Safety is a paramount concern in chemical plants, especially when dealing with hazardous or toxic substances. Three way ball valves provide critical safety functions such as:
Emergency Bypass: In case of a blockage or failure in a downstream process unit, flow can be diverted automatically or manually to a bypass line, protecting equipment from overpressure or thermal damage.
Leak Prevention: High-quality ball valves with advanced sealing technologies minimize leakage risks, crucial for environmental compliance and worker safety.
For example, in an acid production plant, three way ball valves are often installed to divert flow away from sensitive equipment during upset conditions, ensuring plant safety and product quality.
Maintaining clean pipelines is vital in the chemical industry to avoid contamination and ensure product integrity.
Clean-in-Place (CIP) Systems: Automated cleaning cycles are commonly integrated with three way ball valves, which switch flow between production fluids and cleaning agents without disassembling the piping.
Reduced Downtime: Efficient switching between cleaning and operational fluids allows frequent sanitation without lengthy shutdowns, improving productivity.
This application is particularly common in pharmaceutical or fine chemical manufacturing, where product purity is tightly controlled.
The trend toward digitalization and automation in the chemical industry increases demand for valves that can be controlled remotely and integrated into centralized control systems.
Remote Actuation: Pneumatic or electric actuators on three way ball valves enable precise and fast switching of flow paths as part of automated process sequences.
Data Integration: Feedback sensors on valve position can be connected to SCADA or DCS systems for real-time monitoring, fault detection, and advanced process control.
For instance, a chemical reactor system may use automated three way ball valves to optimize feed ratios and adjust process parameters dynamically based on sensor inputs.
Chemical fluids can be extremely aggressive, so valve materials must resist corrosion, erosion, and chemical attack.
Materials: Stainless steel (316, 304), Hastelloy, and other alloys are common for valve bodies. Seats and seals often use PTFE, FKM, or PEEK for chemical resistance.
Longevity: Proper material selection reduces valve failure and maintenance costs.
Three way ball valves combine functions of multiple valves, reducing system complexity.
Smaller footprint and fewer connections lower the risk of leaks and make system layout easier.
Simple internal design facilitates quick maintenance.
Reliable sealing and low torque requirements reduce wear.
Long service life under harsh chemical conditions minimizes downtime.
Assess the chemical composition, concentration, temperature, and pressure of process fluids.
Cross-reference valve materials with chemical compatibility charts.
Consider elastomeric seals that resist swelling or degradation.
Match valve ratings with system design pressures and temperature ranges.
For extreme conditions, consider valves with reinforced bodies or specialized seals.
Choose L-port for flow diversion and T-port for mixing.
Verify thread types (NPT, BSP), flange standards (ANSI, DIN), and sizes.
Ensure actuator compatibility if automation is required.
In the demanding environment of chemical processing, three way ball valves are invaluable for their versatility, durability, and ease of operation. They enable complex flow configurations such as diversion, mixing, safety bypass, and cleaning cycle management, all within a single, compact valve body.
Their adaptability to automation and compatibility with aggressive chemicals further cement their role in modern chemical plants. By carefully selecting the appropriate valve design, material, and actuator options, chemical engineers can optimize process efficiency, enhance safety, and reduce operational costs.
For those seeking dependable three way ball valves tailored to chemical industry needs, consulting with experienced manufacturers like Valve Technology Co., Ltd. offers access to professional guidance and high-quality valve solutions designed for optimal performance in harsh industrial environments.
